Home >> Ford >> 2003 >> Excursion 4WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Electronic Automatic Temperature Control Module

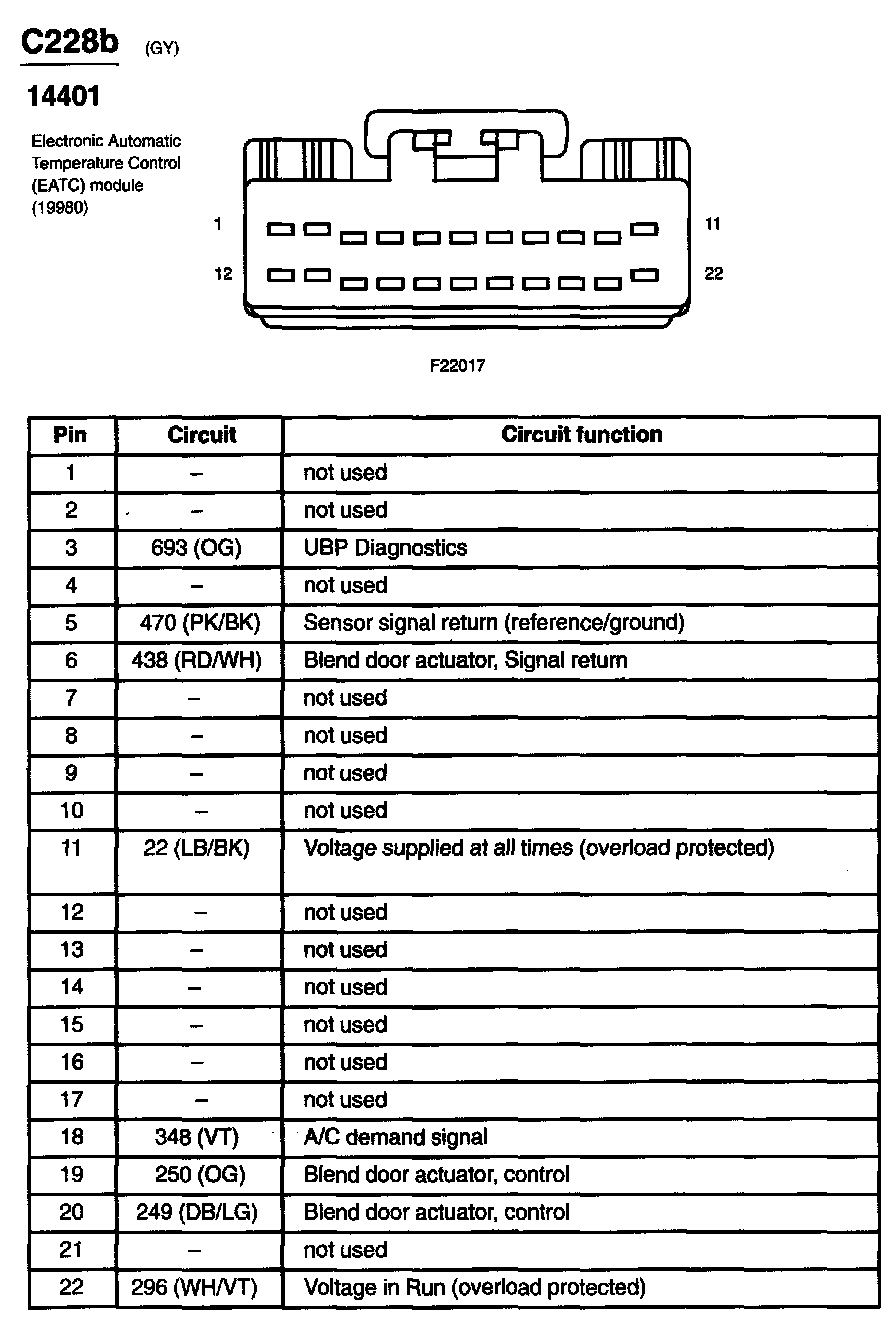

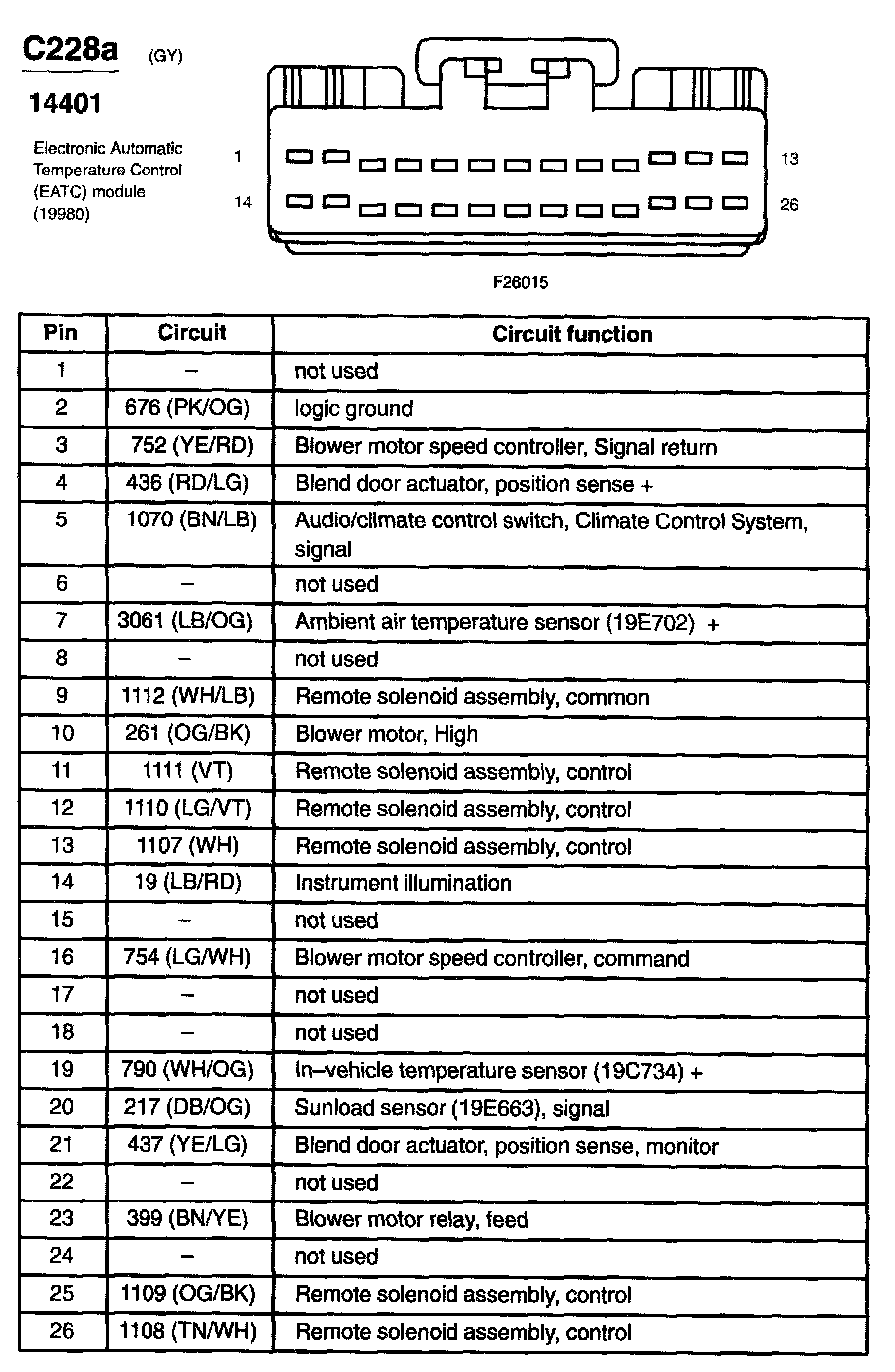

Electronic Automatic Temperature Control Module
