Test J

PINPOINT TEST J: THE KEYLESS ENTRY KEYPAD ILLUMINATION IS INOPERATIVE

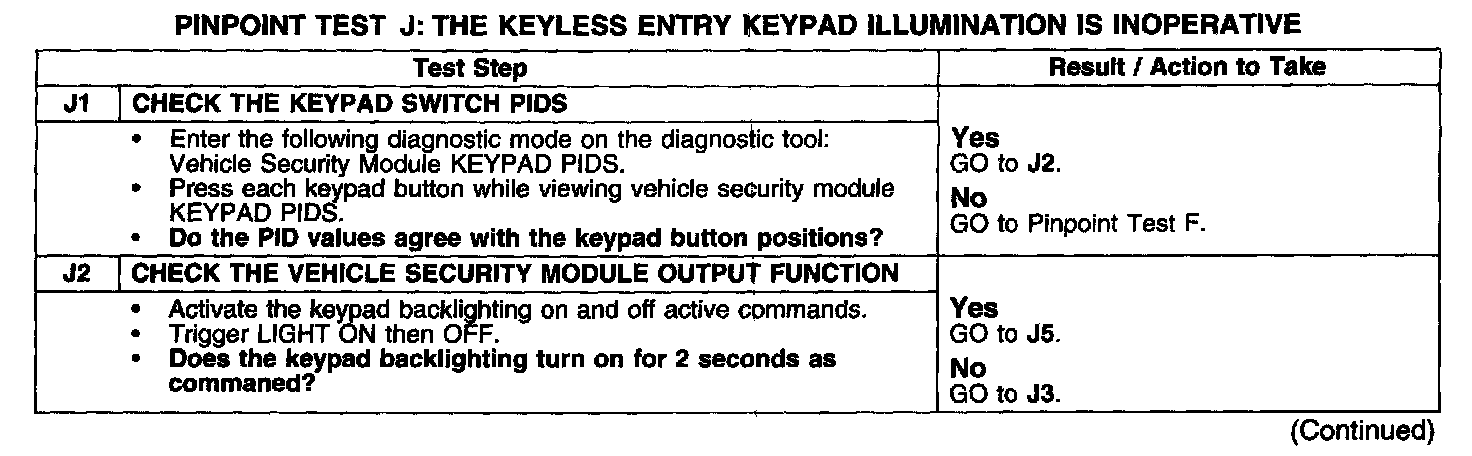

Test J1-J2:

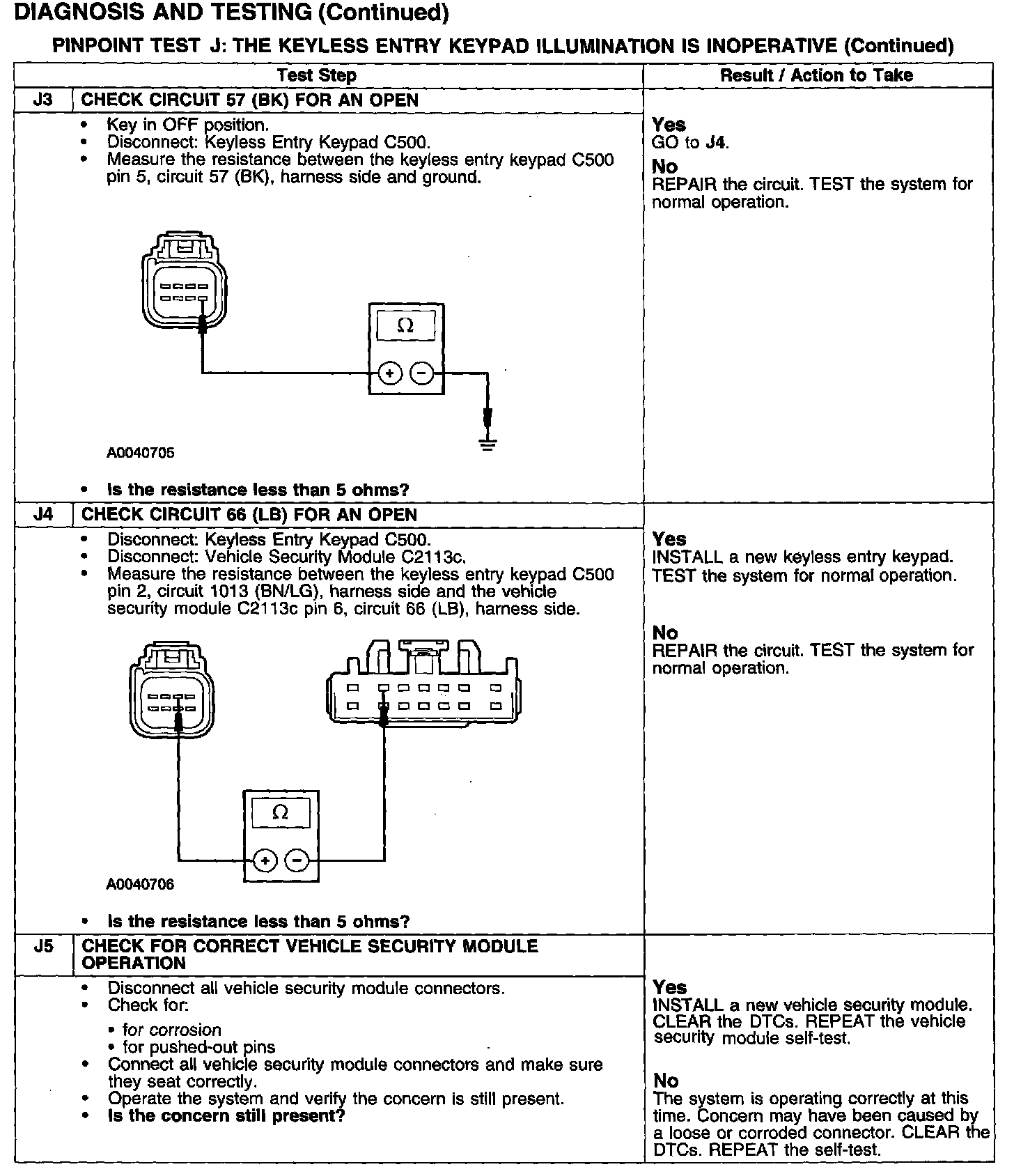

Test J3-J5:
