Test I

PINPOINT TEST I: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

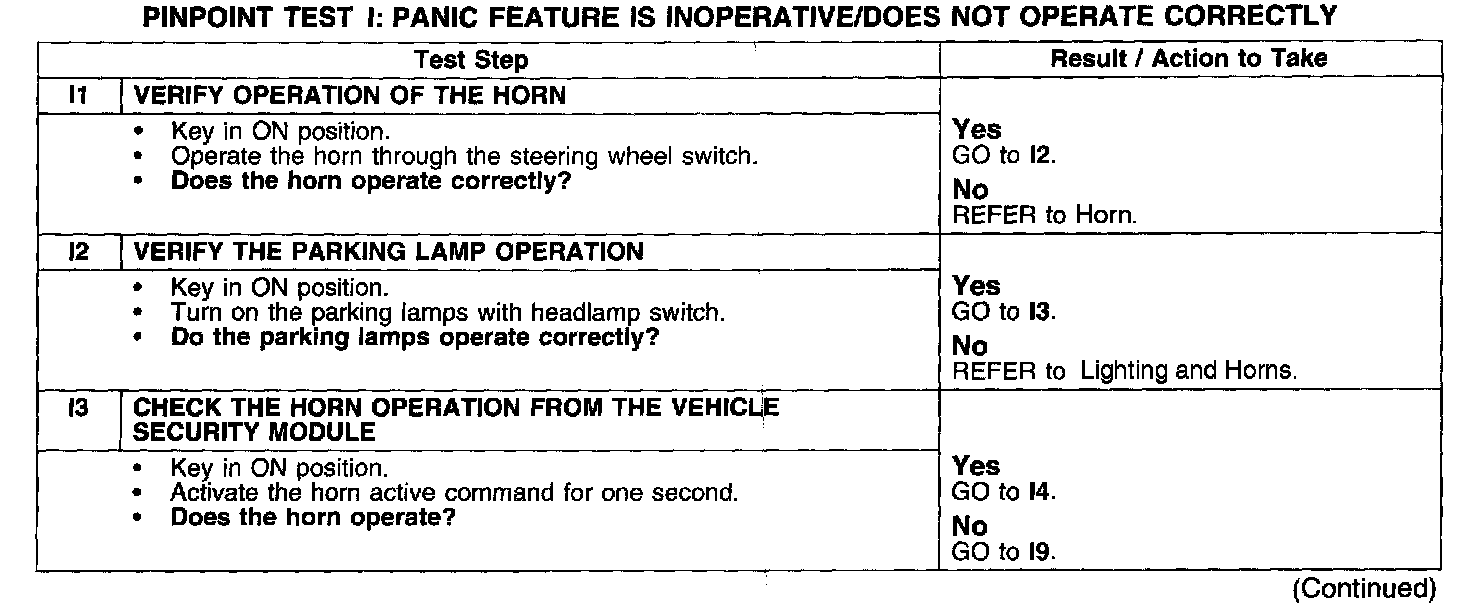

Test I1-I3:

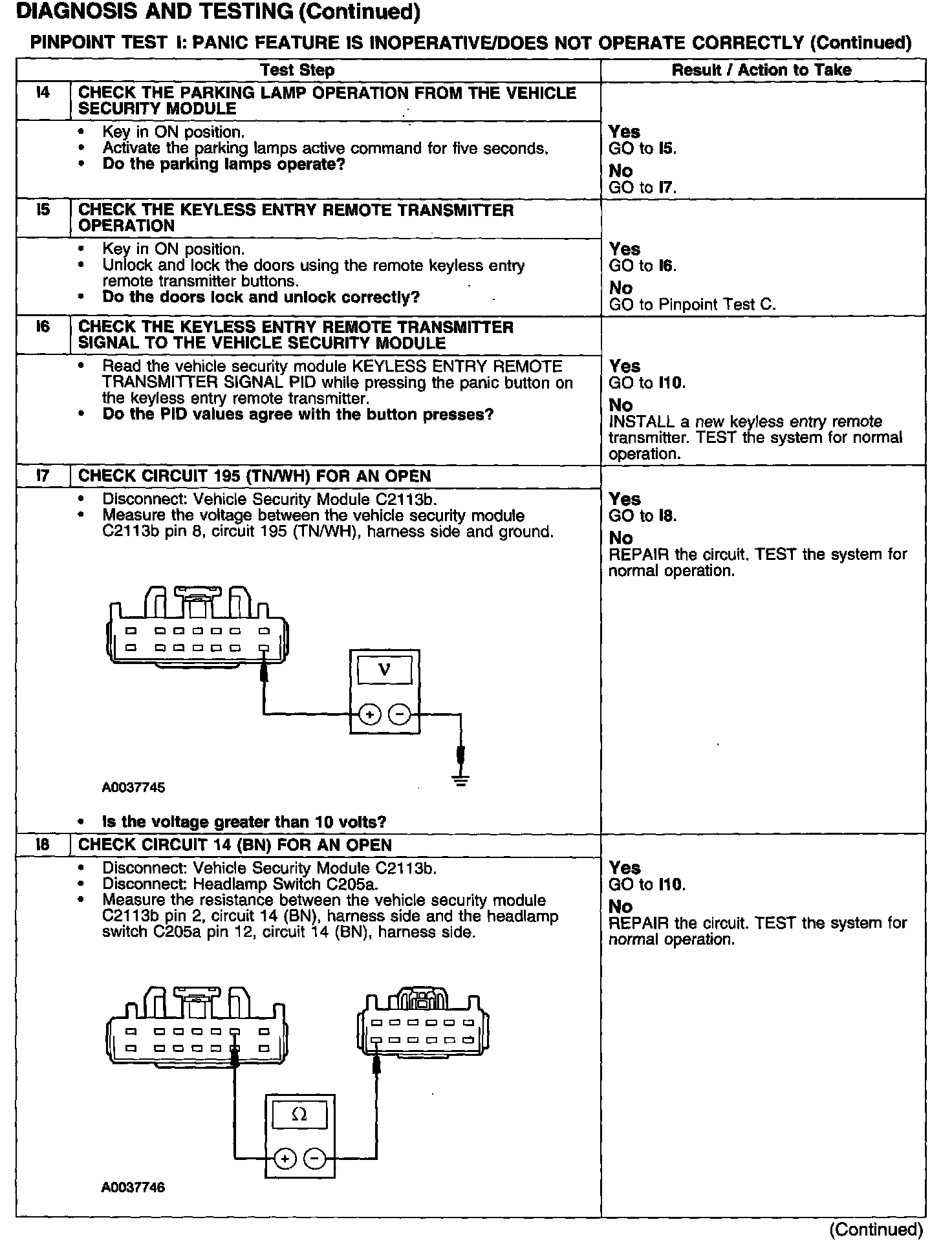

Test I4-I8:

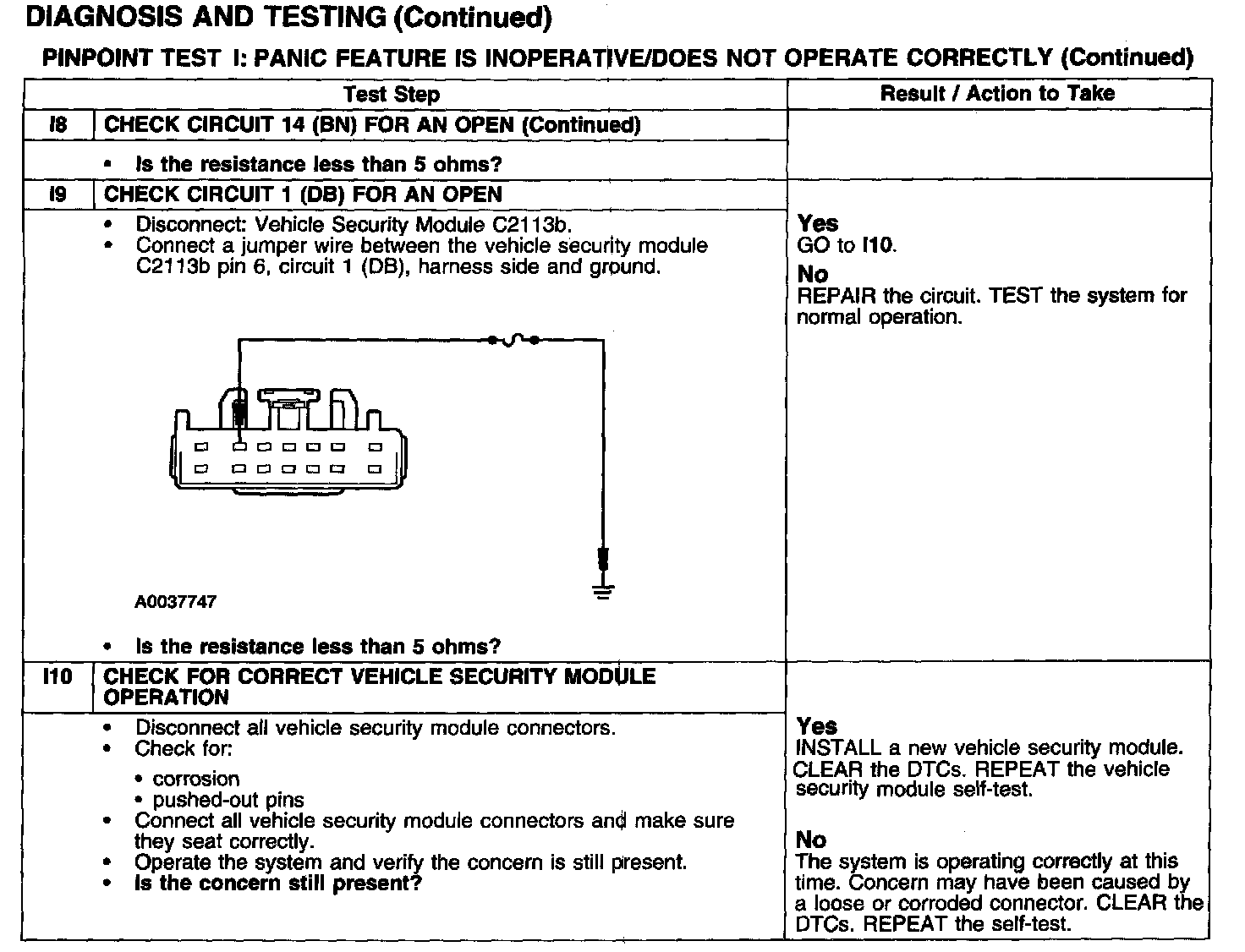

Test I8-I10:
