Home >> Ford >> 2003 >> Excursion 4WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Module Controlled >> Test G

Test G

PINPOINT TEST G: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE TRANSMITTER

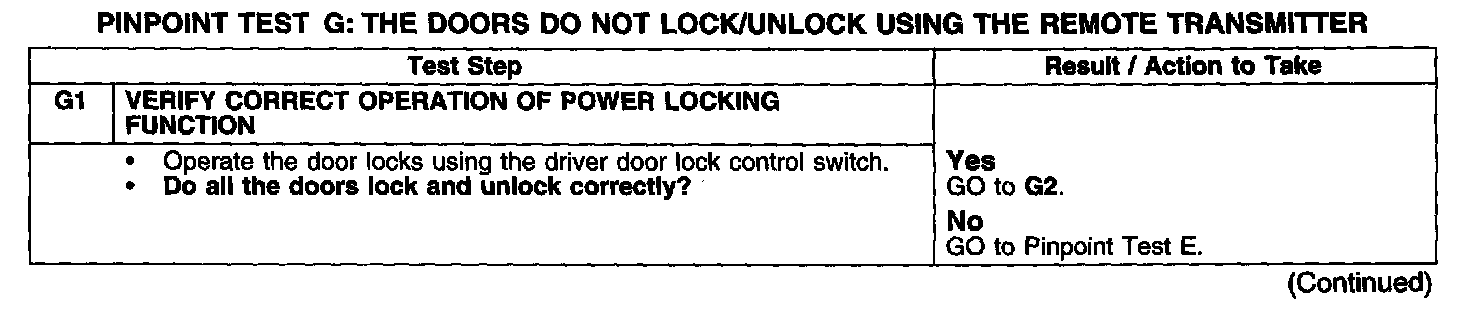

Test G1:

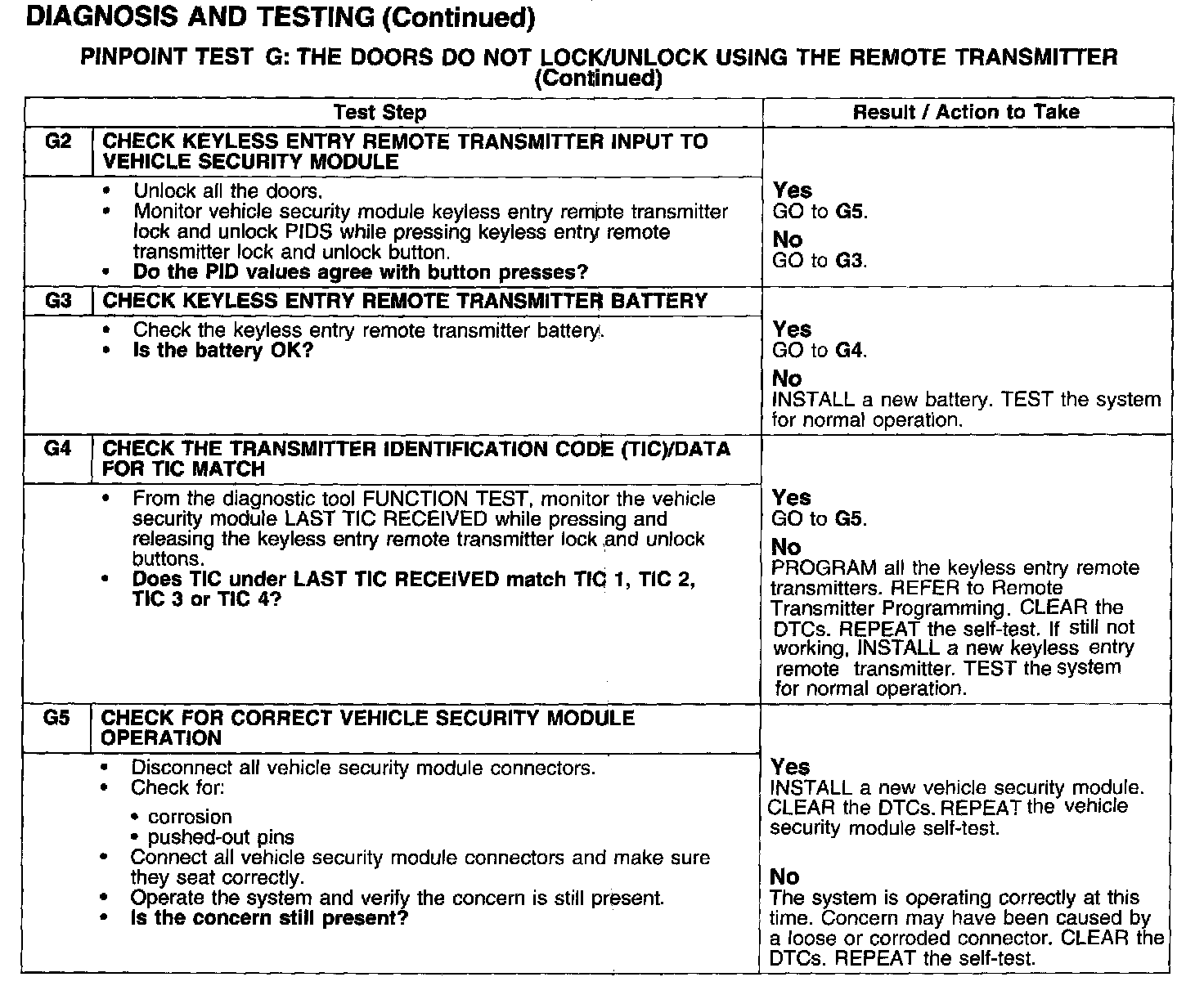

Test G2-G5:
