Test E

PINPOINT TEST E: A SINGLE/MORE THAN ONE DOOR LOCK IS INOPERATIVE - POWER LOCKING

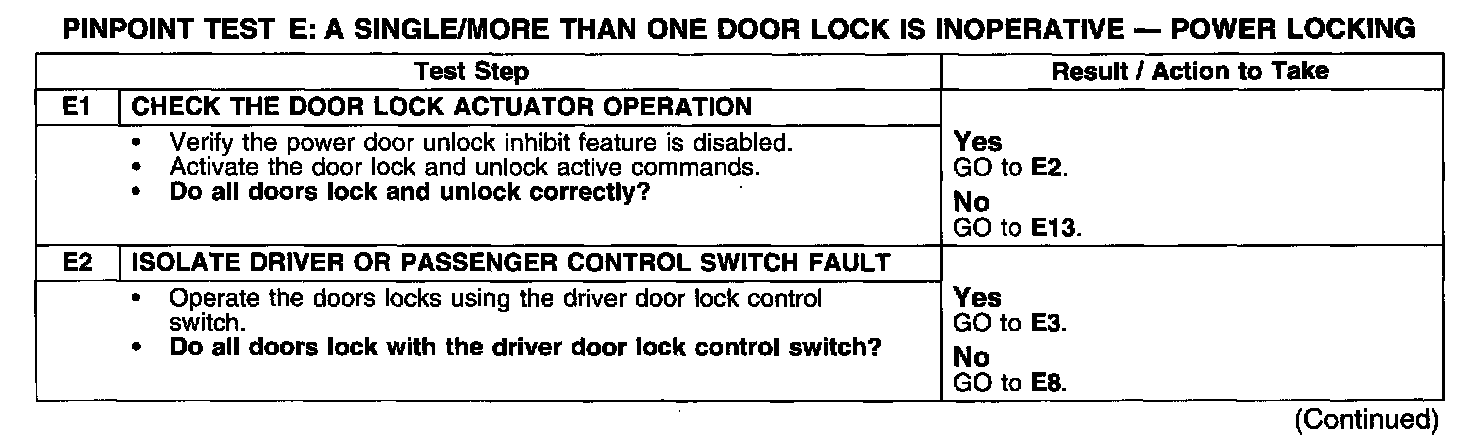

Test E1-E2:

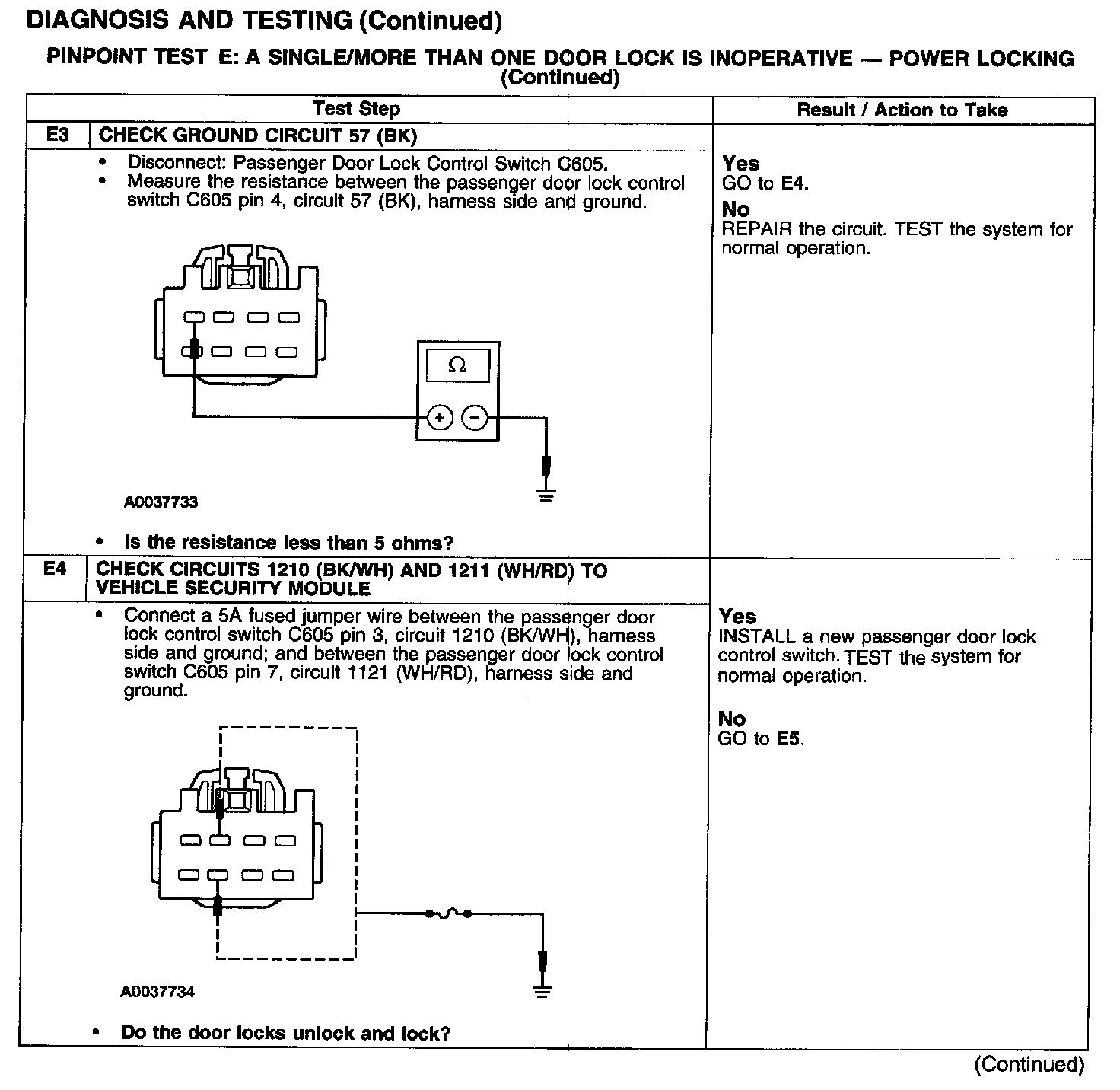

Test E3-E4:

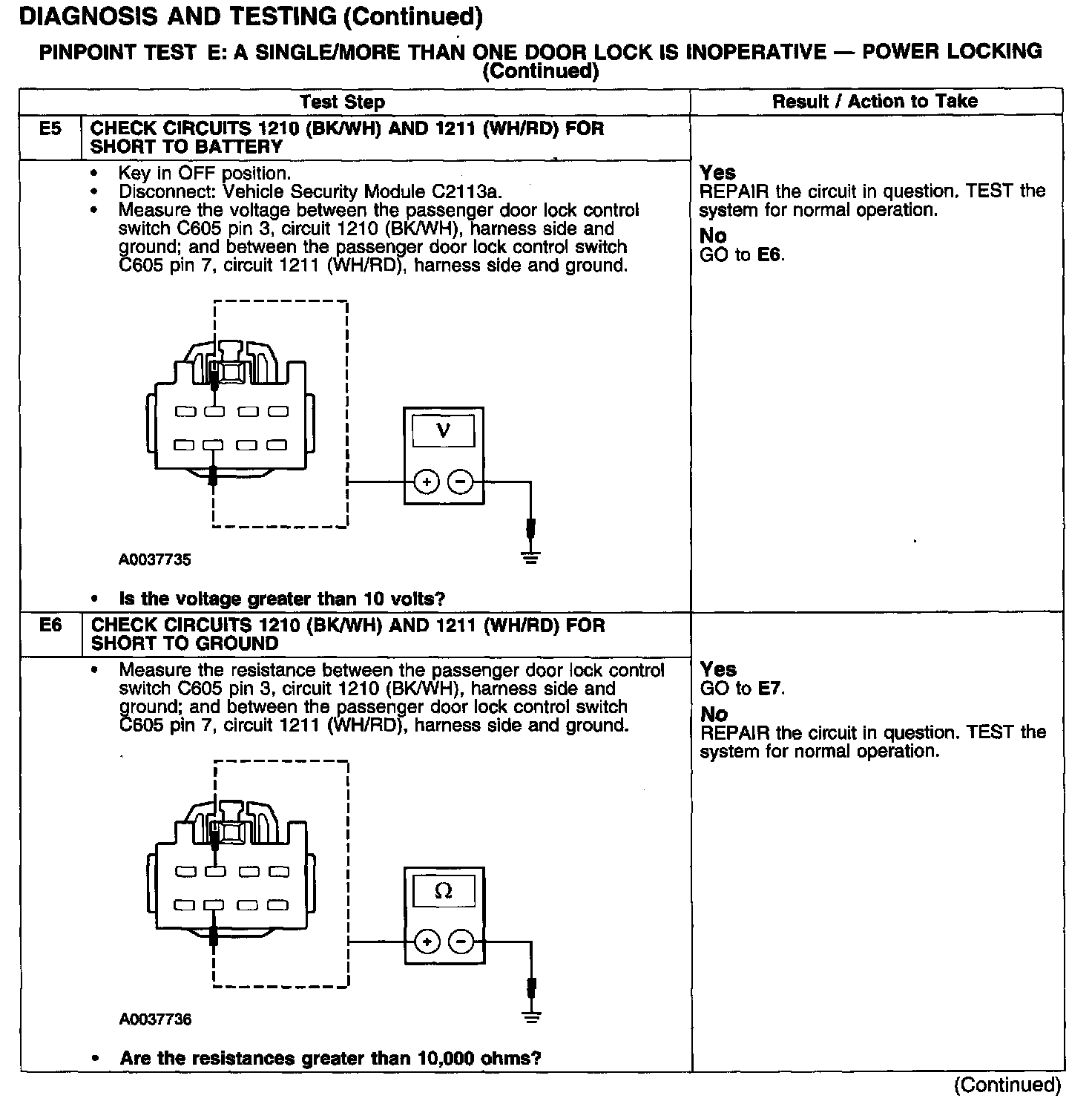

Test E5-E6:

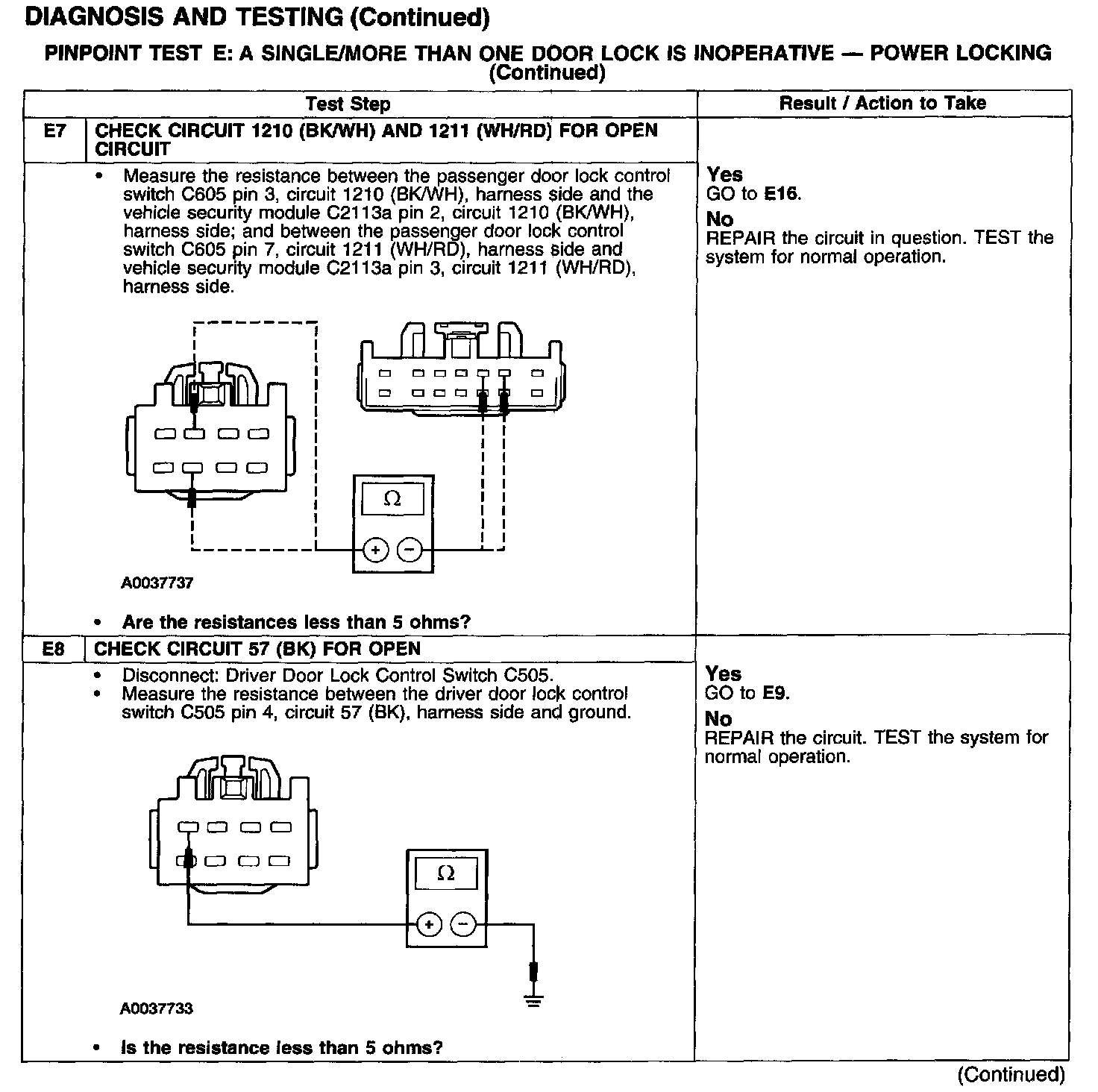

Test E7-E8:

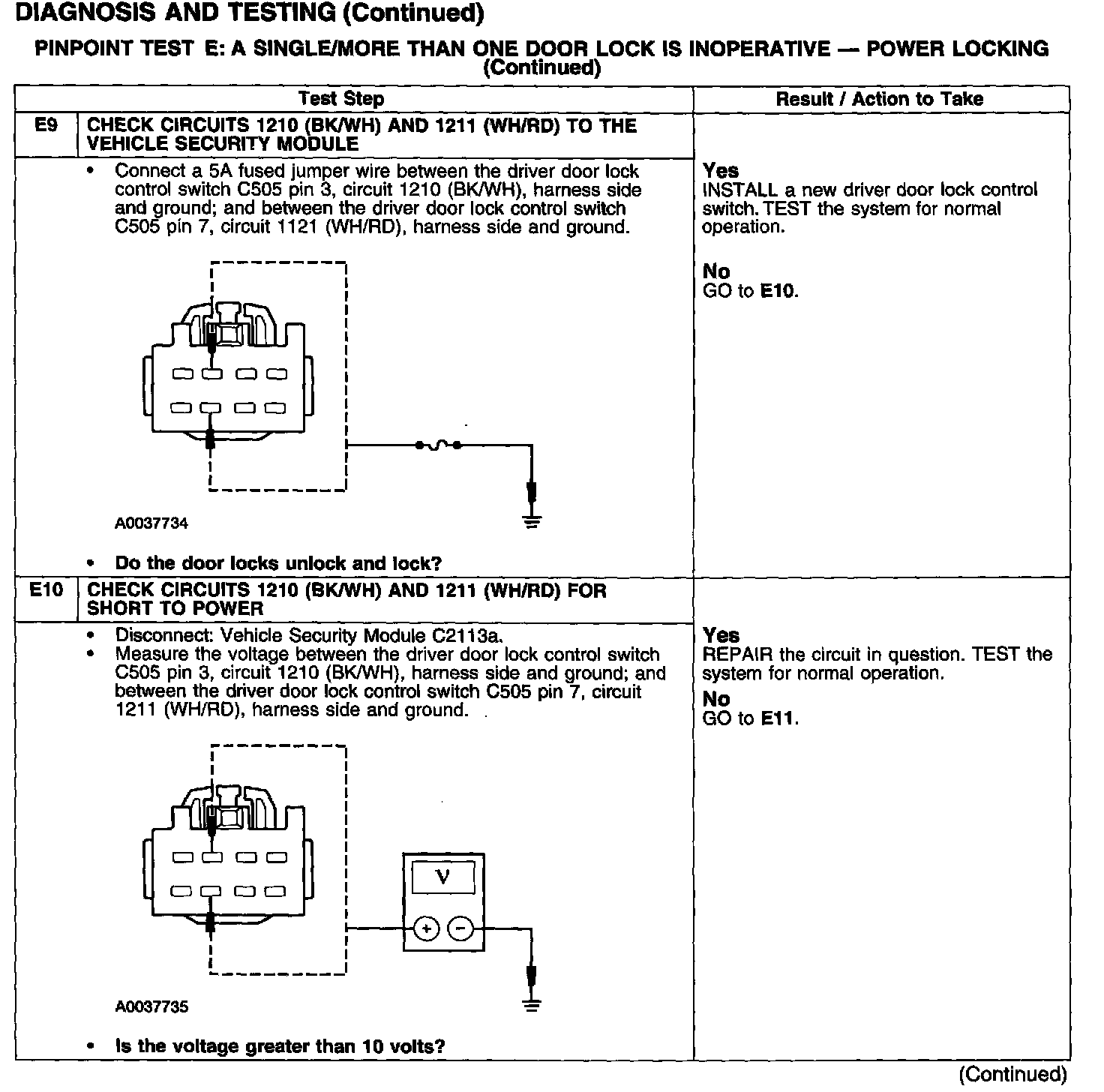

Test E9-E10:

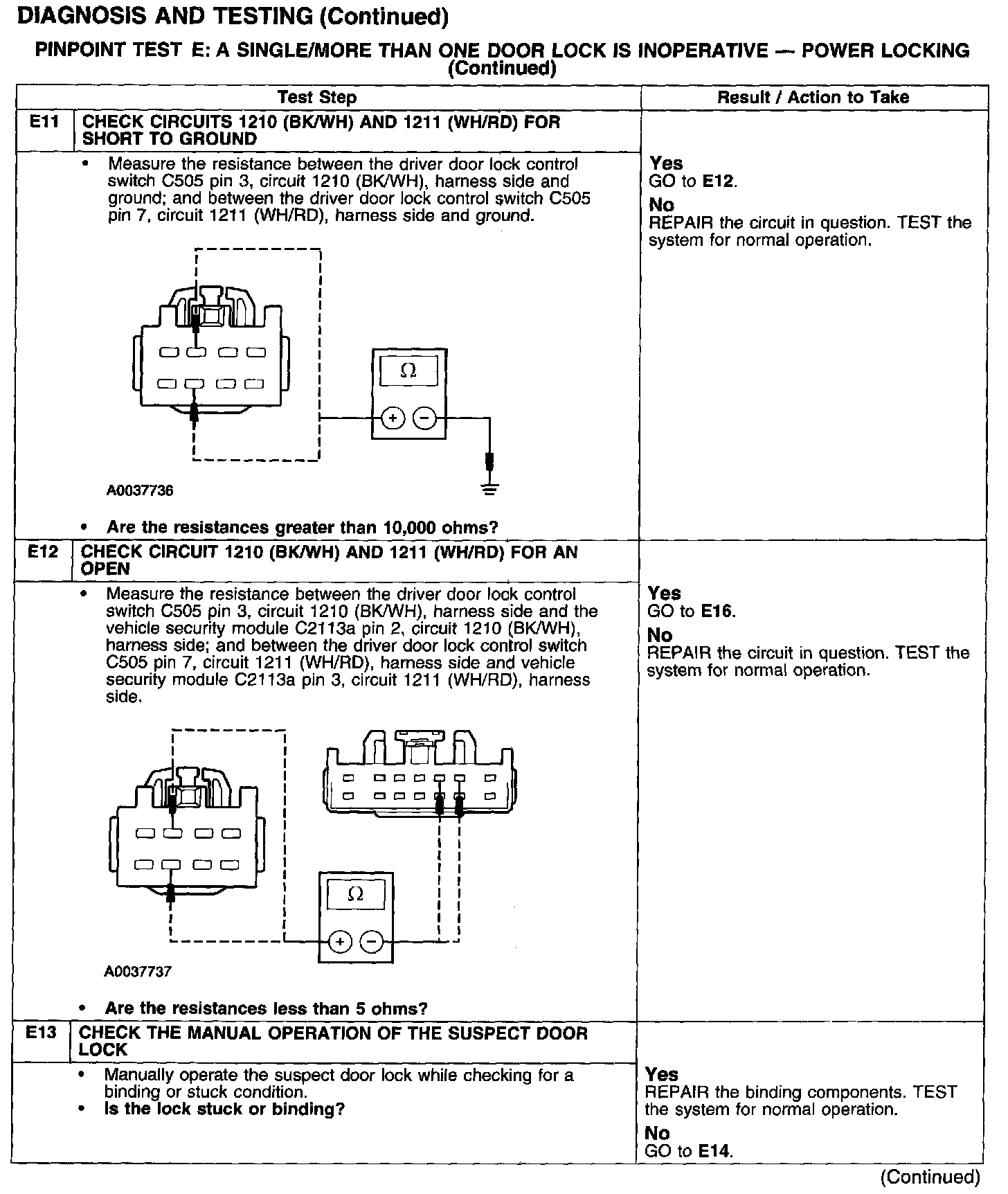

Test E11-E13:

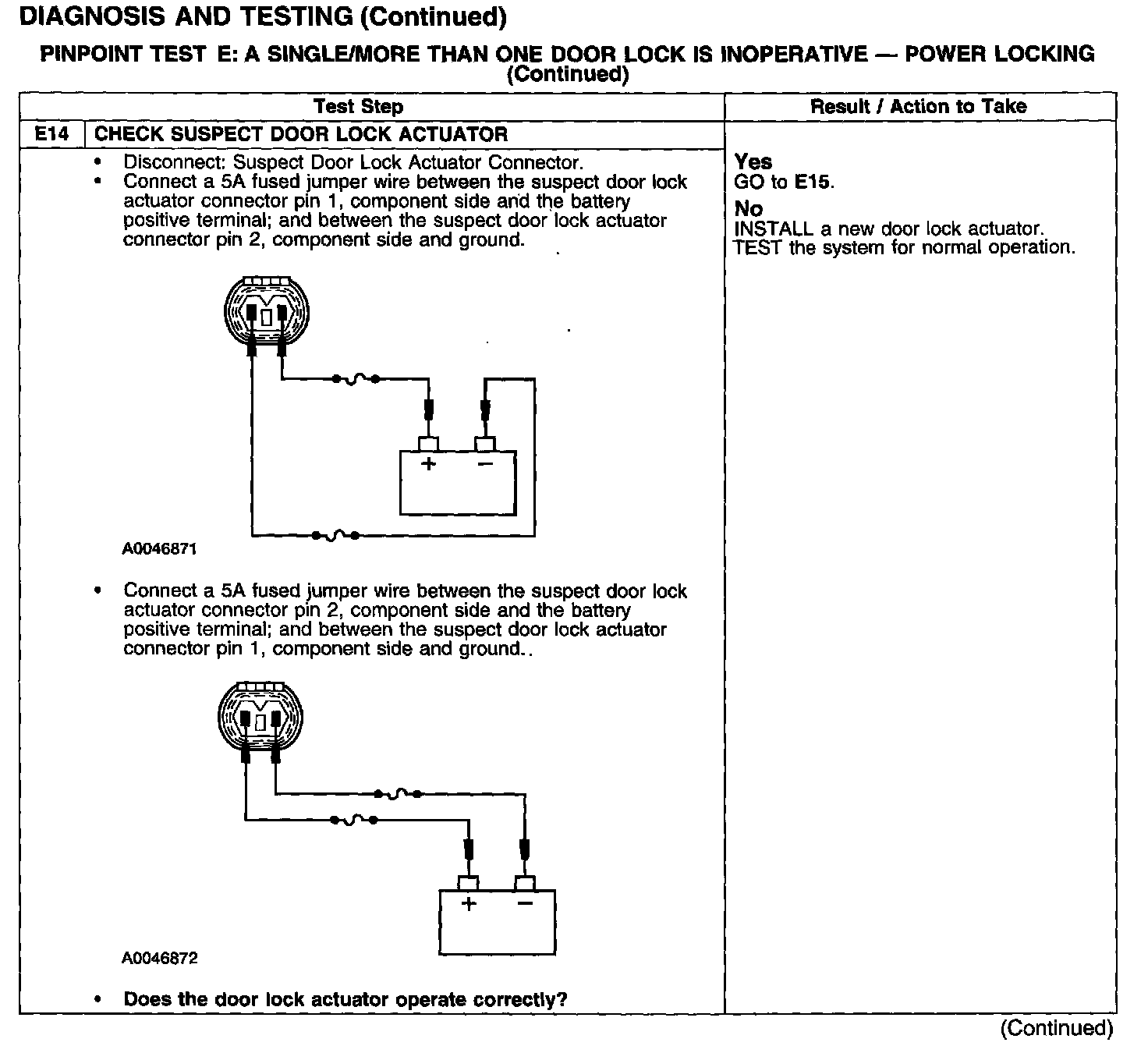

Test E14:

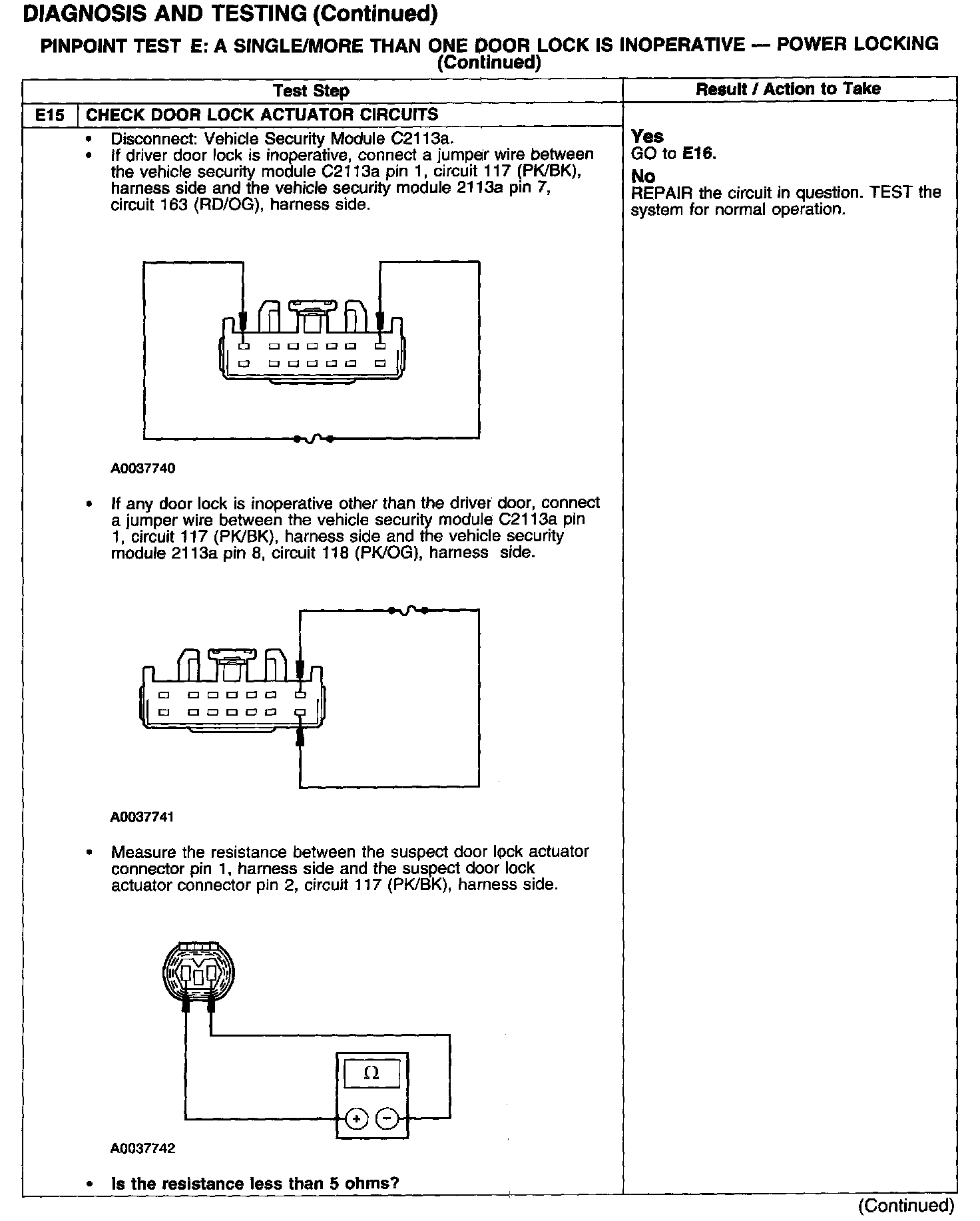

Test E15:

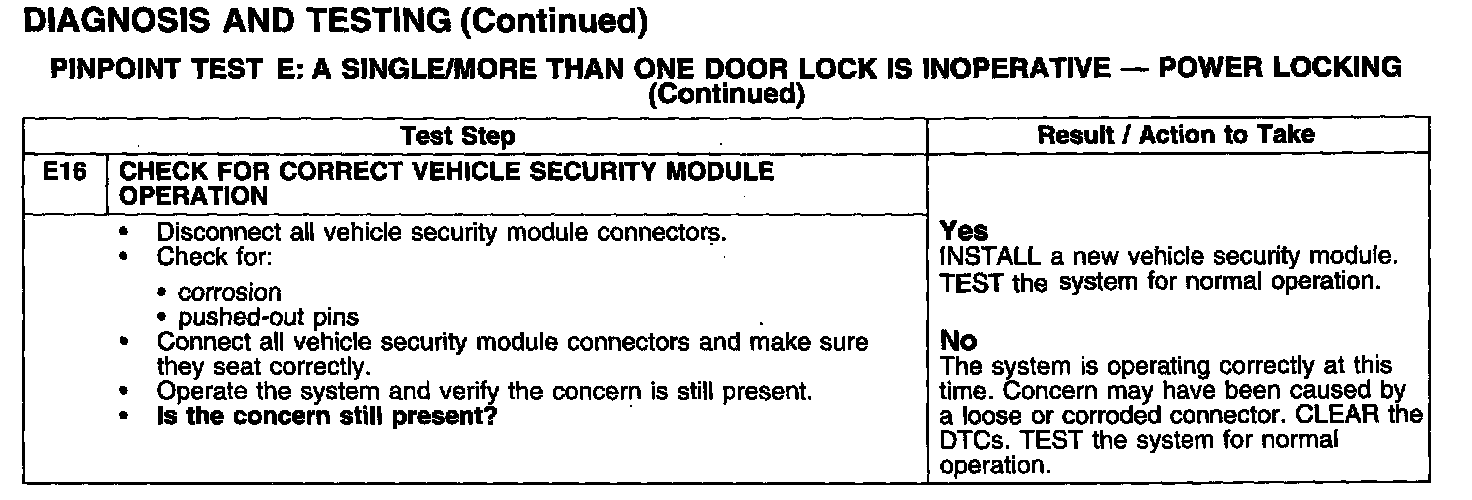

Test E16:
