lemon-mirror:
Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test E: No Communication W/EATC Module

Test E: No Communication W/EATC Module

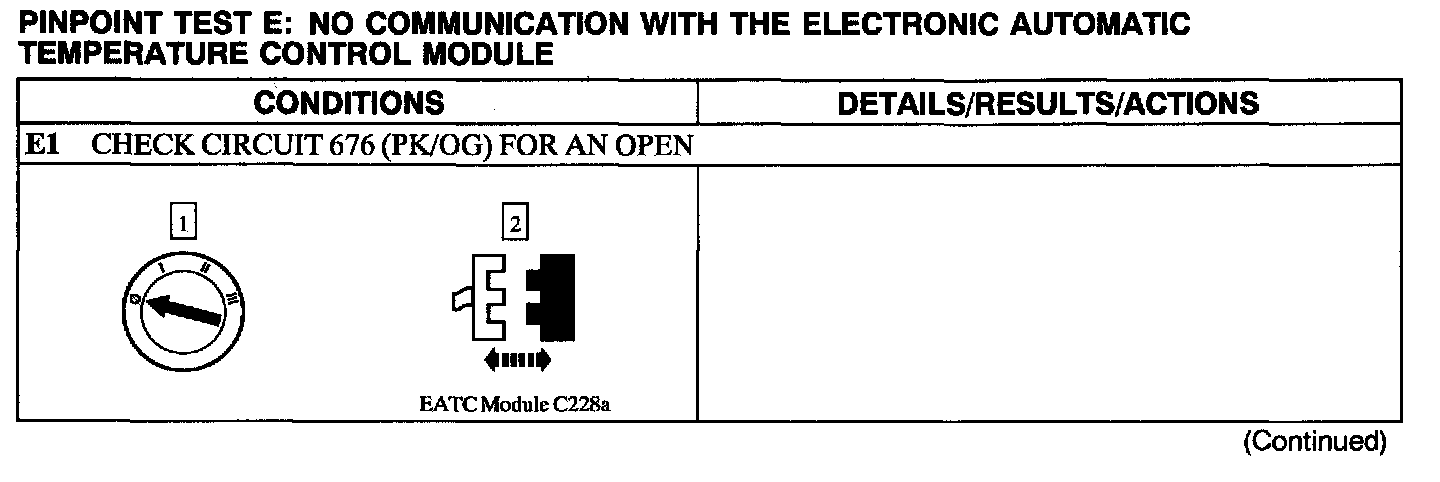

E1:

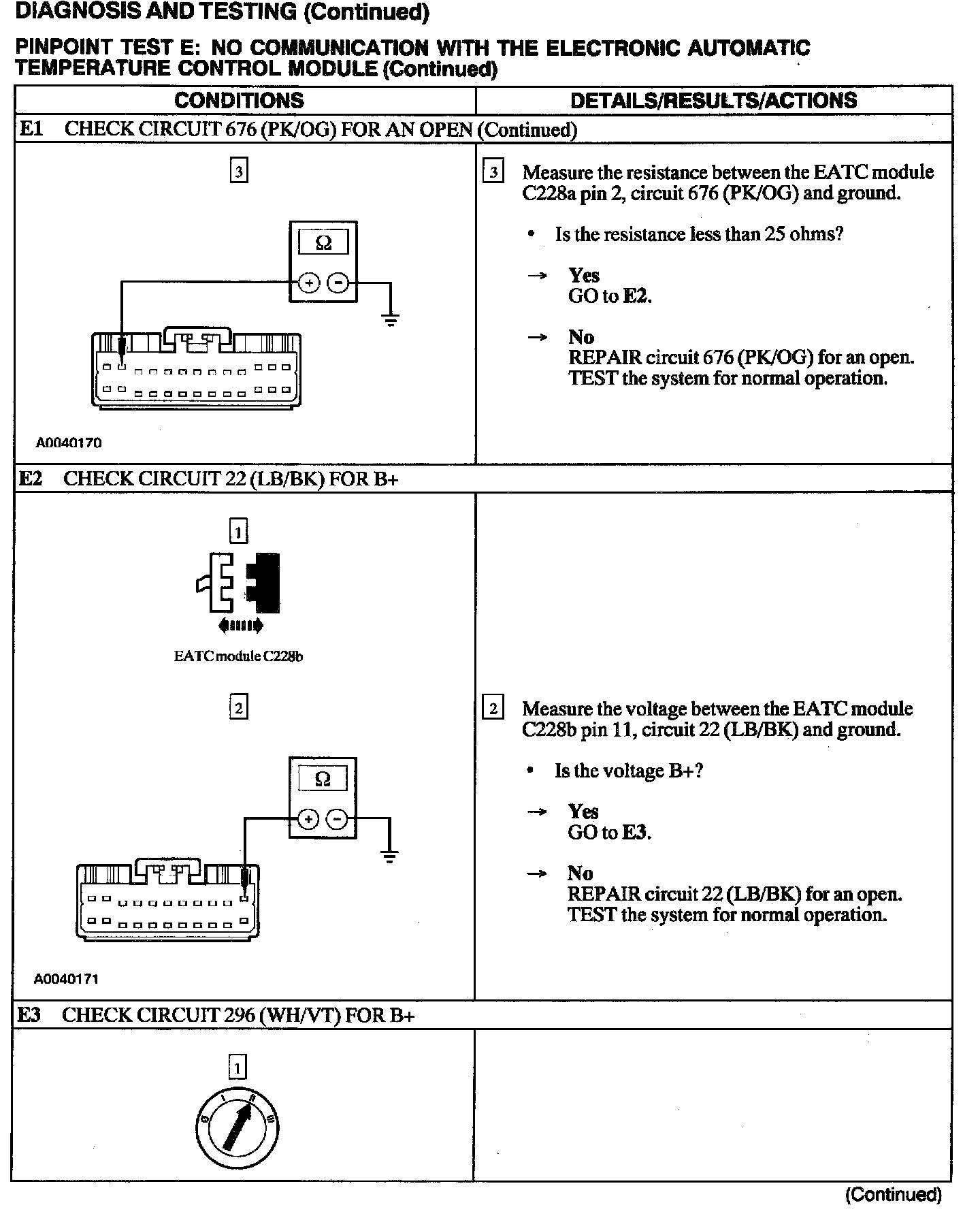

E1 - E3:

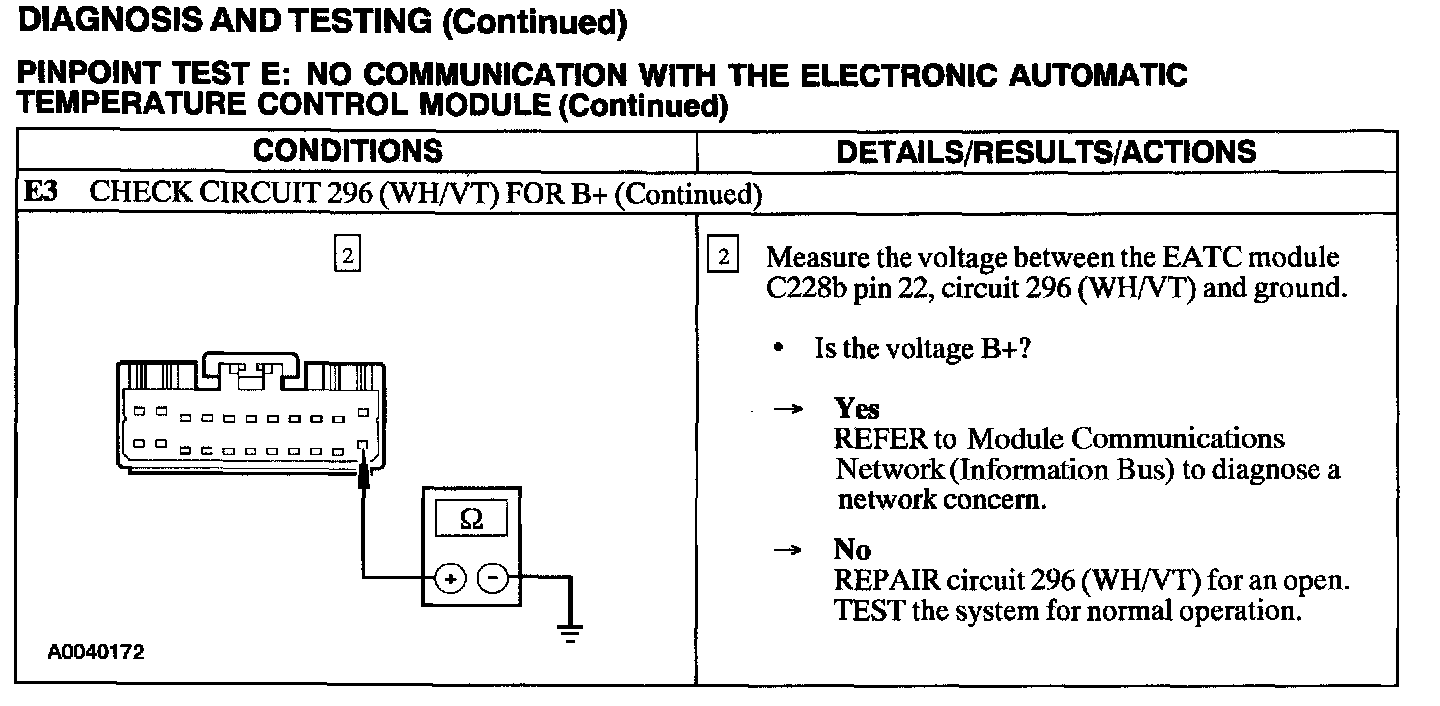

E3:
