Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows

Windows

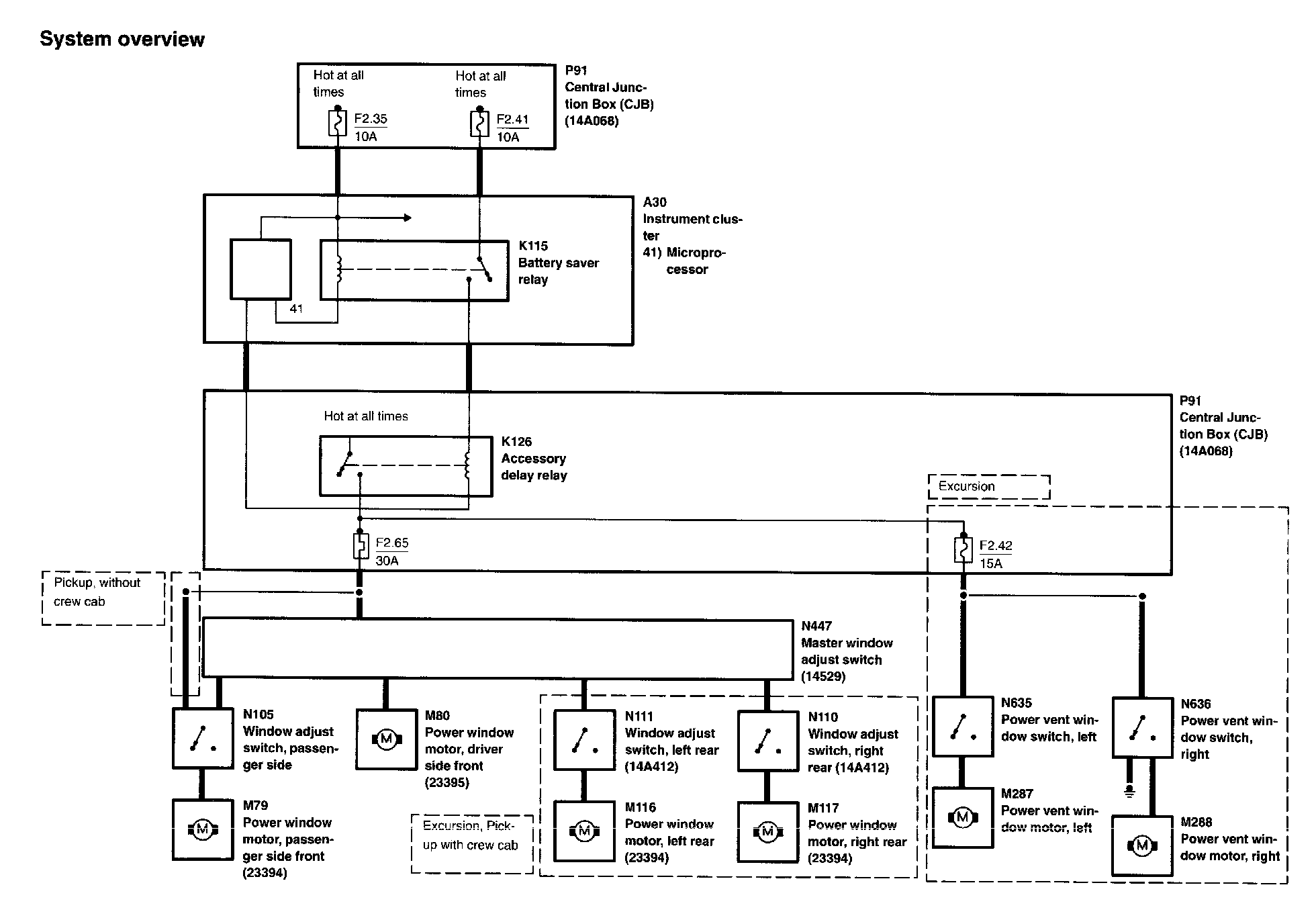

Diagram 100-1:

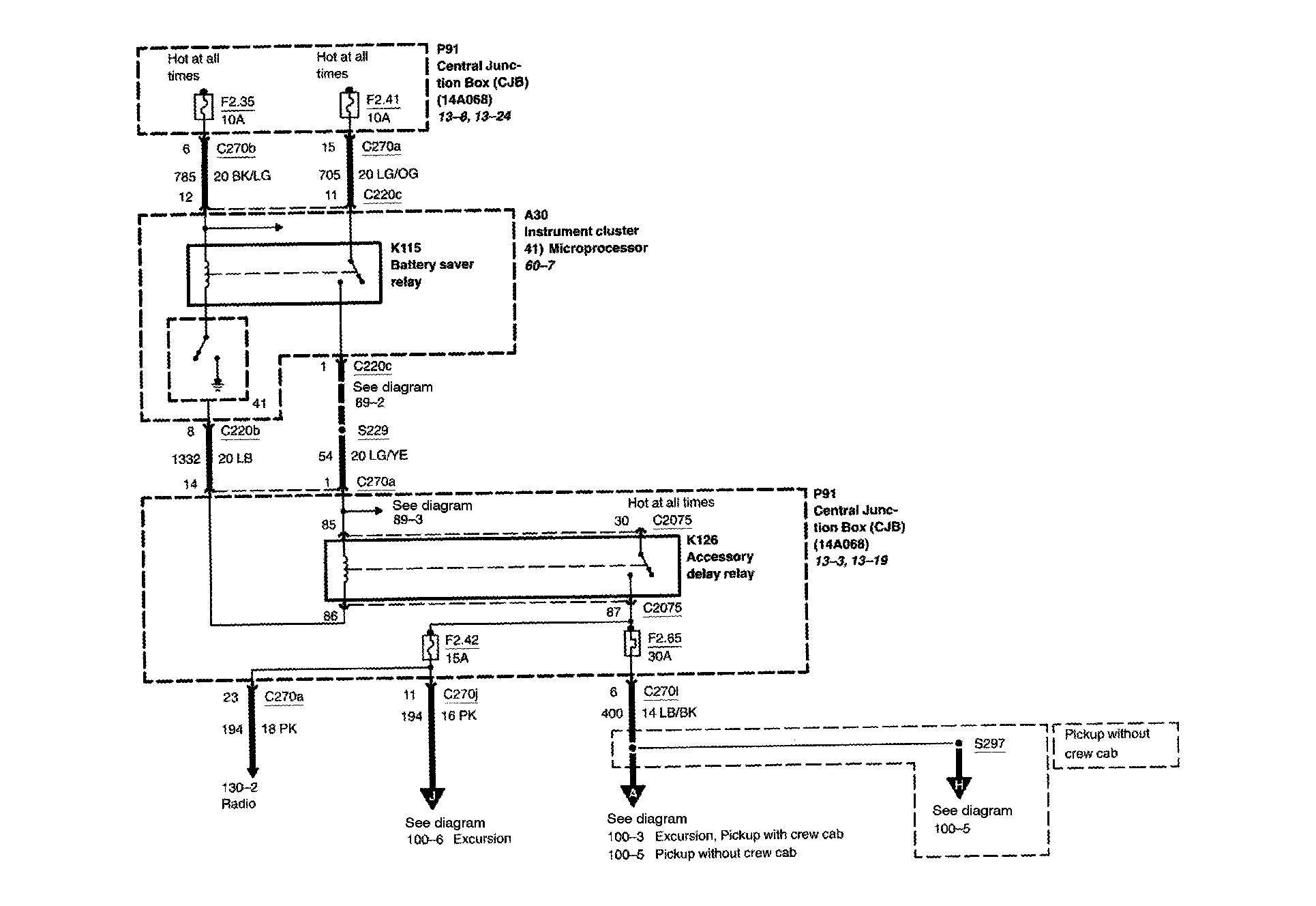

Diagram 100-2:

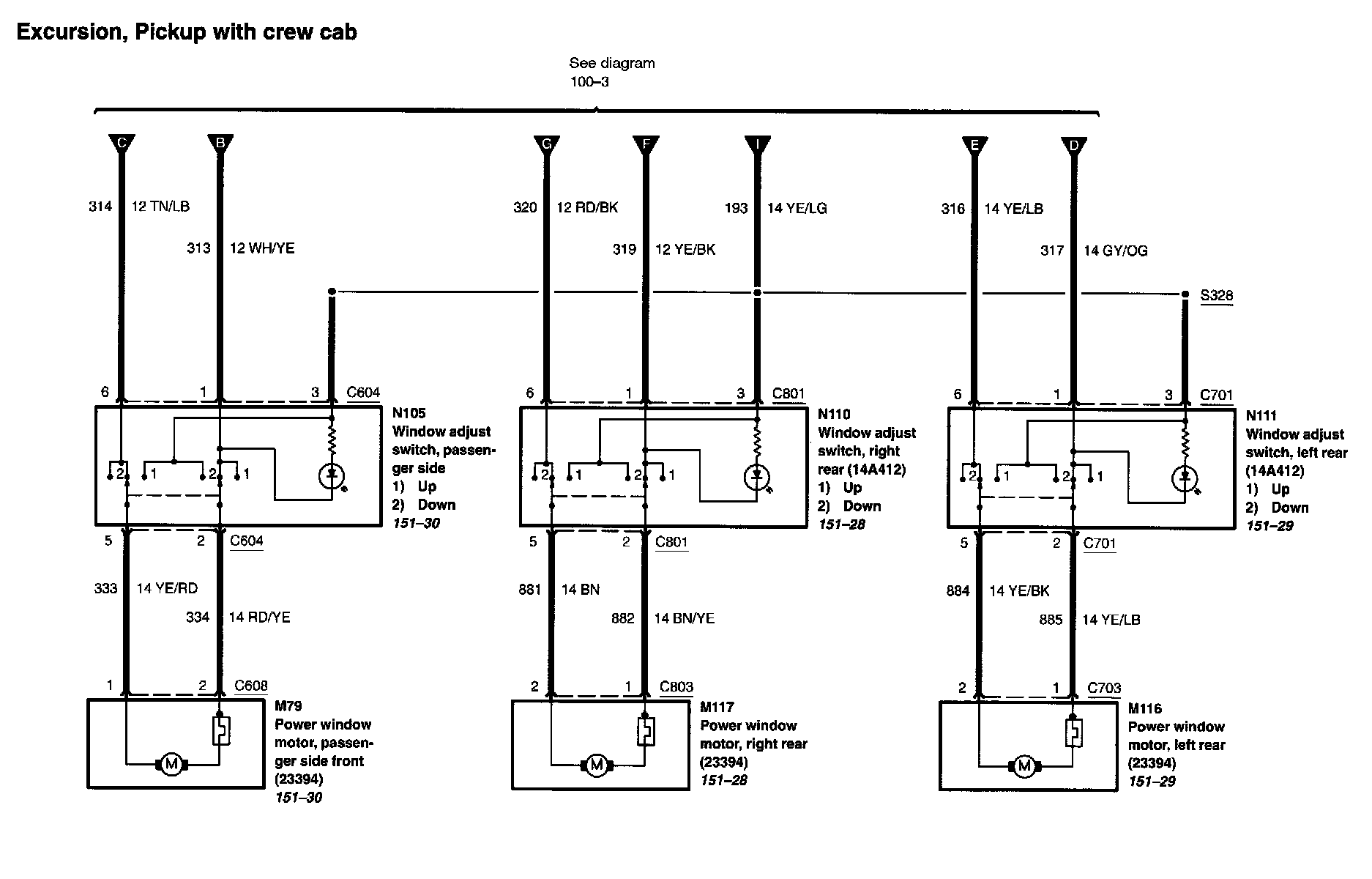

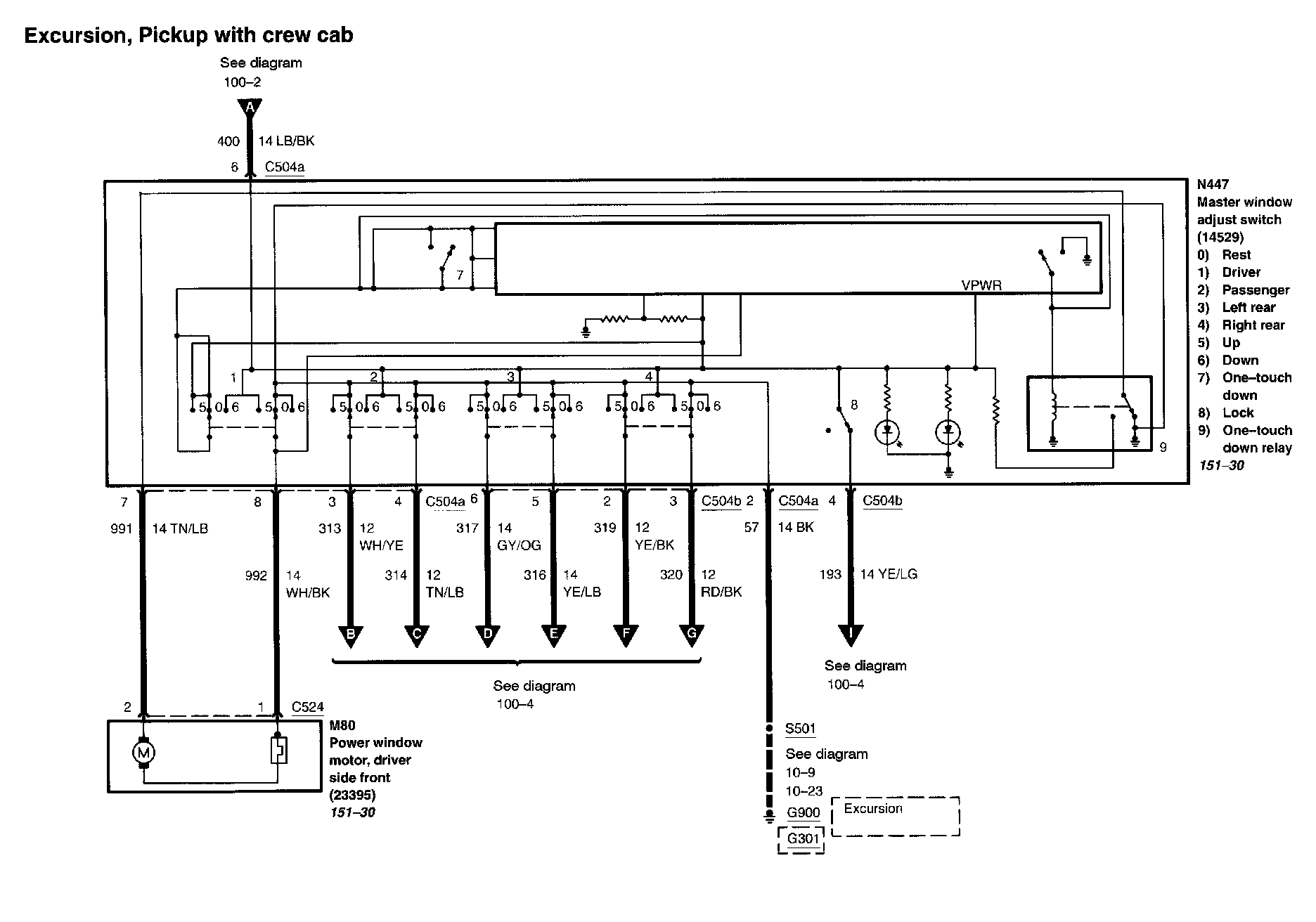

Diagram 100-3:

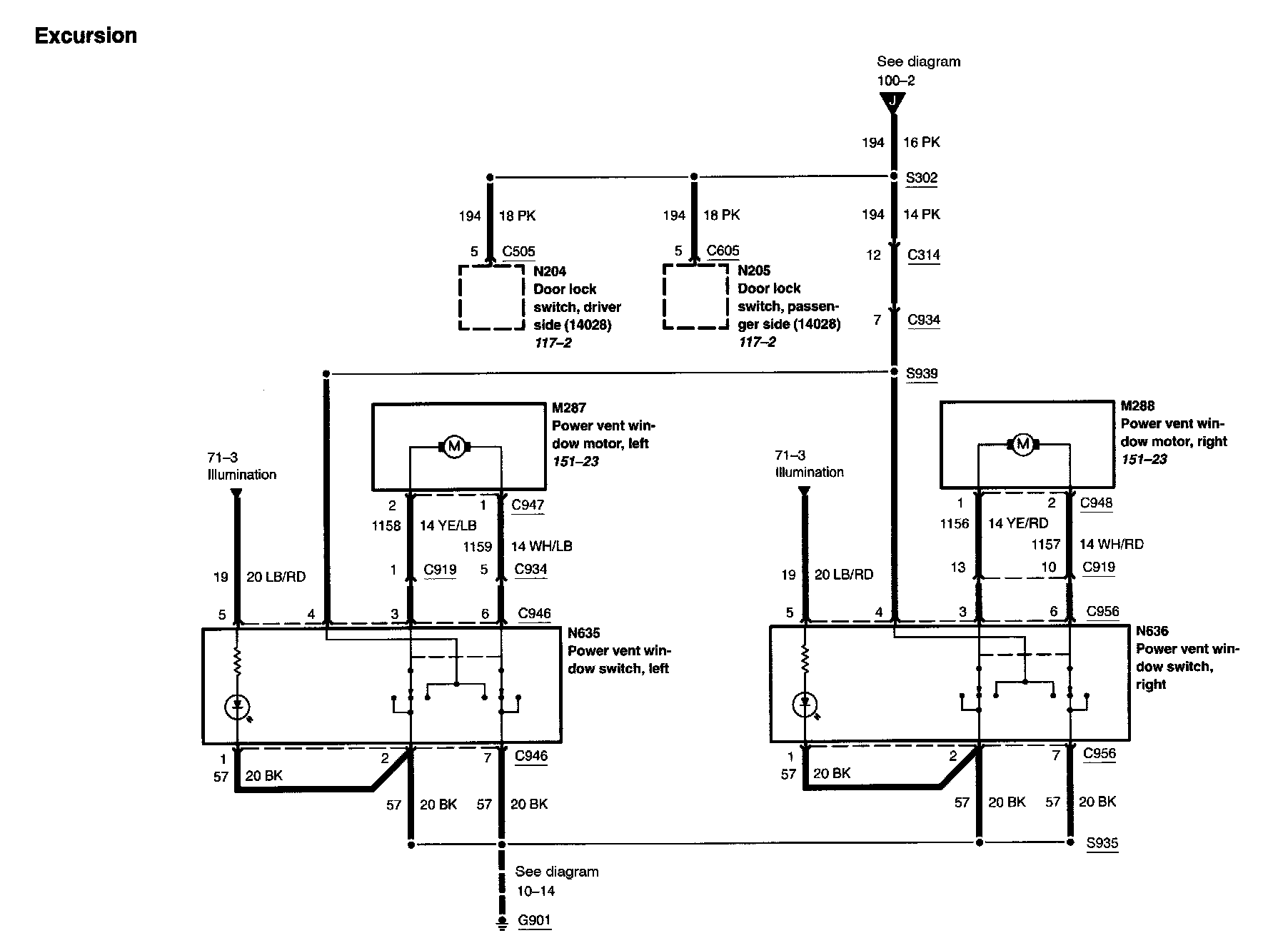

Diagram 100-4:






Diagram 100-6:
