Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> System Diagram

System Diagram

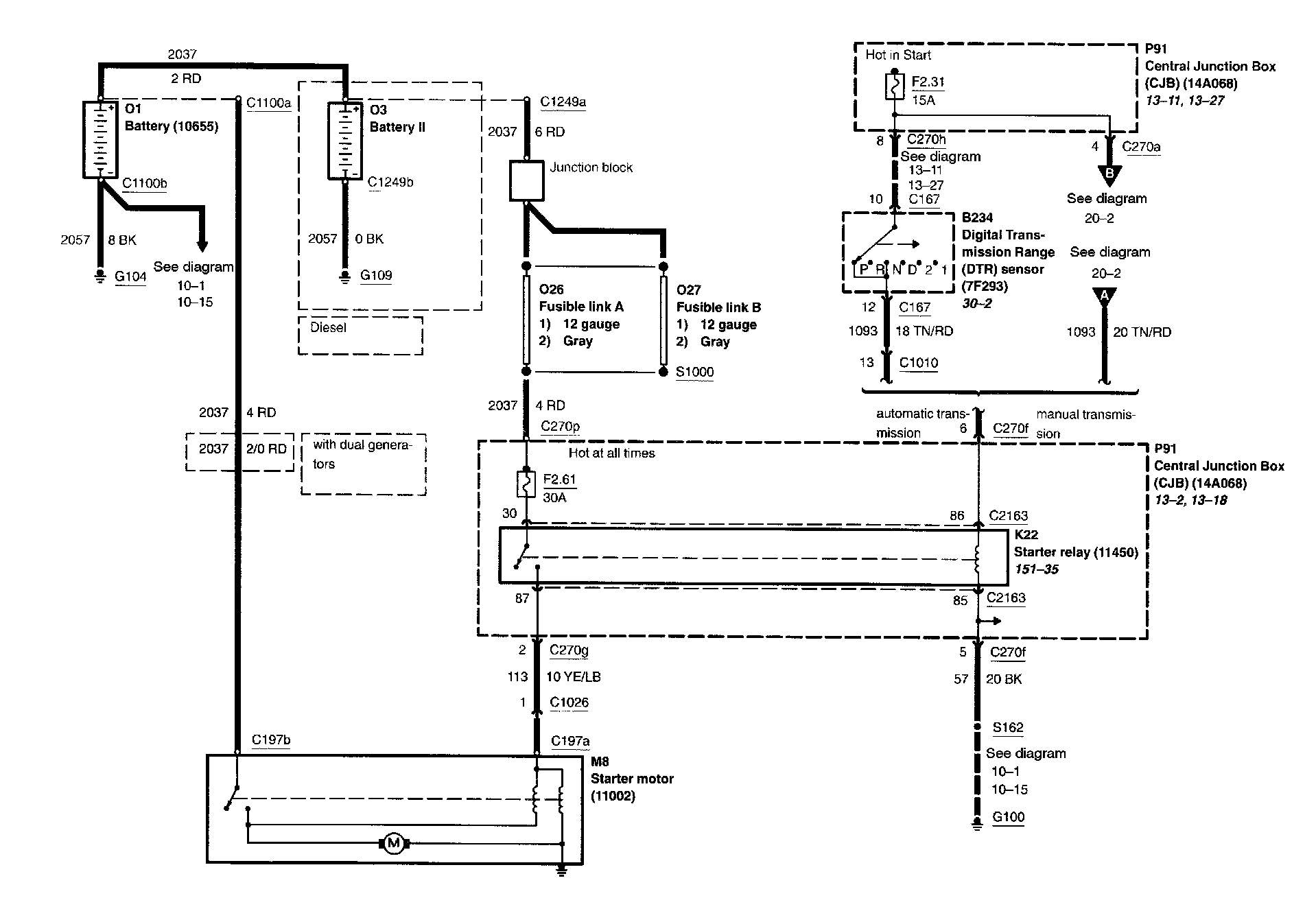

Diagram 20-1:

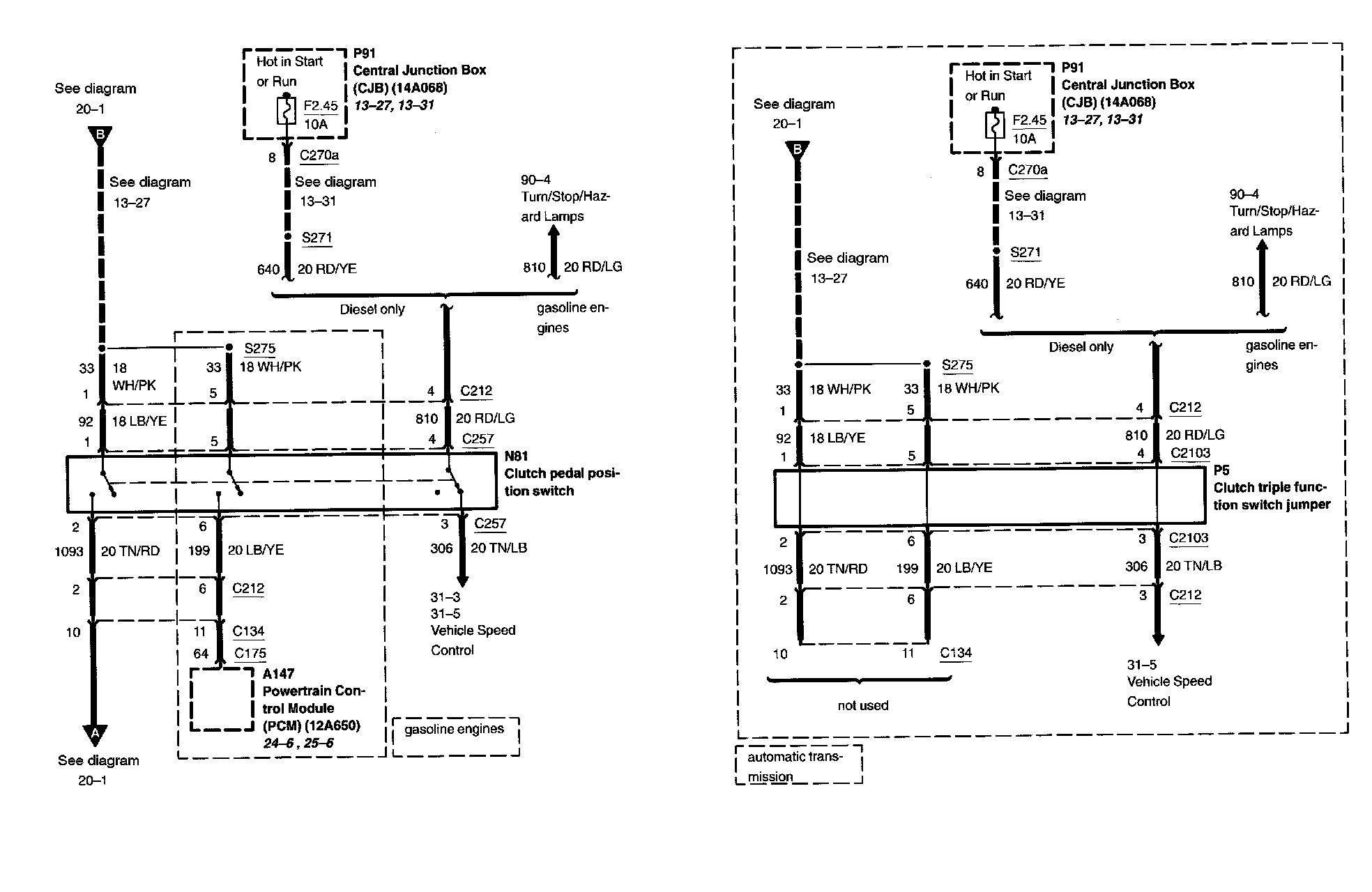

Diagram 20-2:
