Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

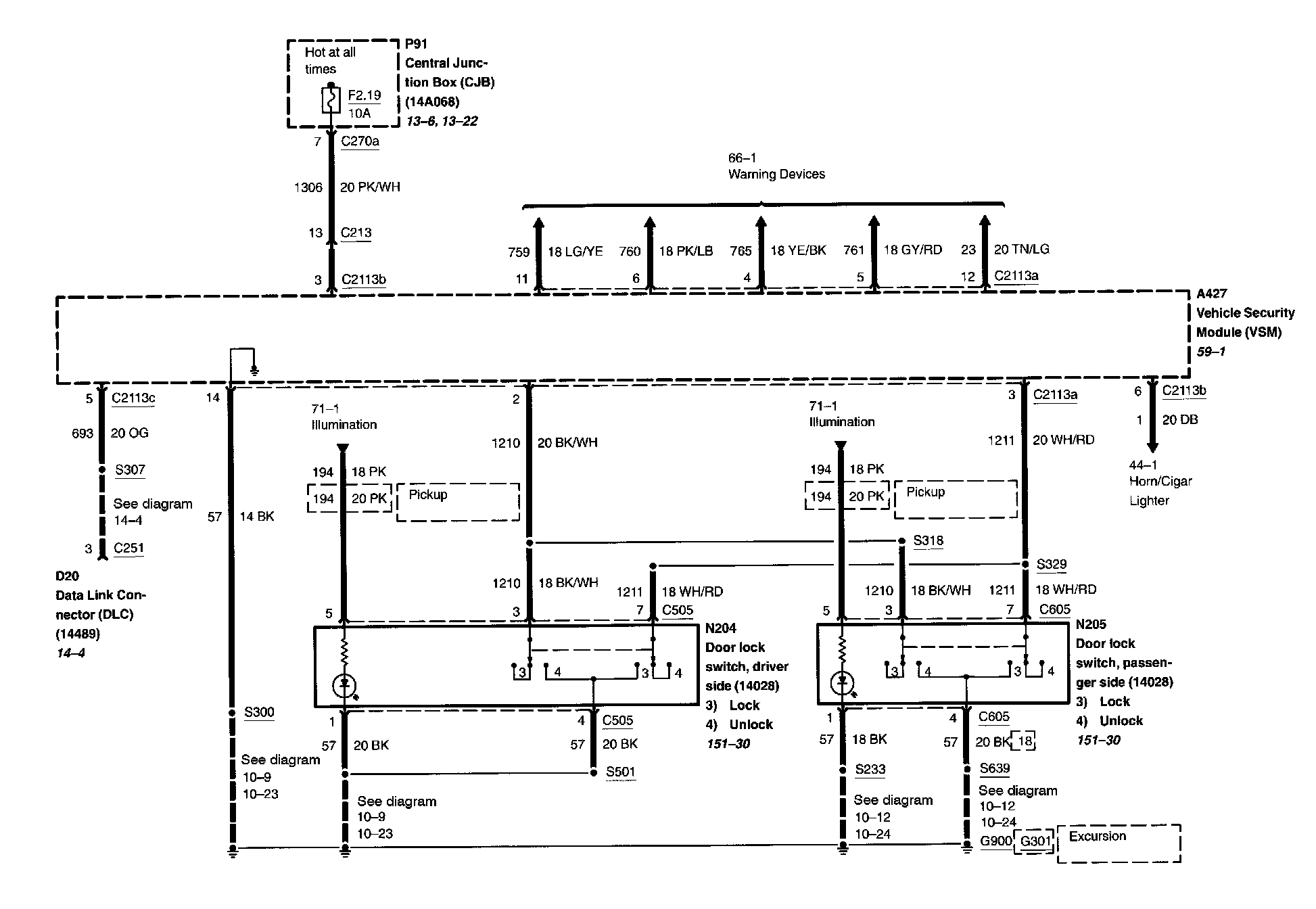

Diagram 117-1:

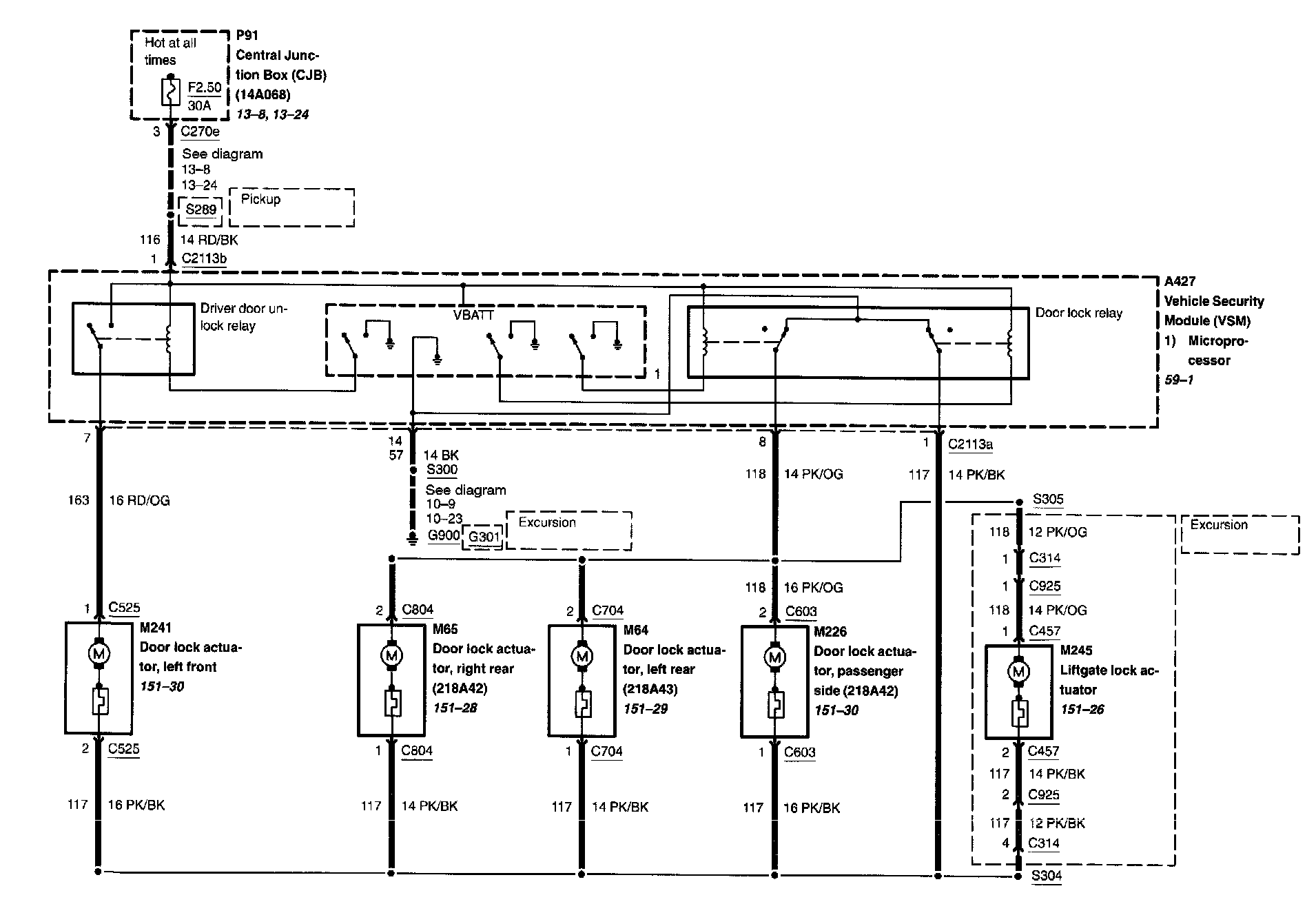

Diagram 117-2:

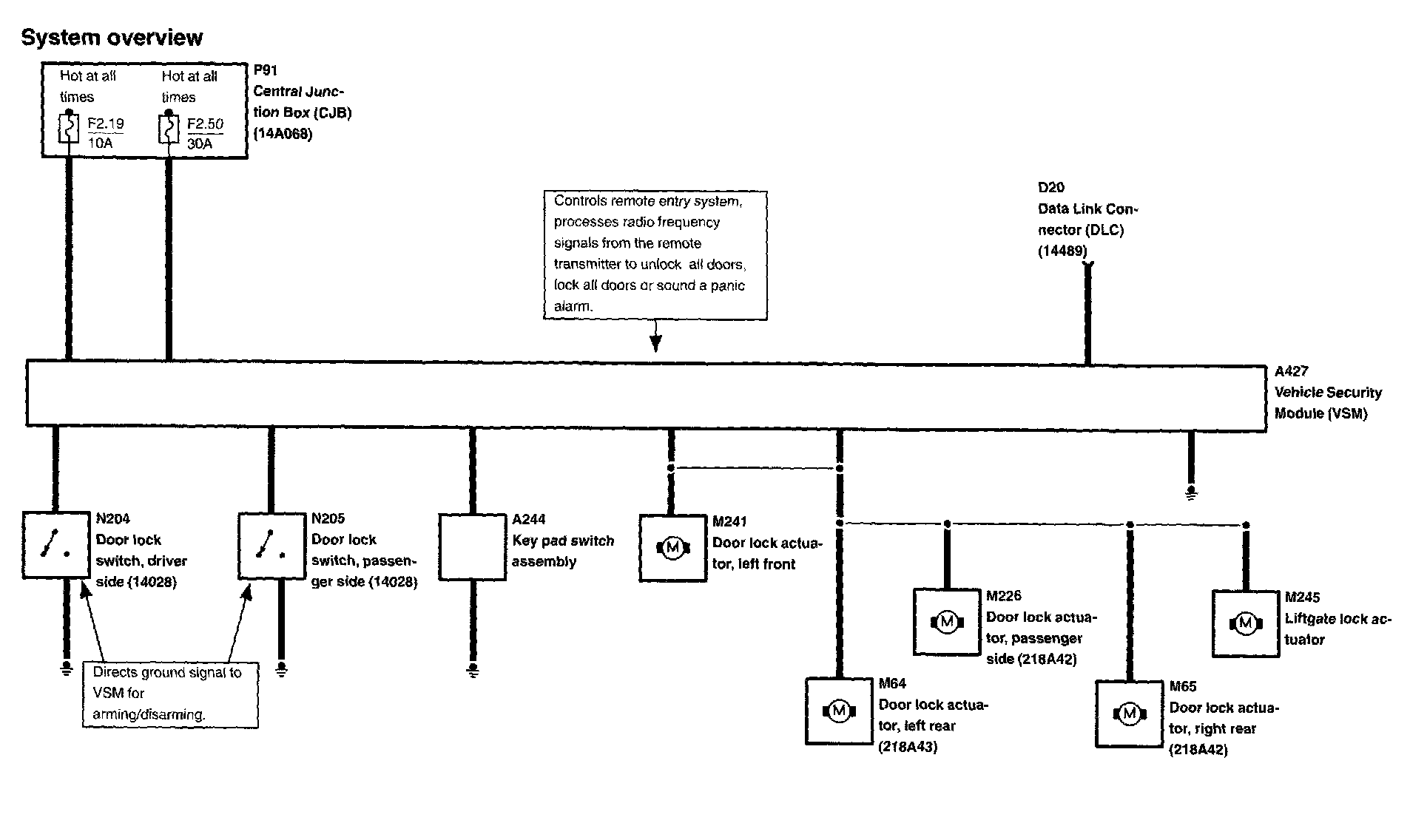

Diagram 117-3:

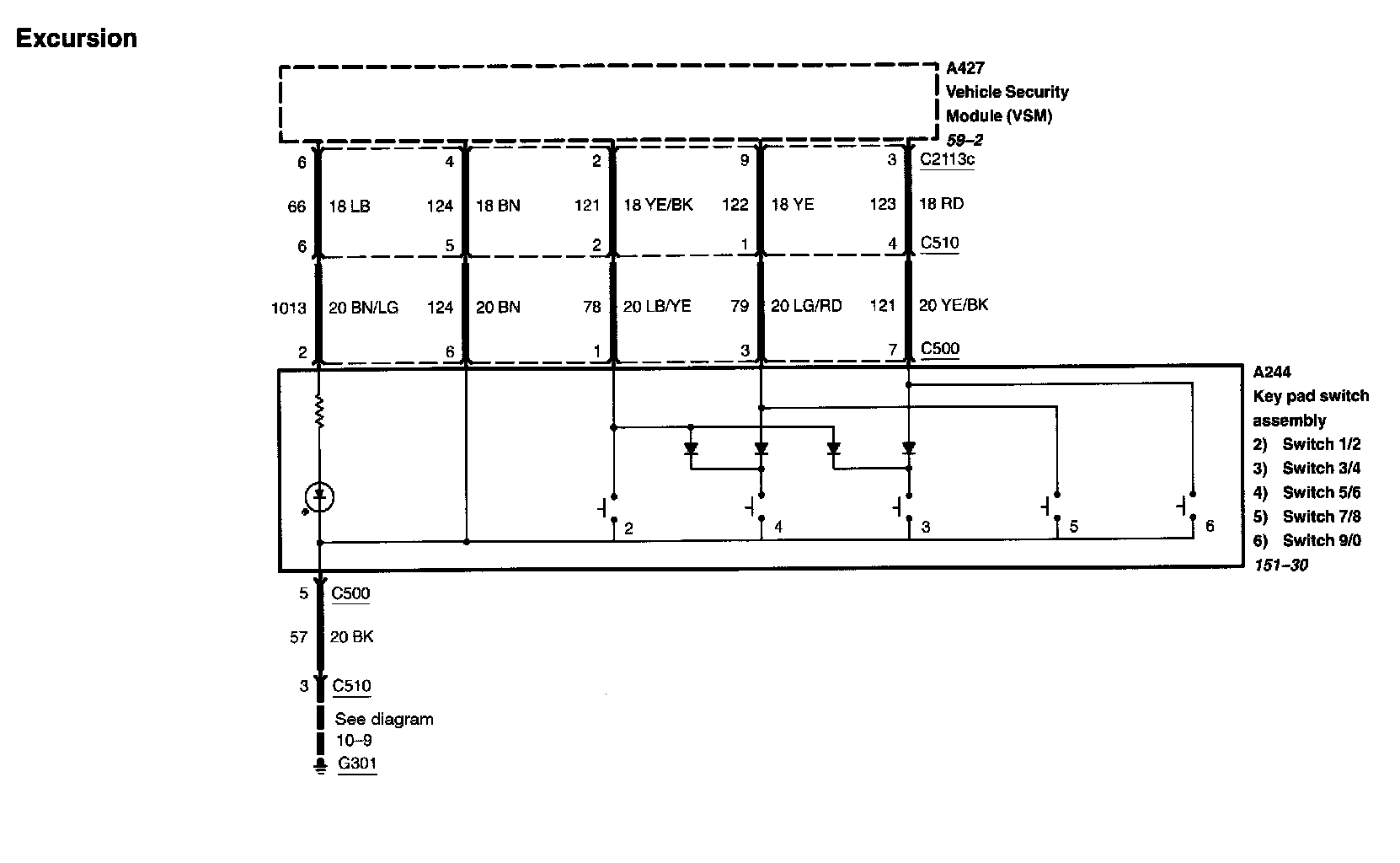

Diagram 117-4:
