Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> General Module

General Module

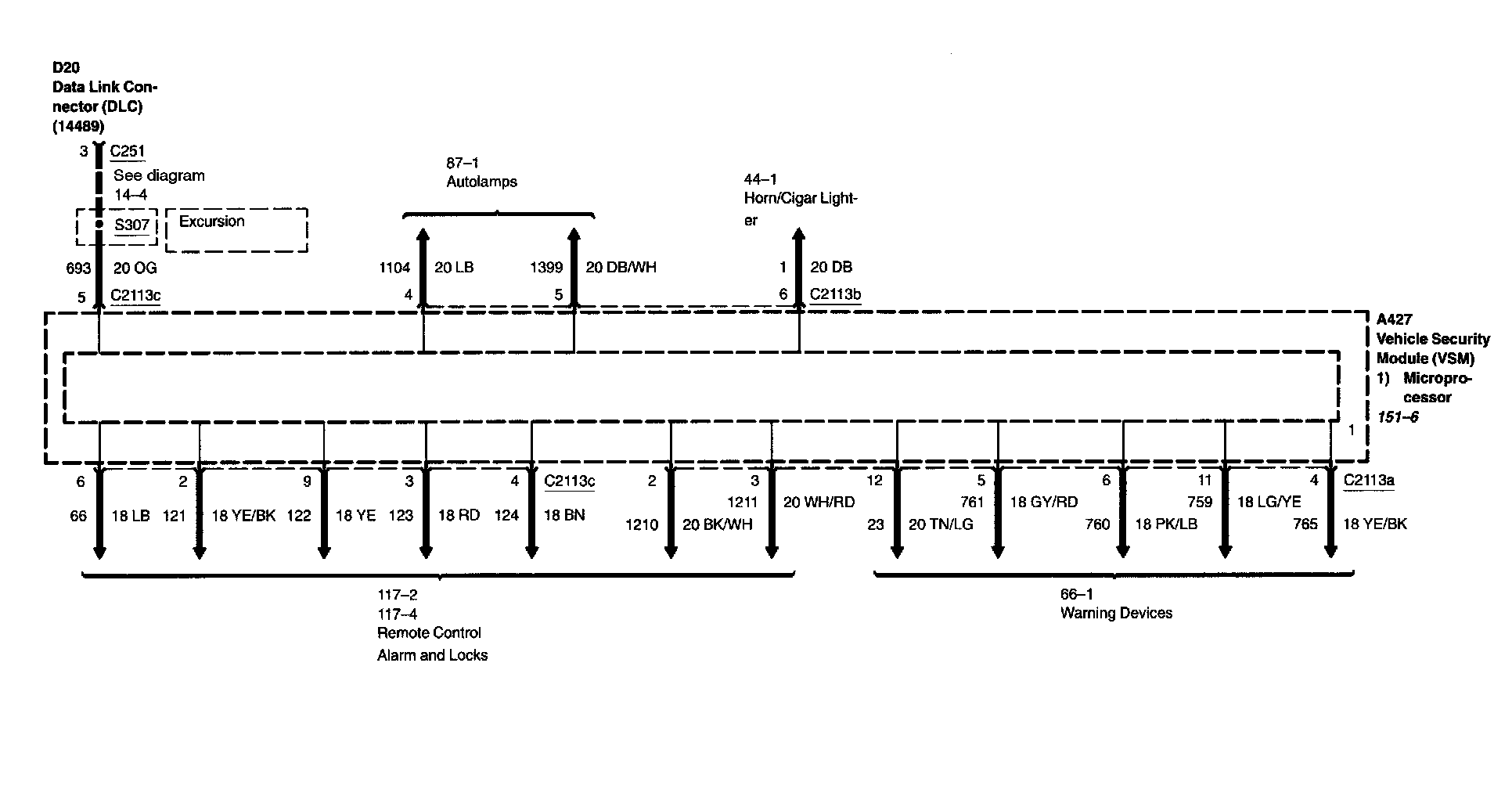

Diagram 59-1:

Diagram 59-2:
