Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams

Electrical Diagrams

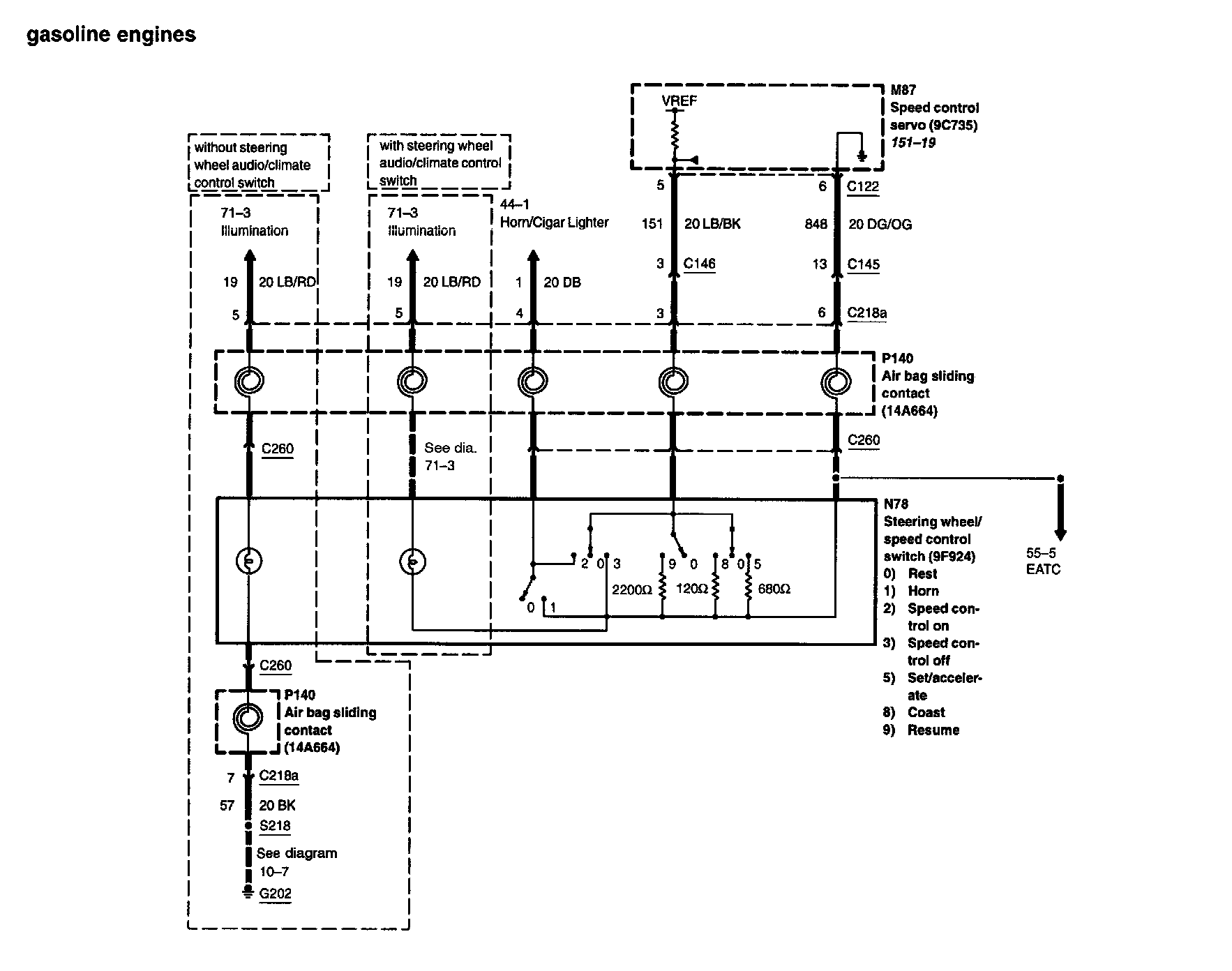

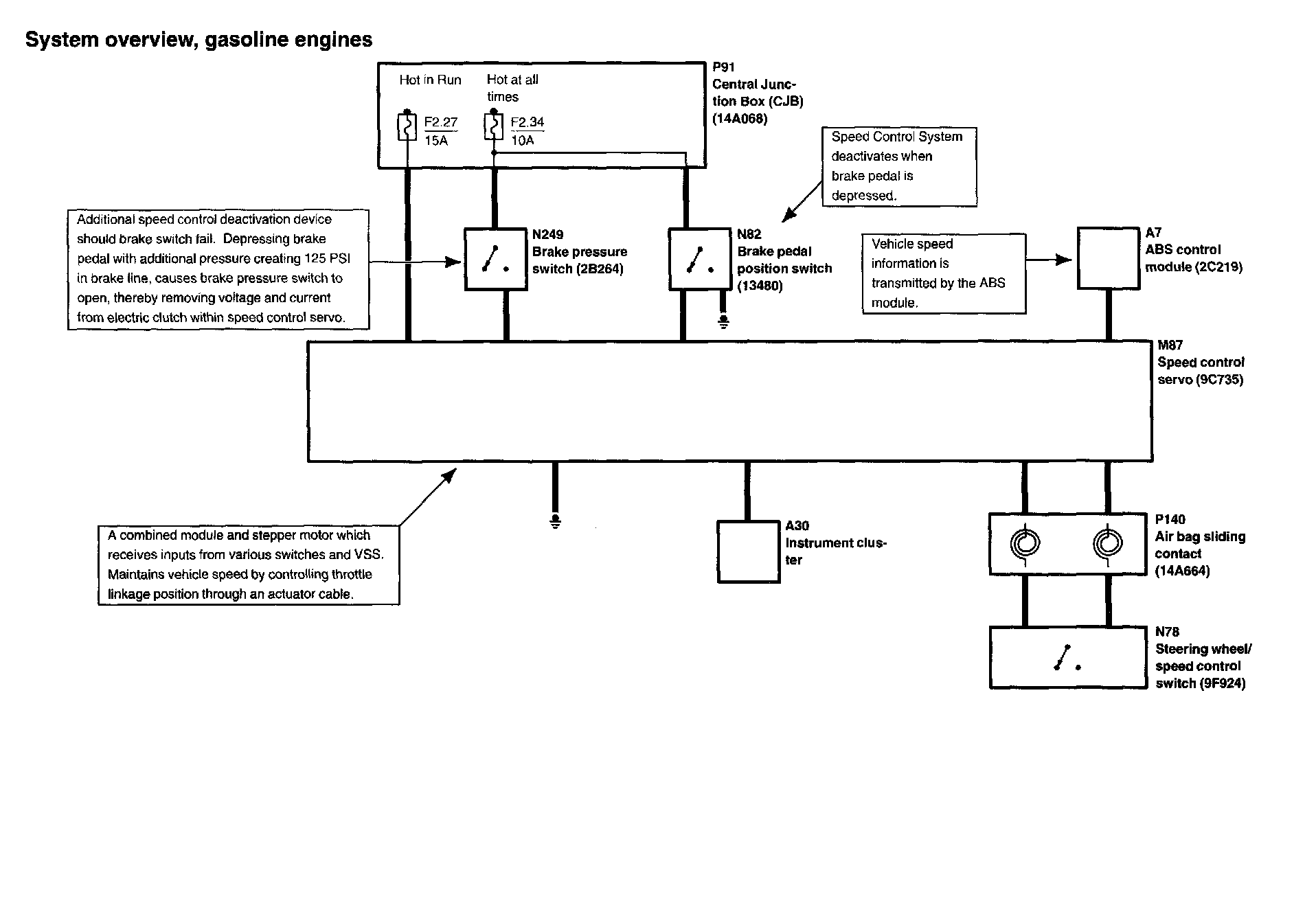

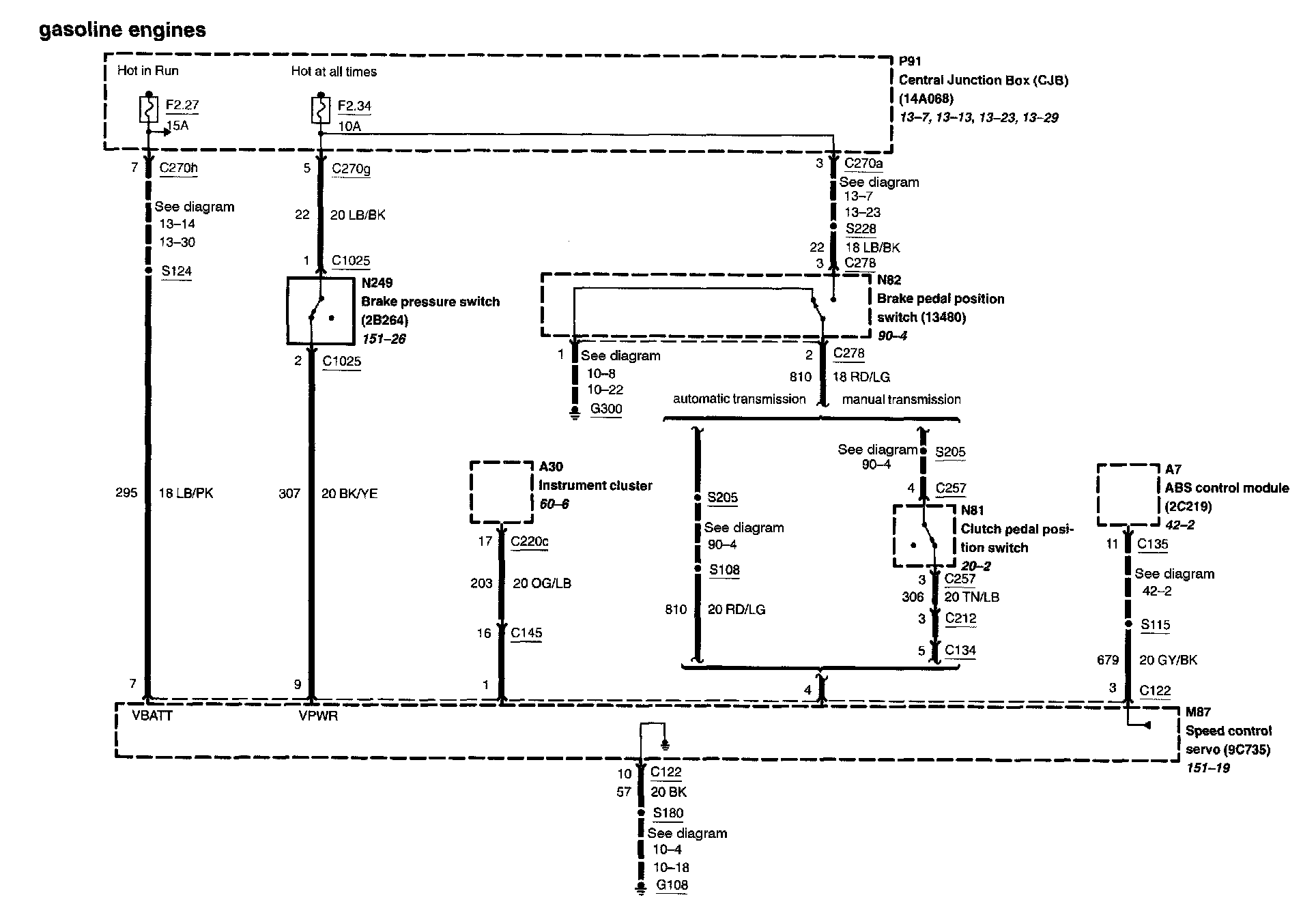

Diagram 31-1:

Diagram 31-3:

Diagram 31-4:
