Home >> Ford >> 2002 >> Excursion 2WD V10-6.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Test G: Unprogrammed Encoded Ignition Key (Keycode Format OK)

Test G: Unprogrammed Encoded Ignition Key (Keycode Format OK)

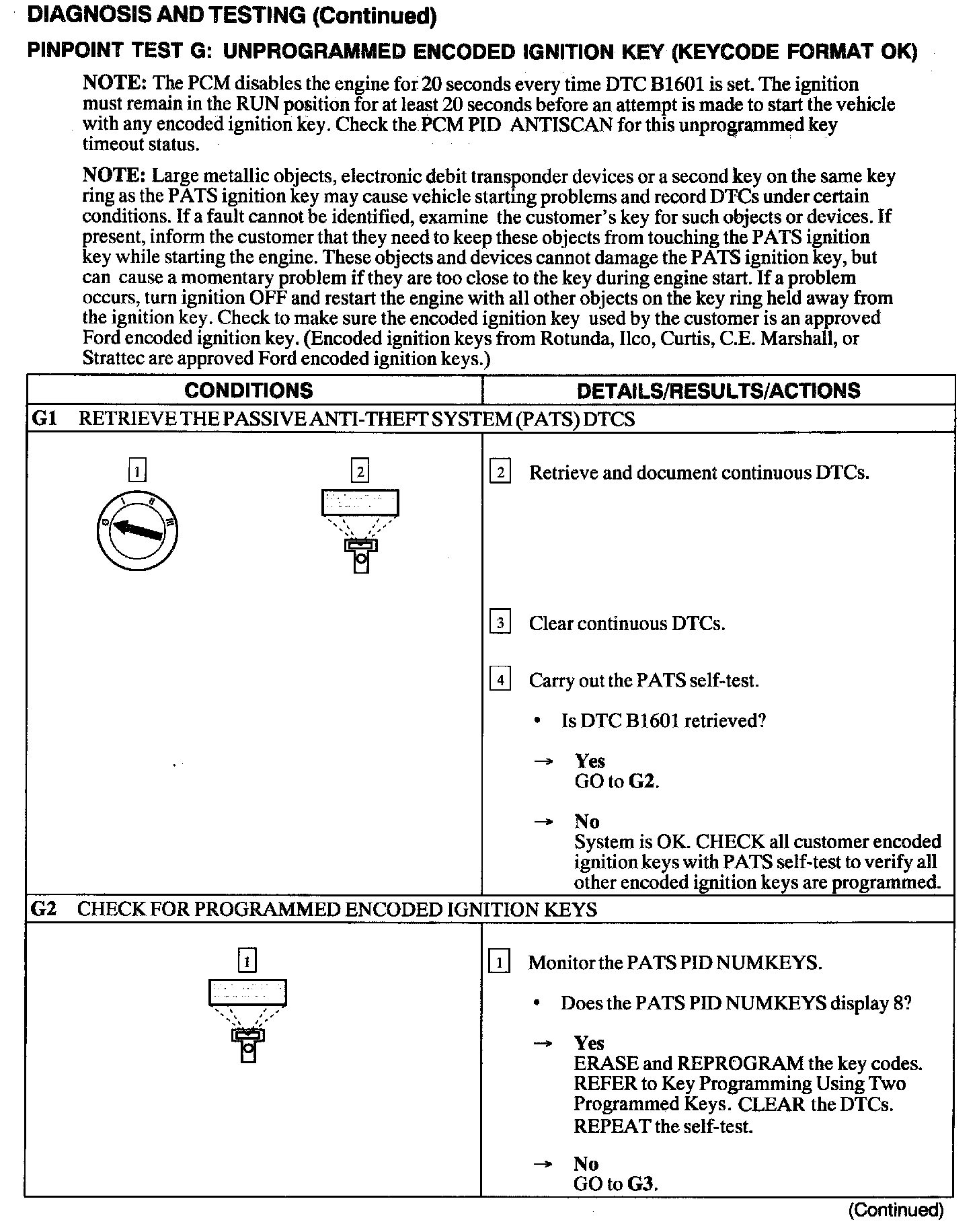

G1 - G2:

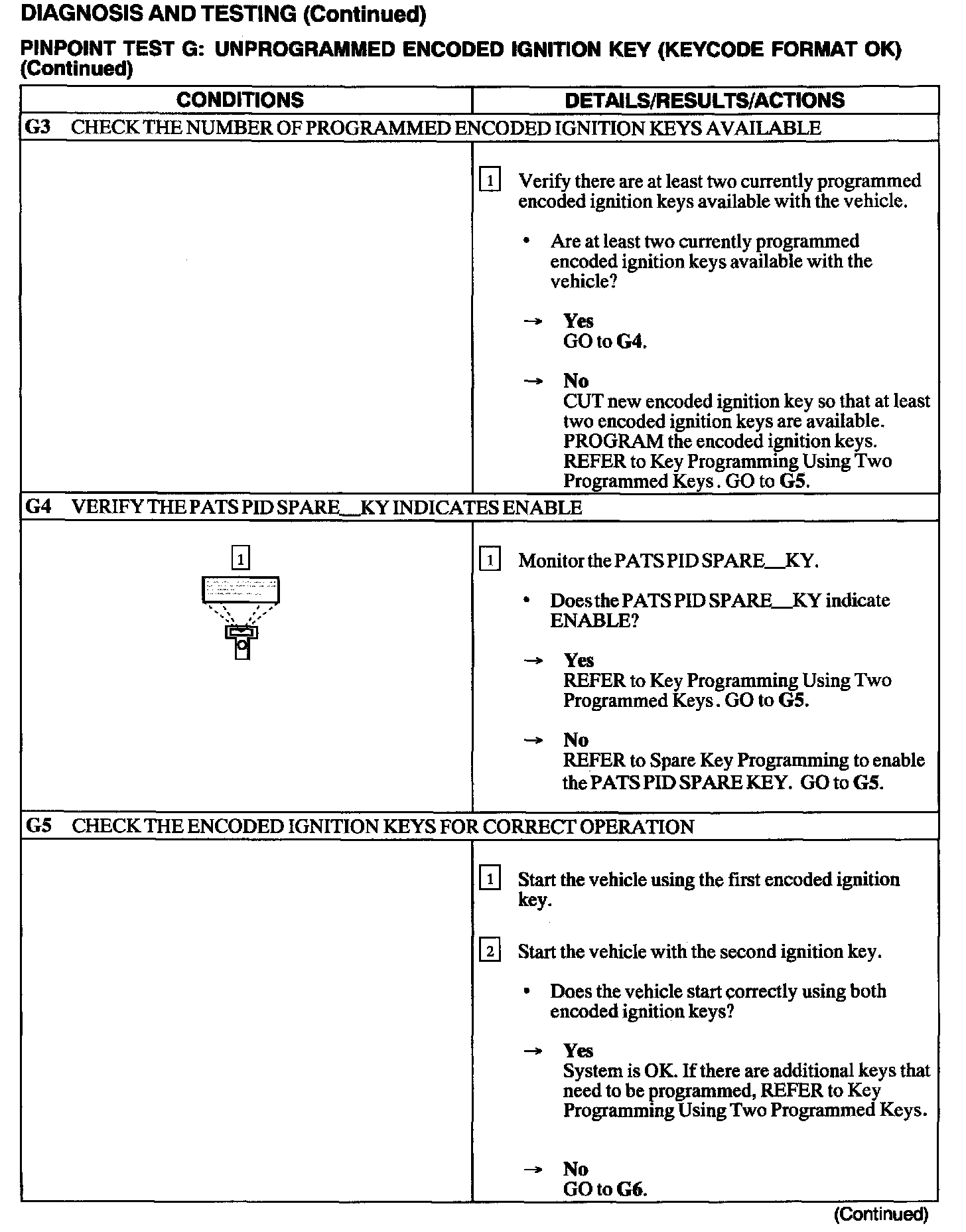

G3 - G5:

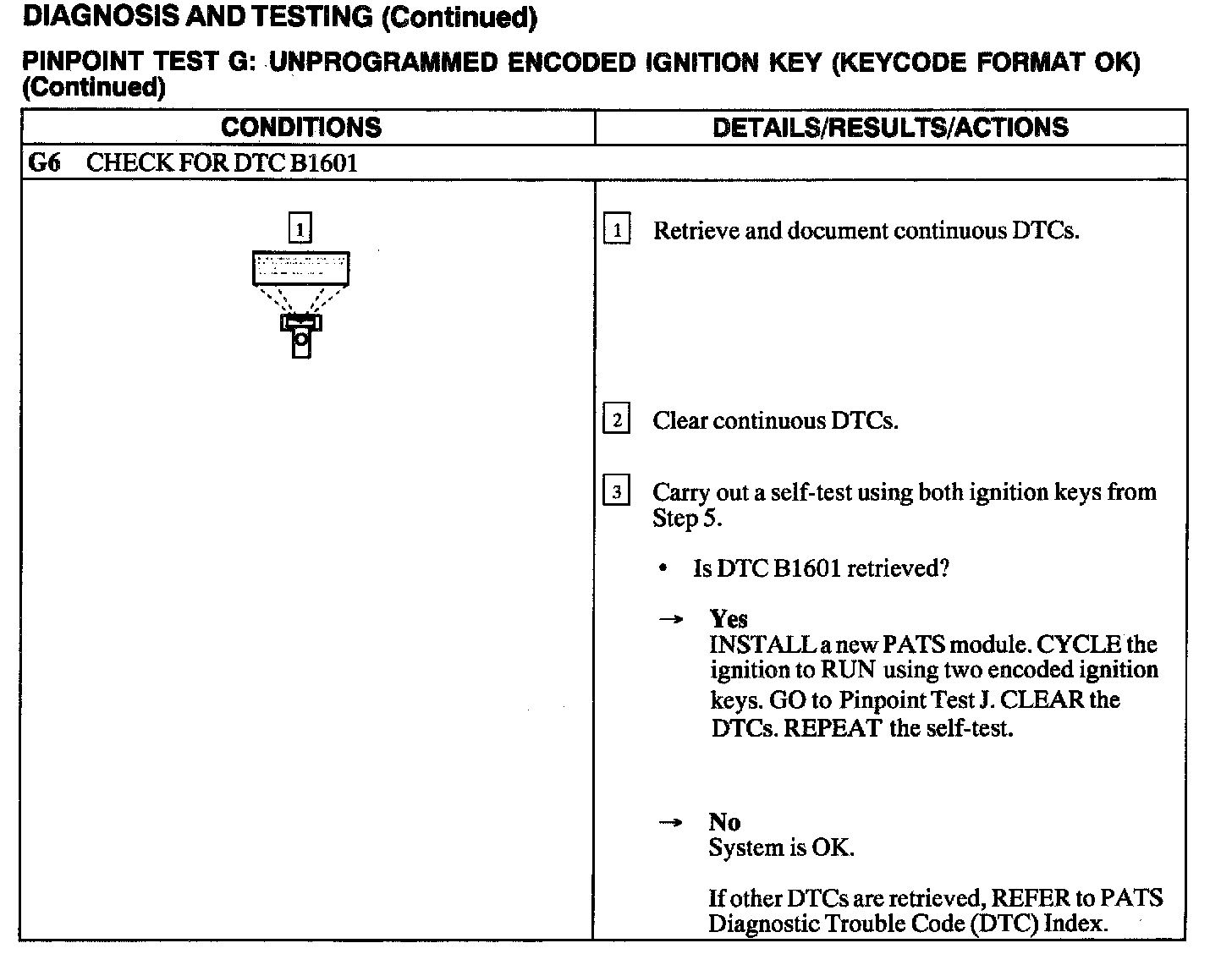

G6:
