Home >> Ford >> 2000 >> Excursion 4WD V10-6.8L VIN S >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Gasoline-Only Models

Gasoline-Only Models

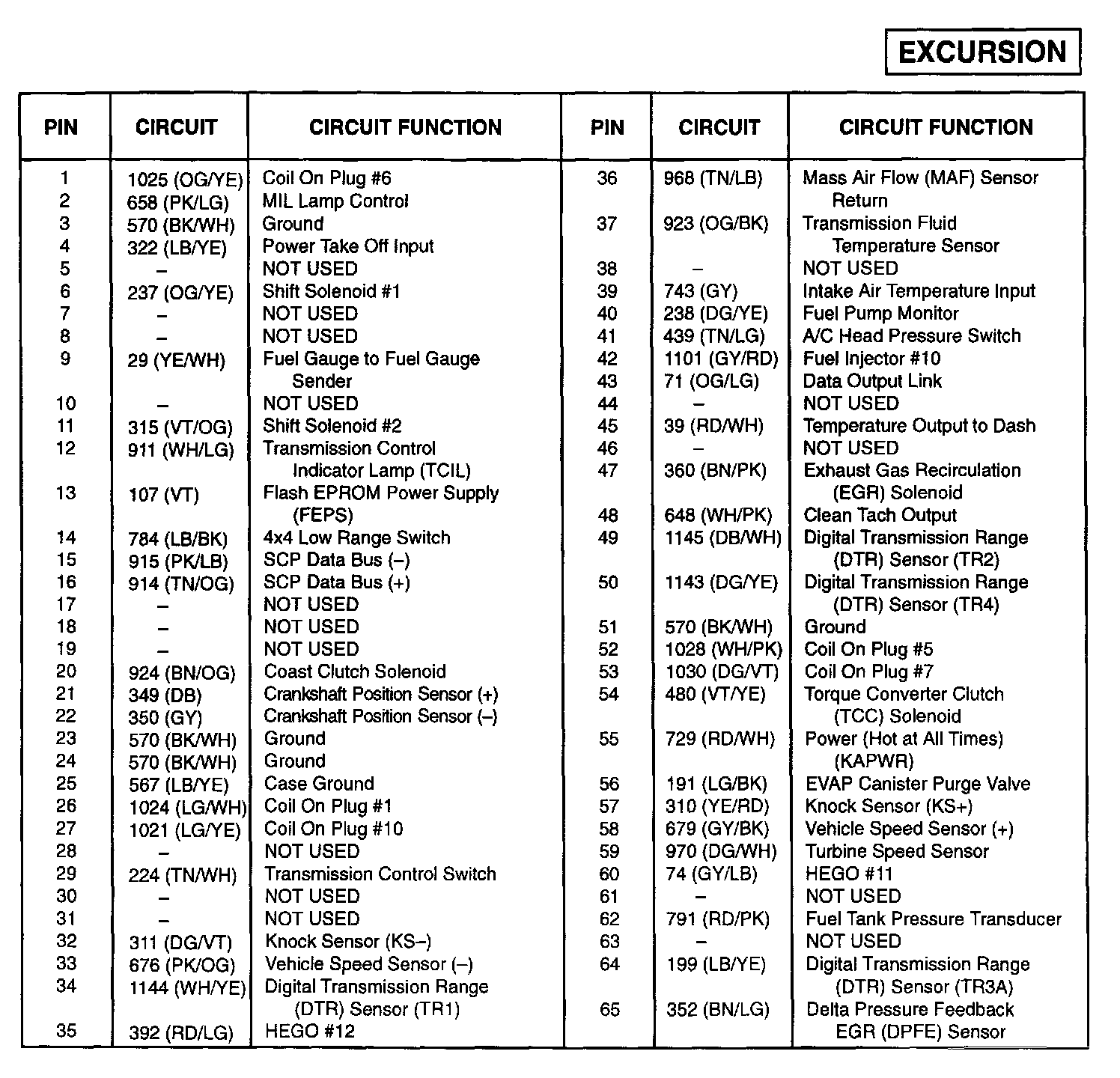

Part (1 Of 3):

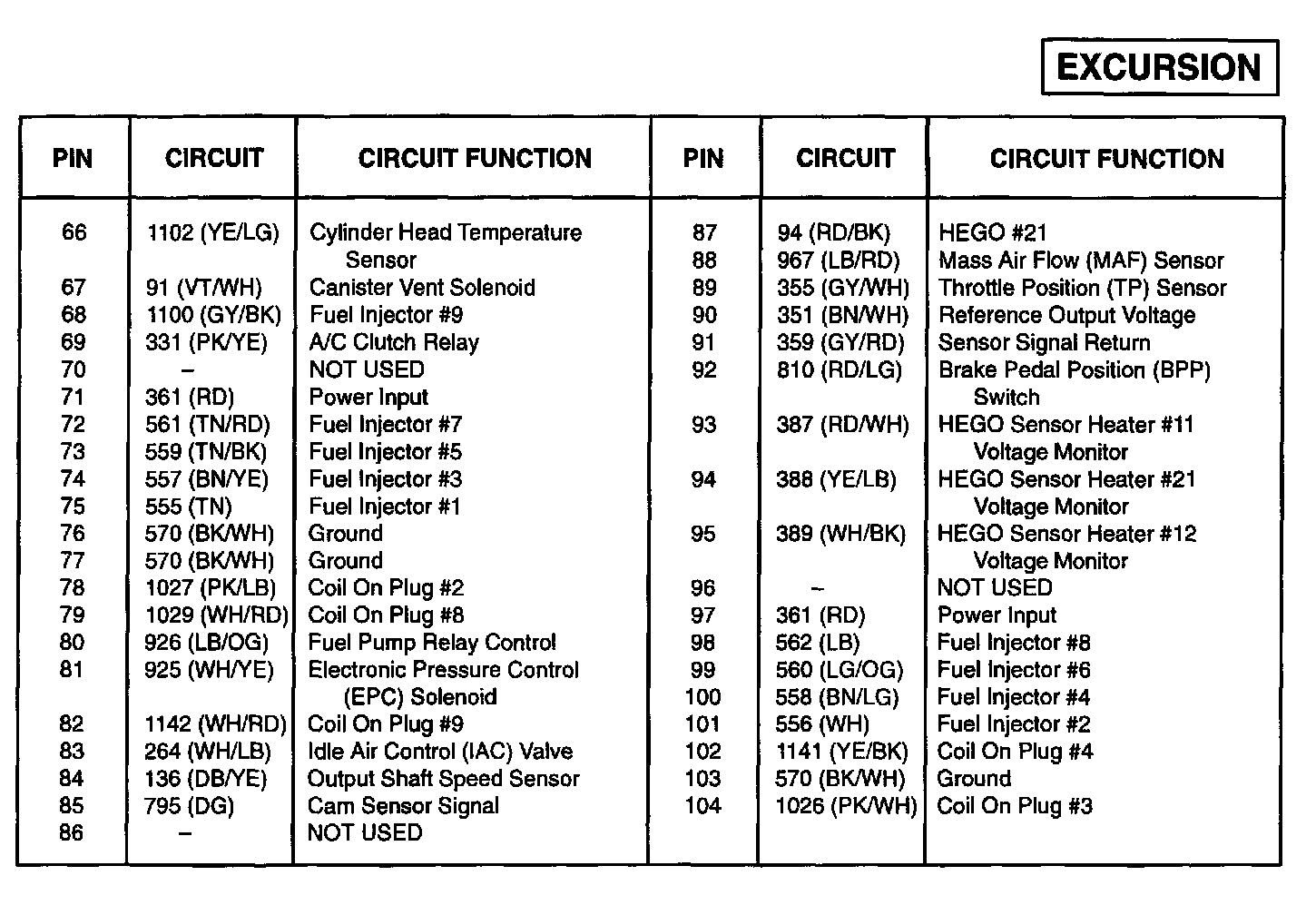

Part (2 Of 3):

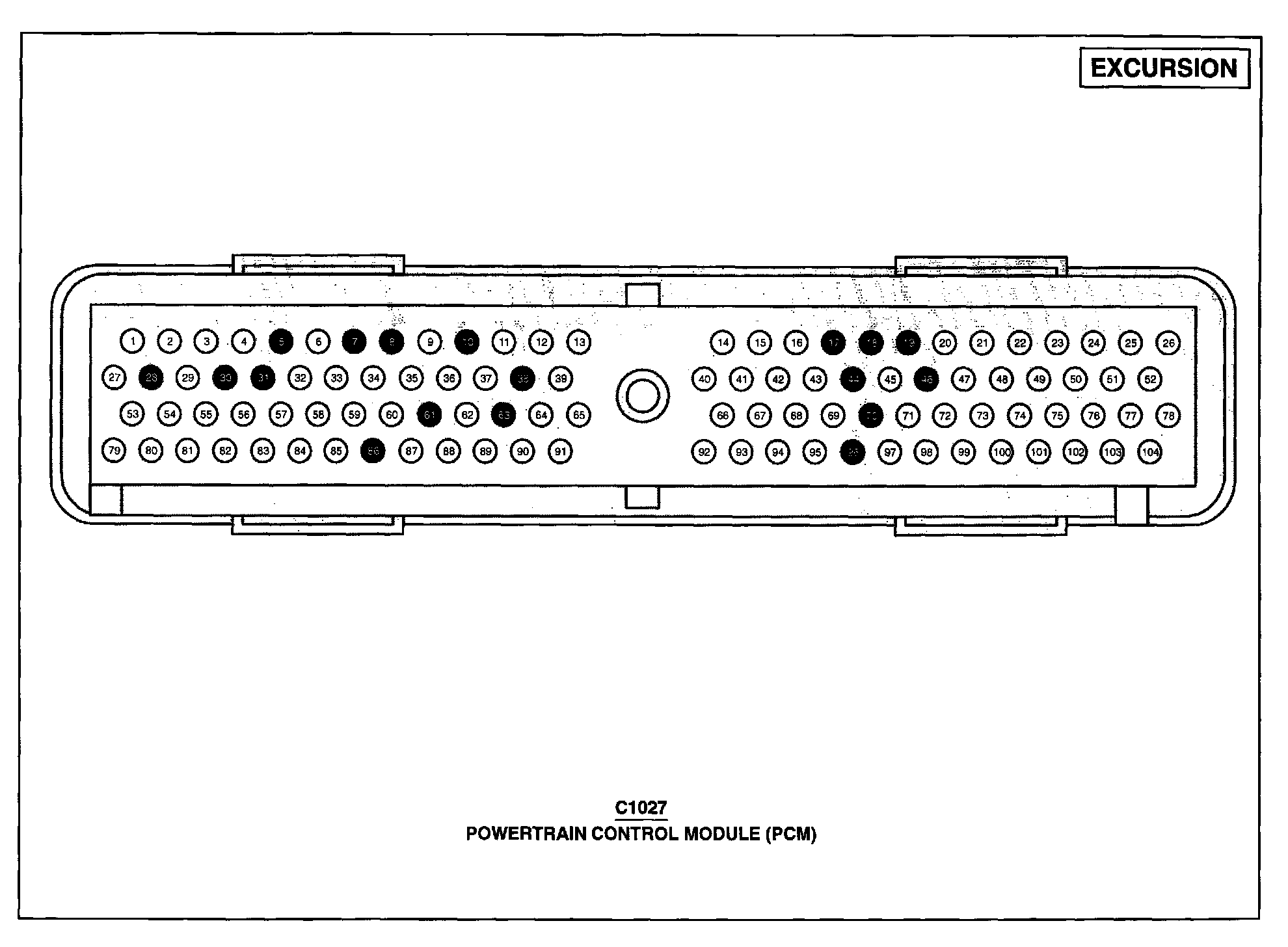

Part (3 Of 3):
