Exploded Views

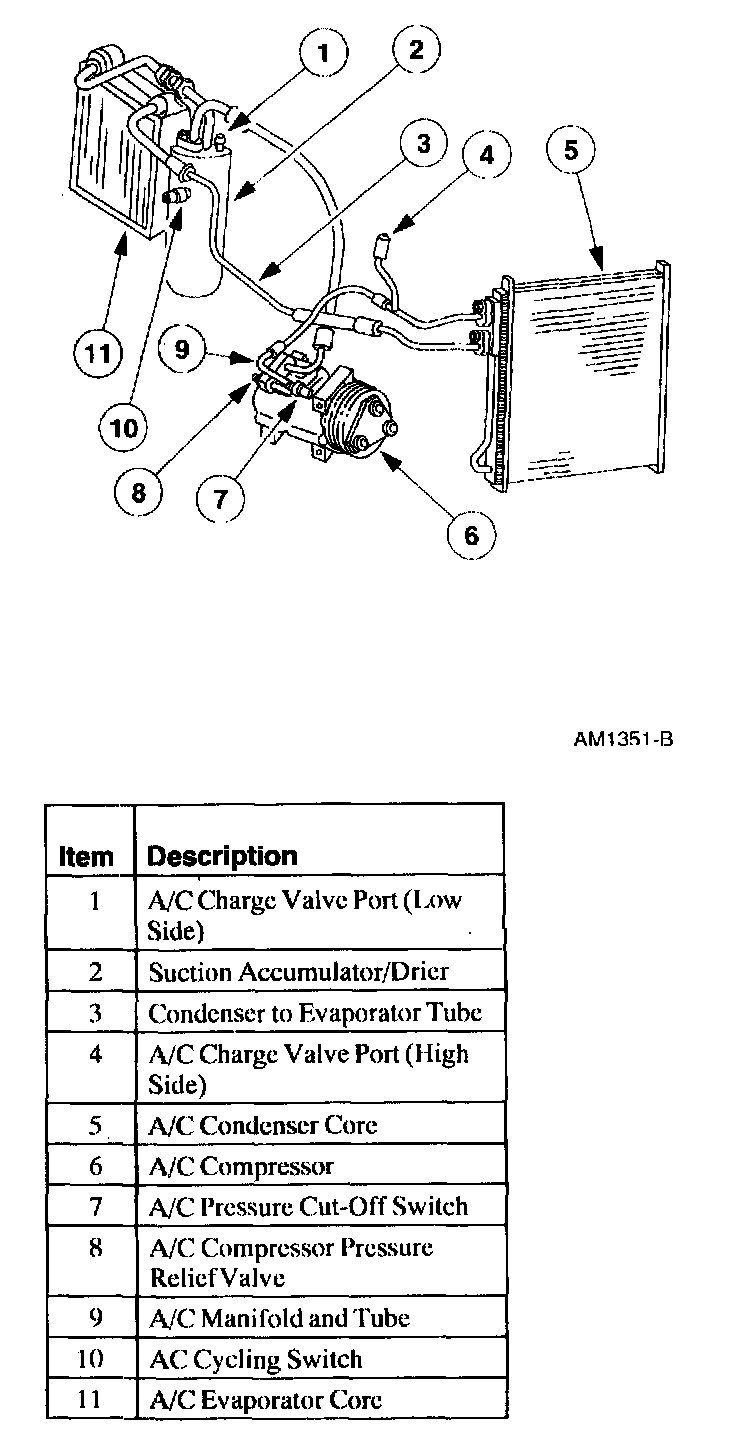

Refrigeration System Components - 5.4L And 6.8L (7.3L Diesel Similar):

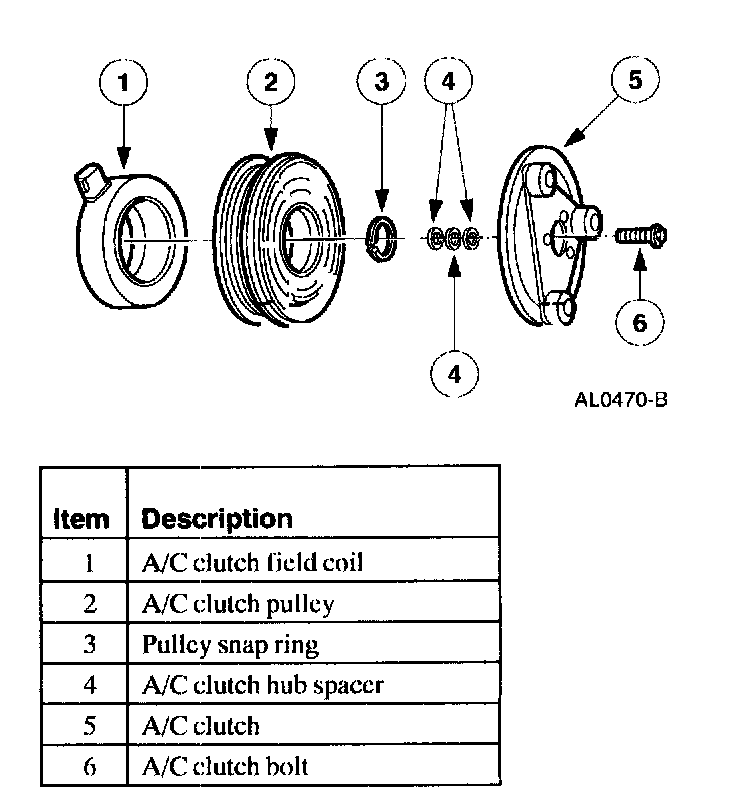

Compressor Clutch Components:

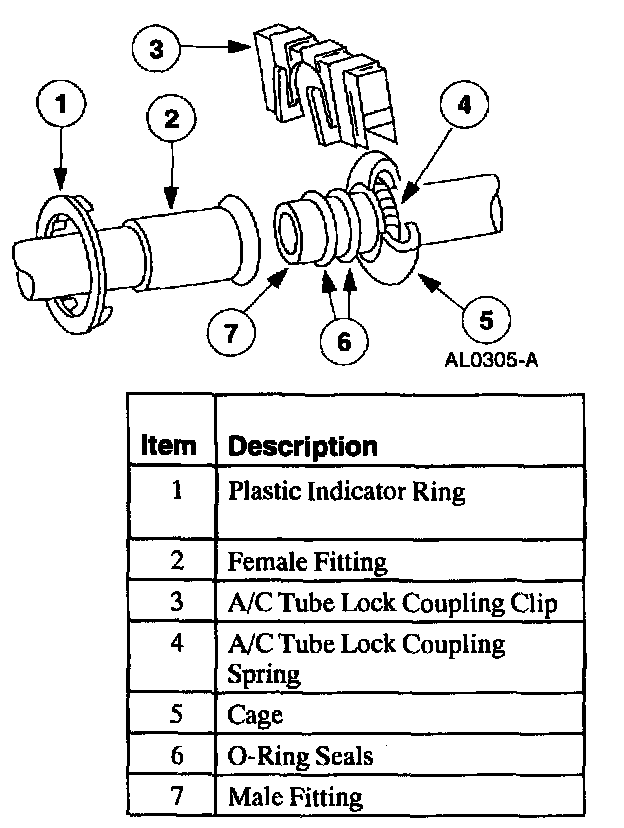

Spring Lock Coupling:

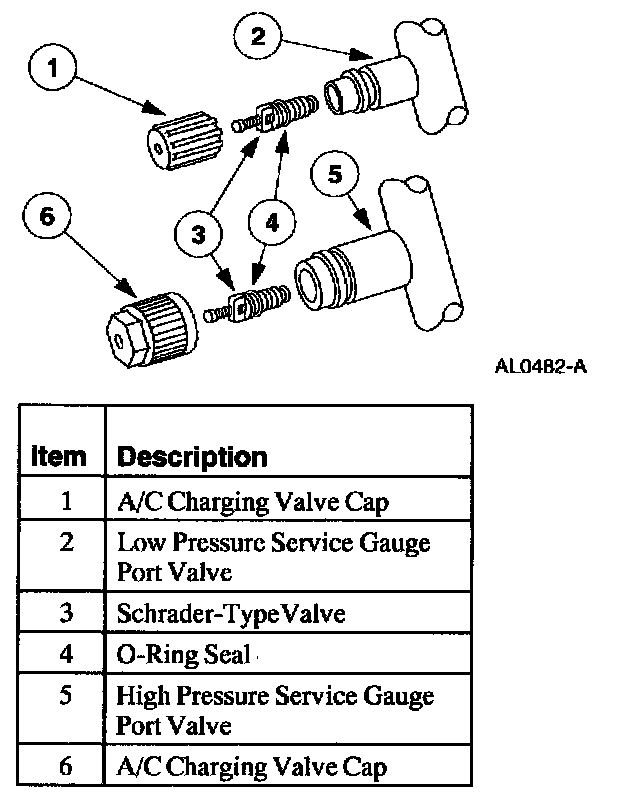

Service Gauge Port Valve:

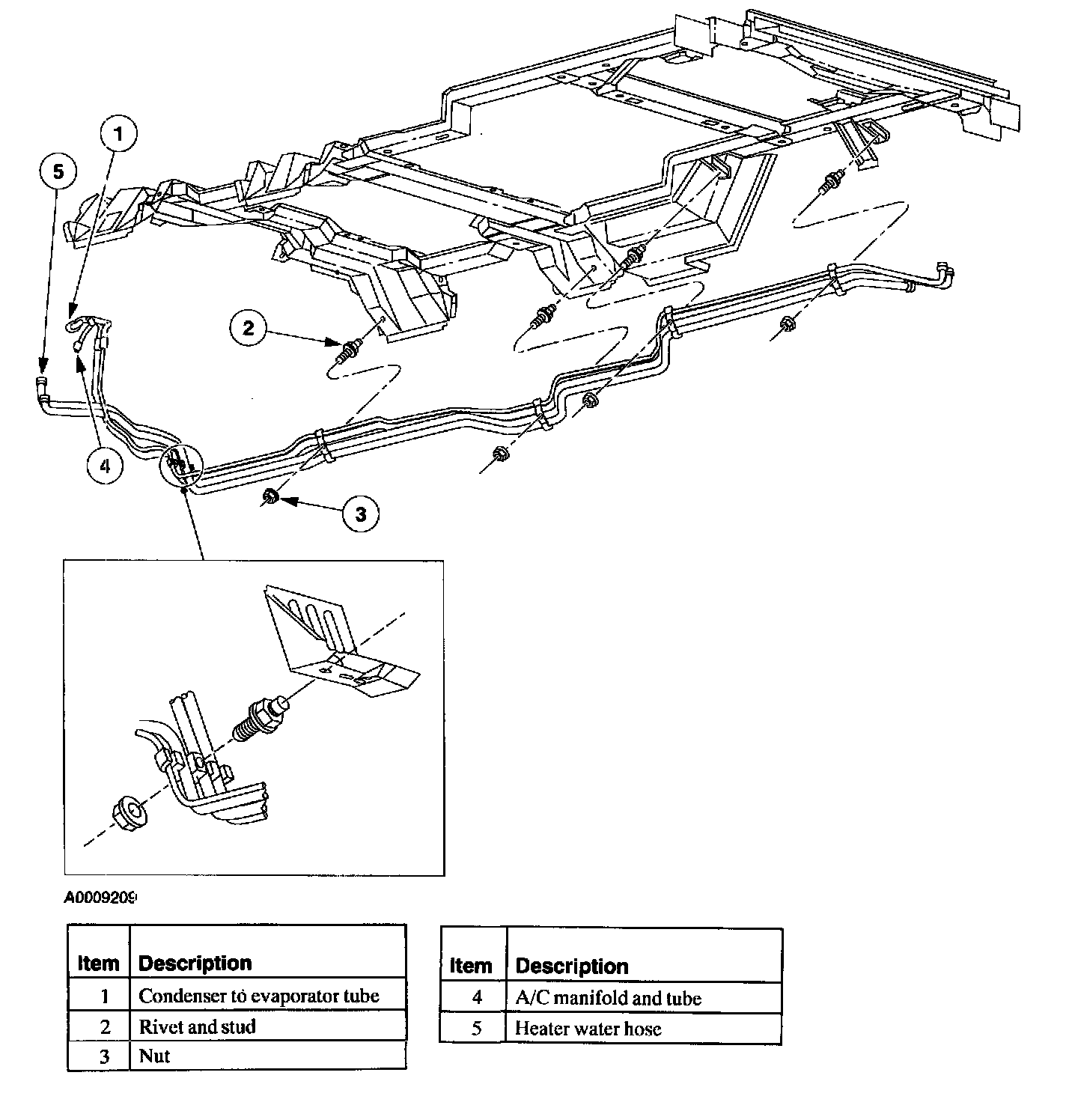

A/C and Heater Lines:
