Ford
>>
2000
>>
Excursion 4WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>

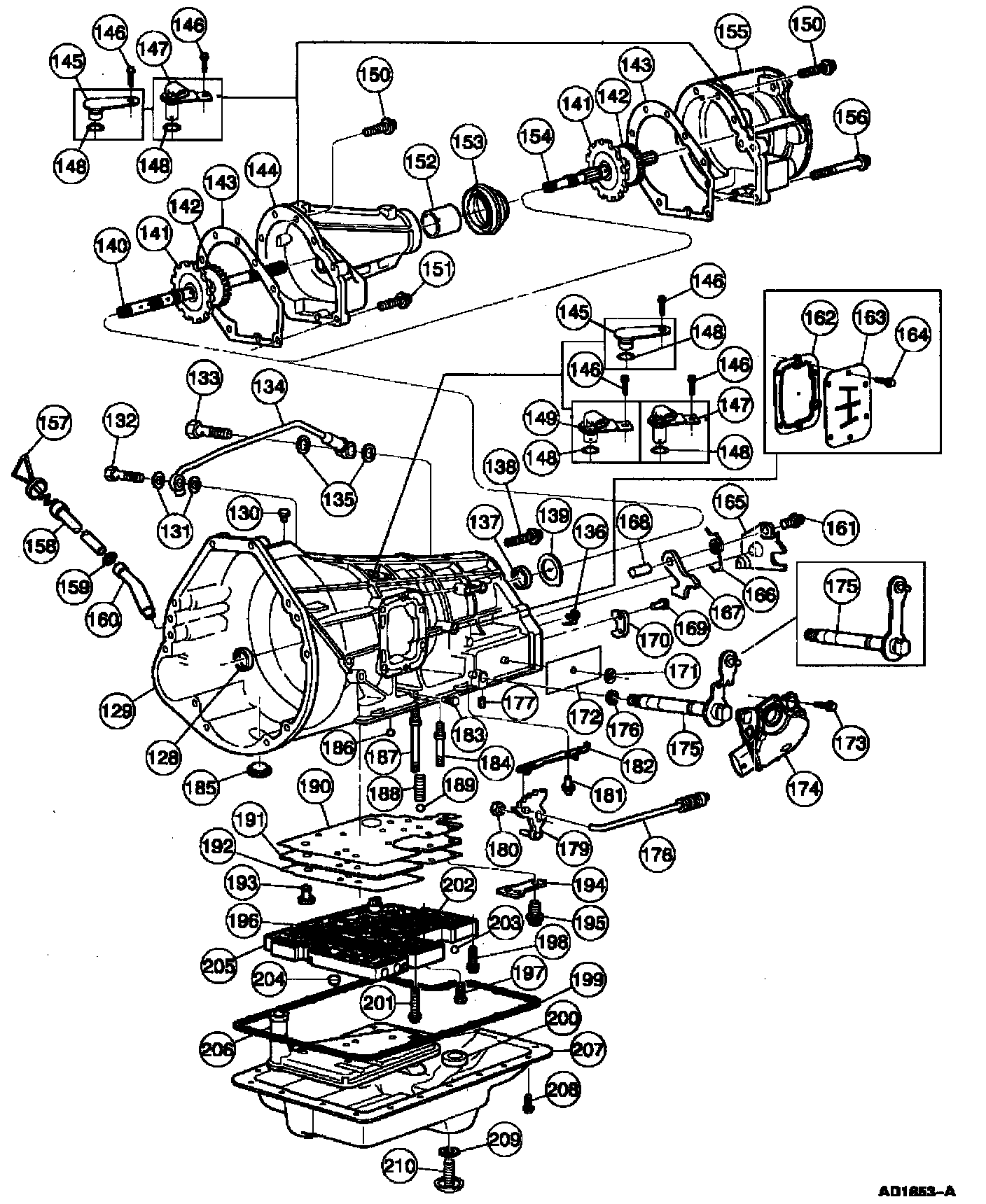

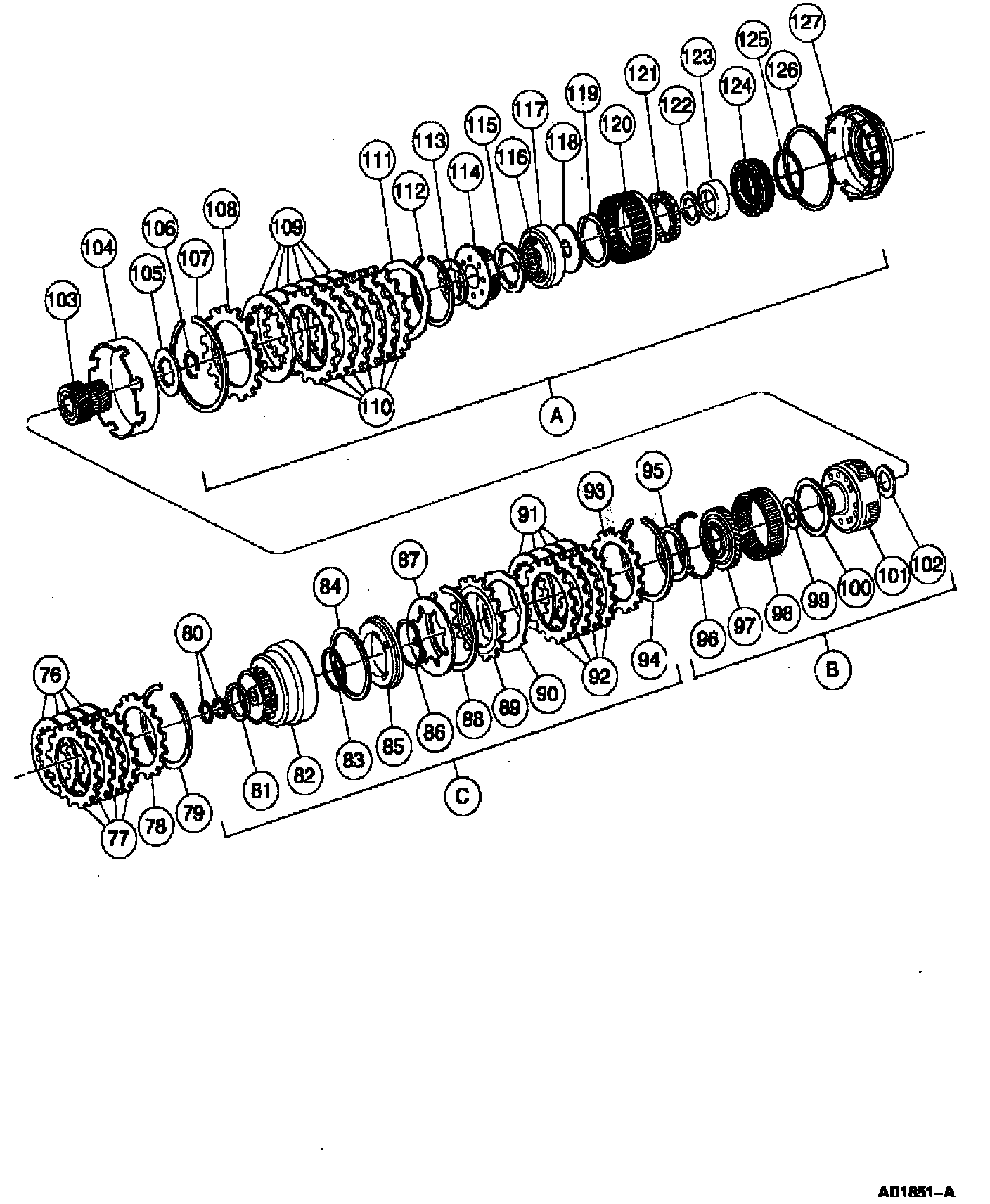

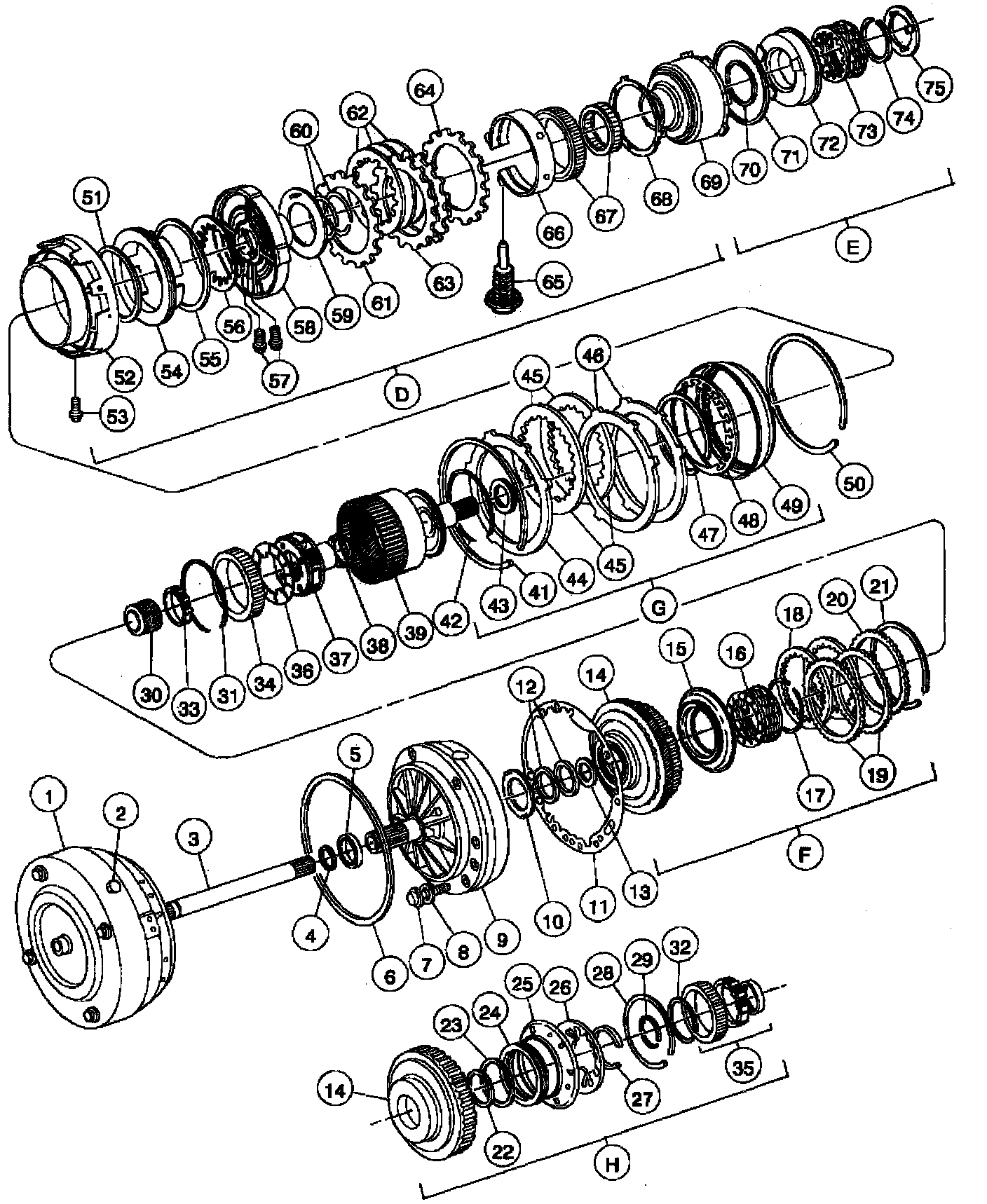

Exploded Views
>>

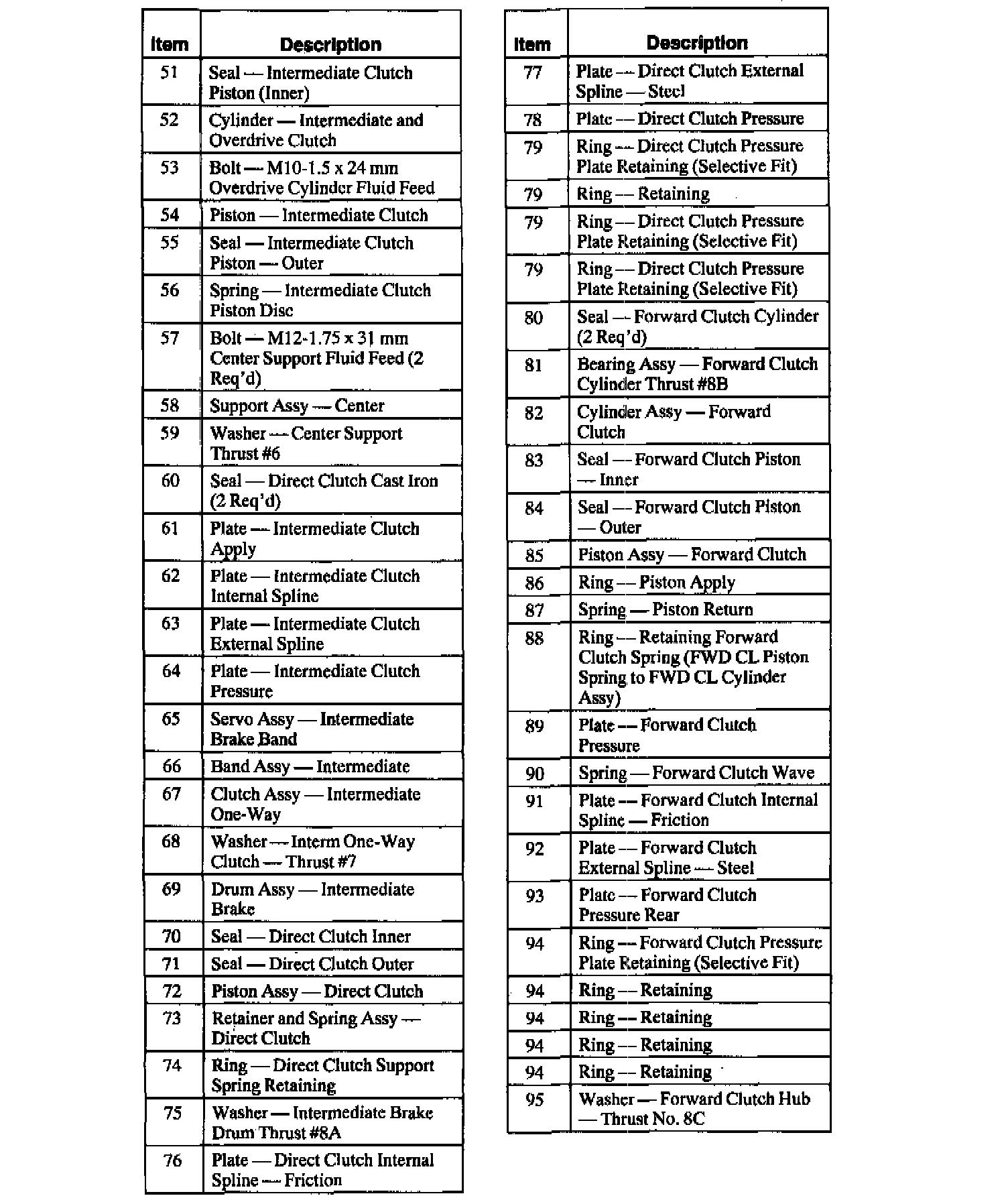

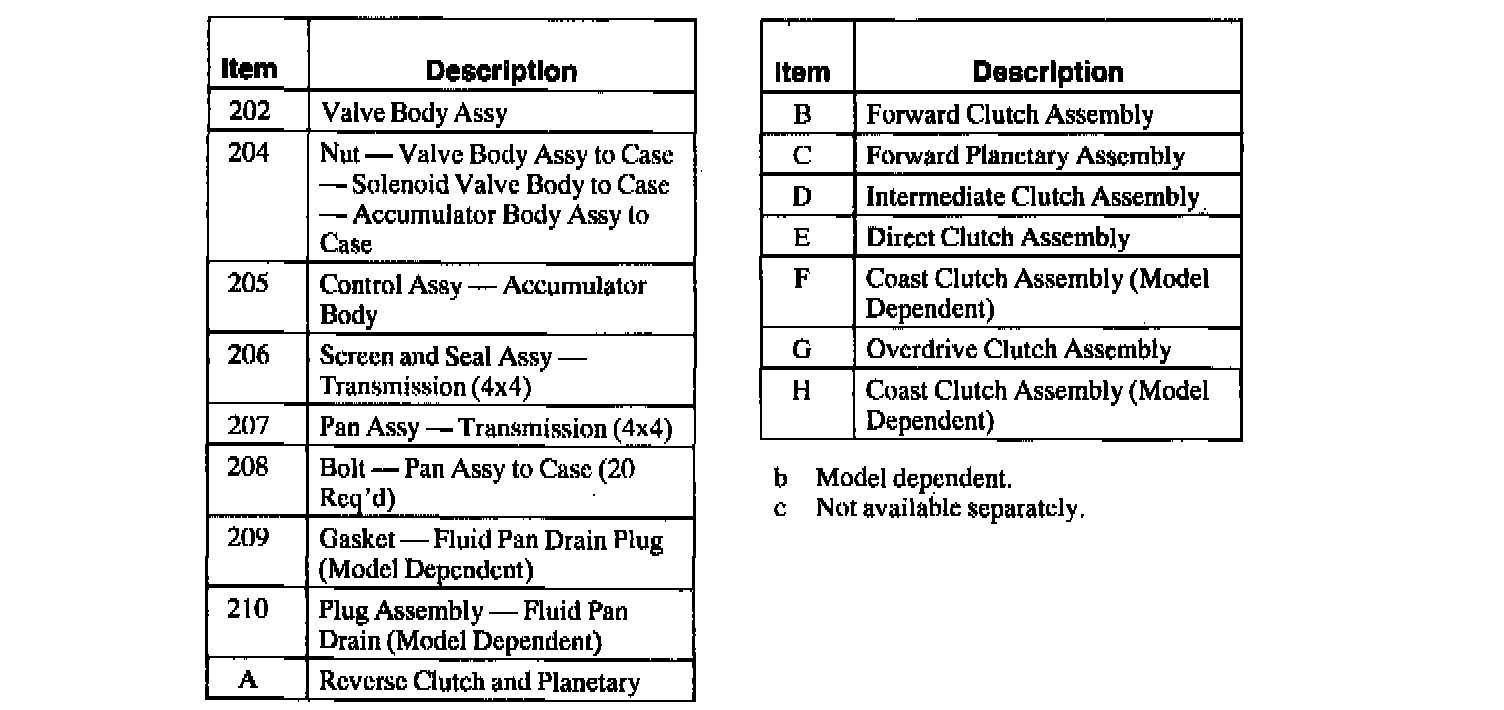

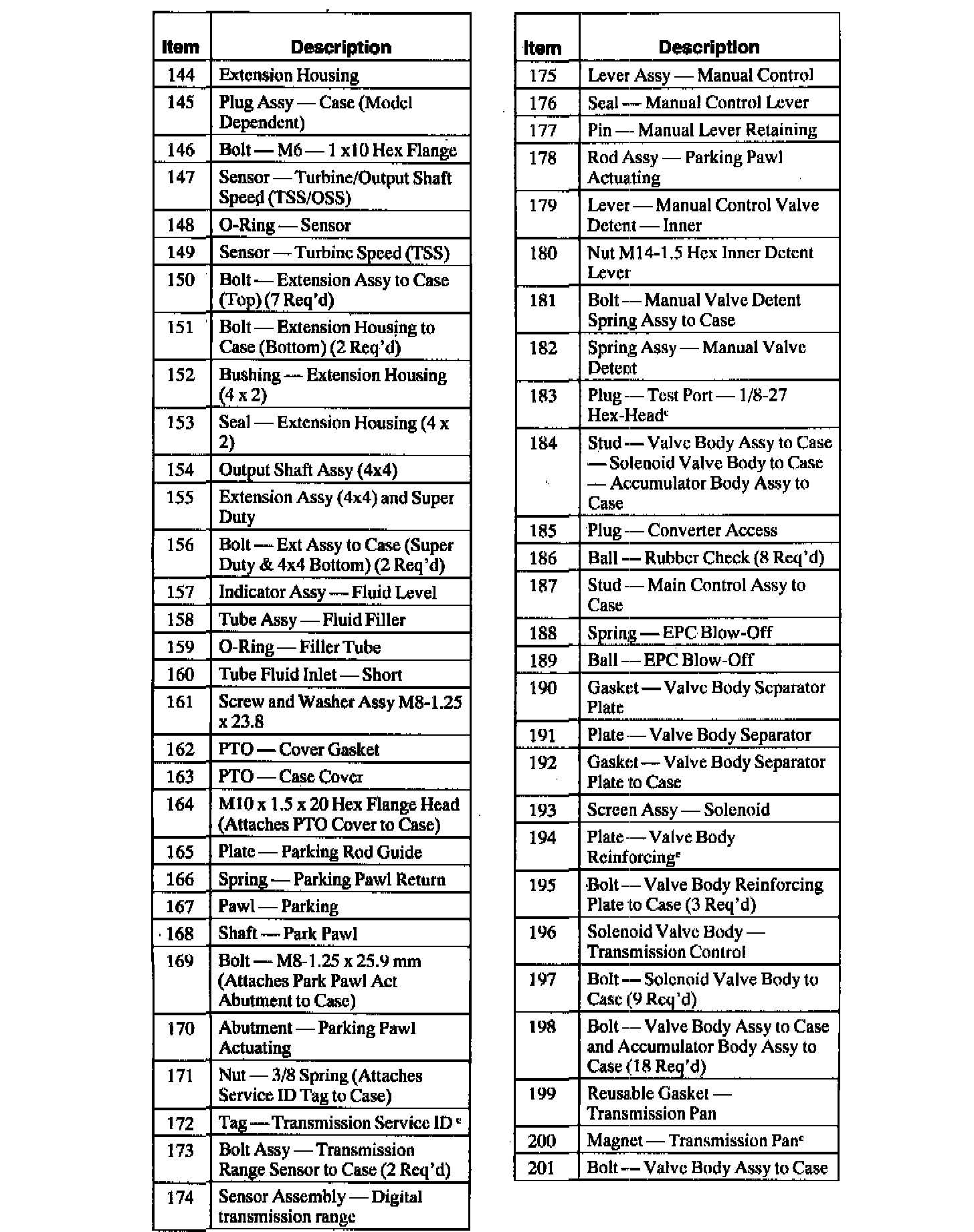

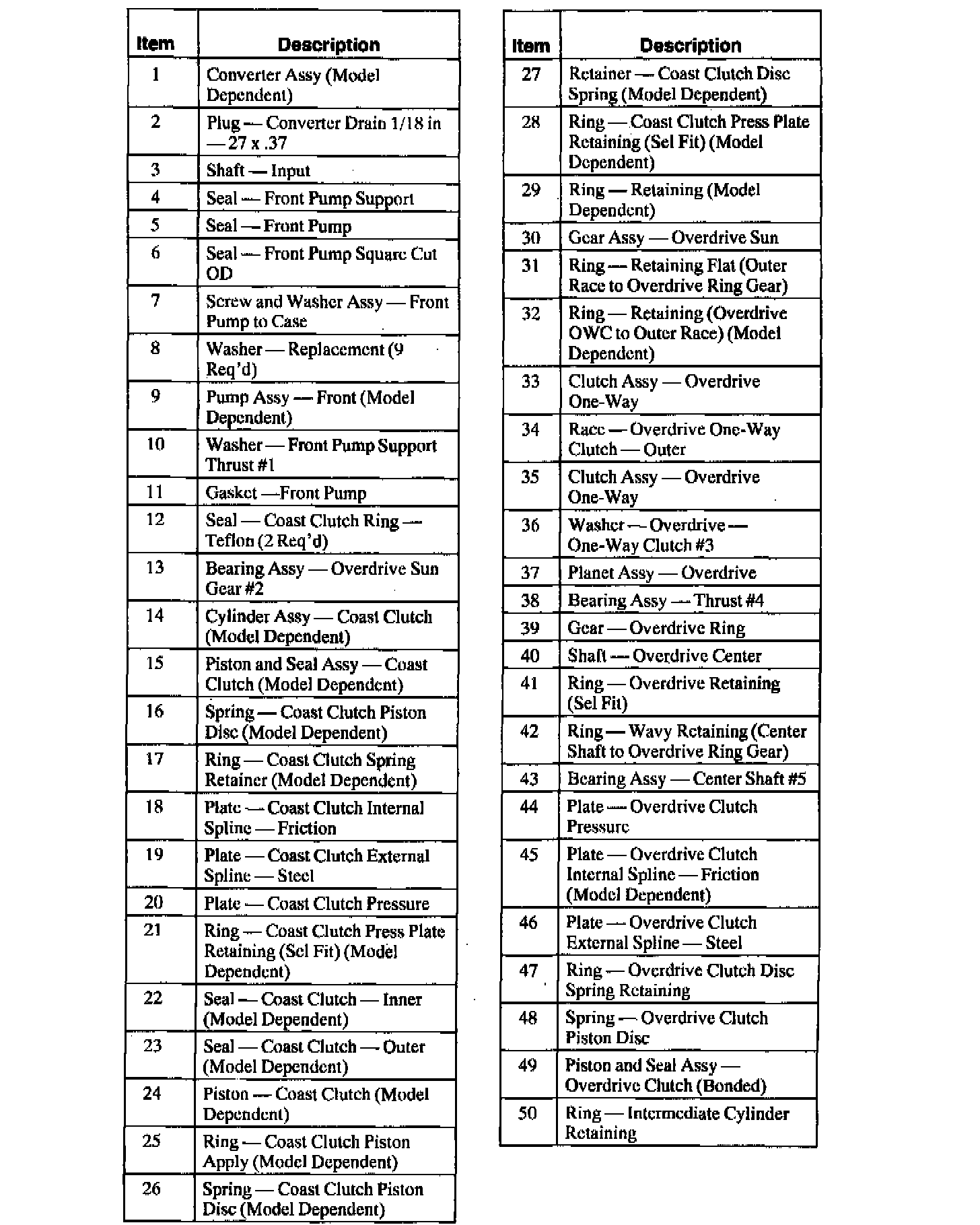

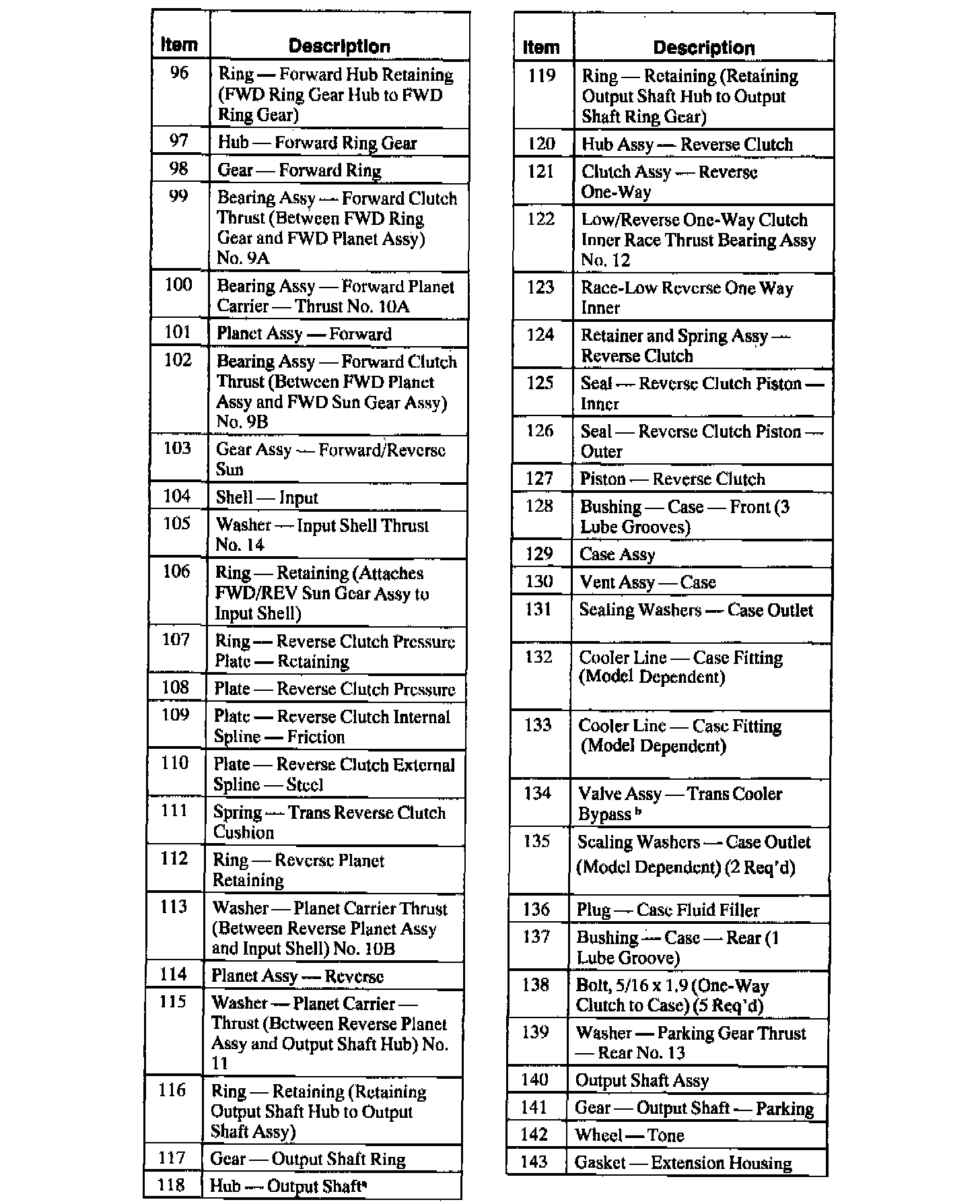

Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
1 of 8
2 of 8
3 of 8
4 of 8
5 of 8
6 of 8
7 of 8
8 of 8
