Home >> Ford >> 2000 >> Excursion 4WD V10-6.8L VIN S >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Module Controlled >> Test K: Doors Do Not Lock/Unlock Using The Keyless Entry Keypad

Test K: Doors Do Not Lock/Unlock Using The Keyless Entry Keypad

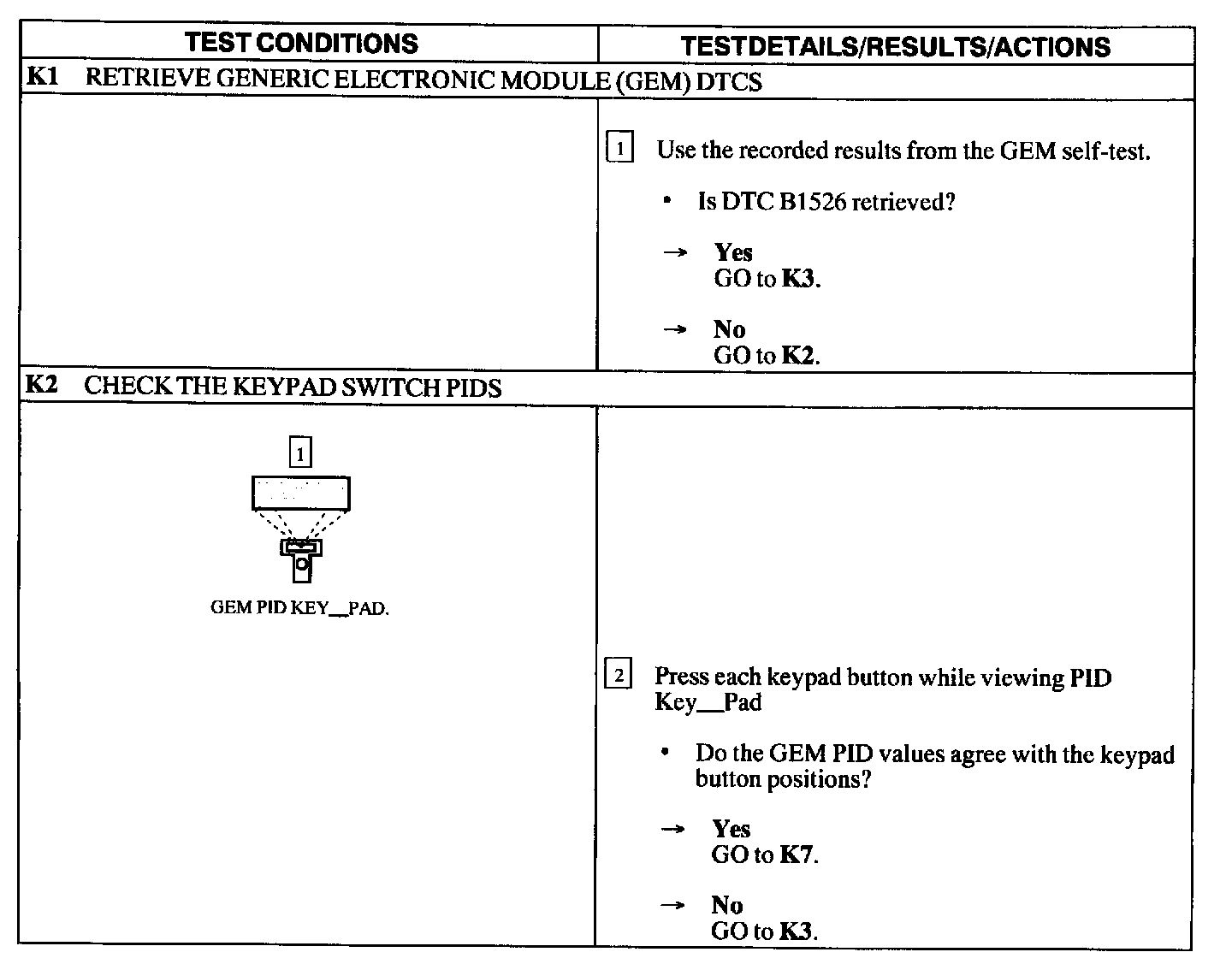

K1 - K2:

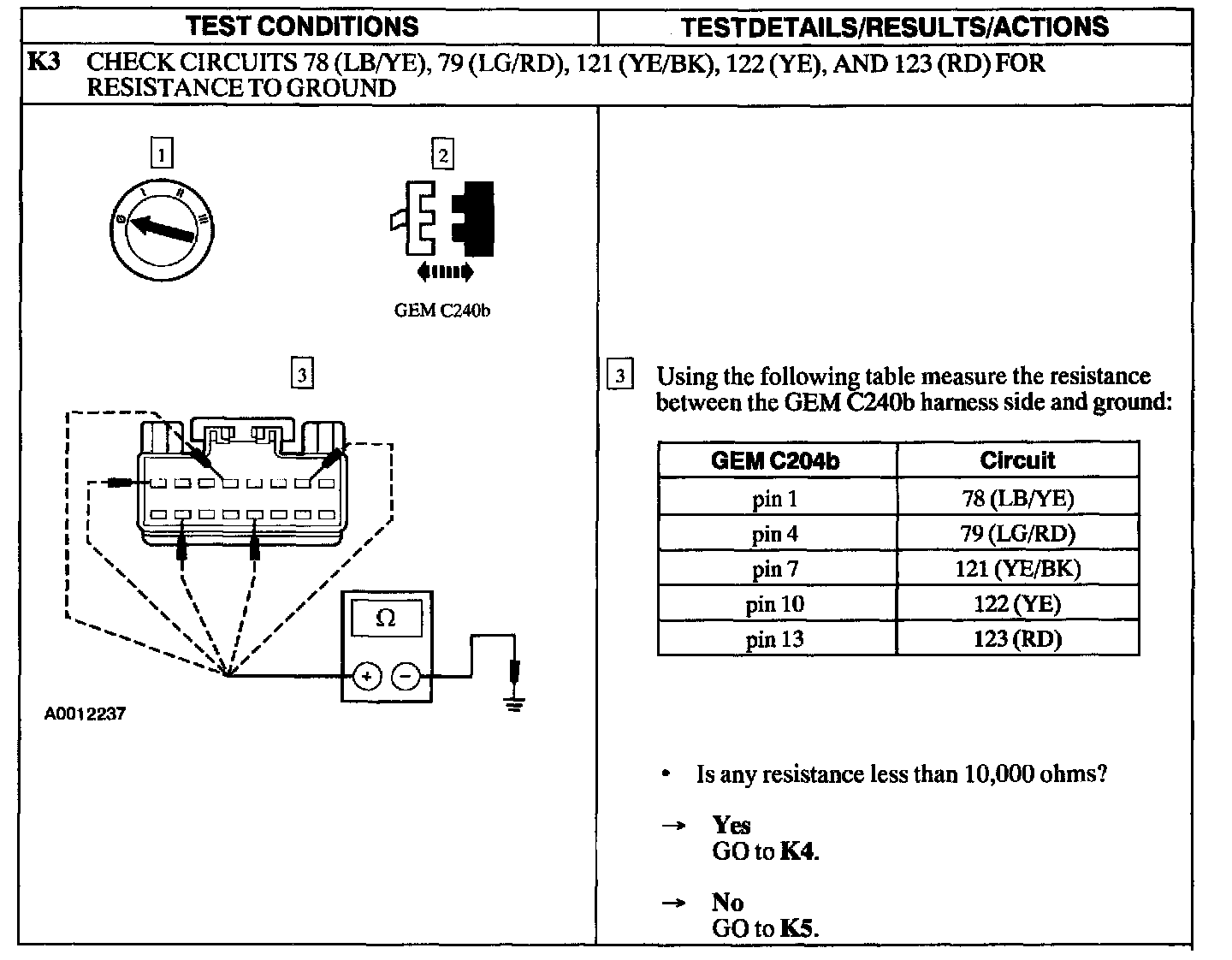

K3:

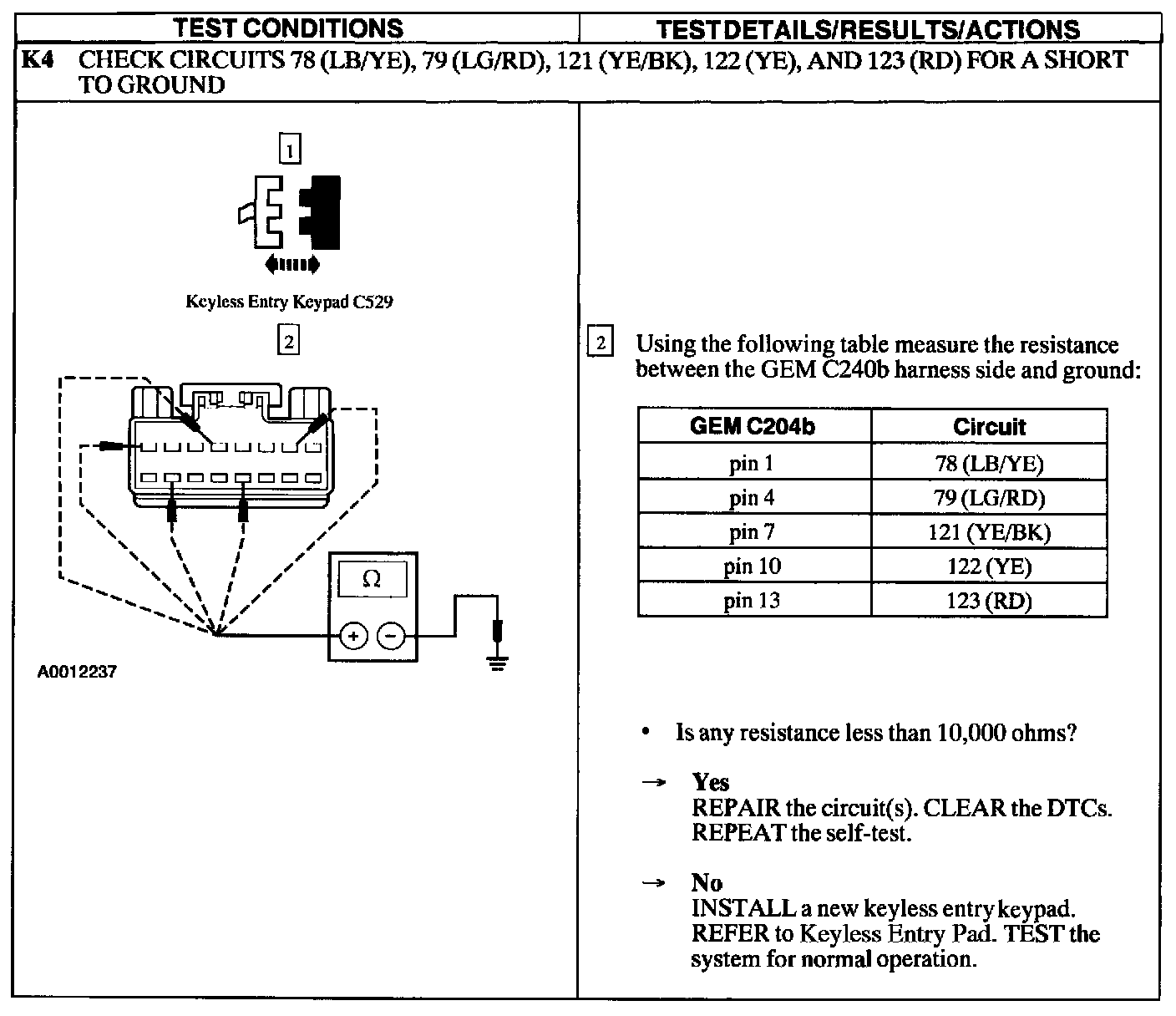

K4:

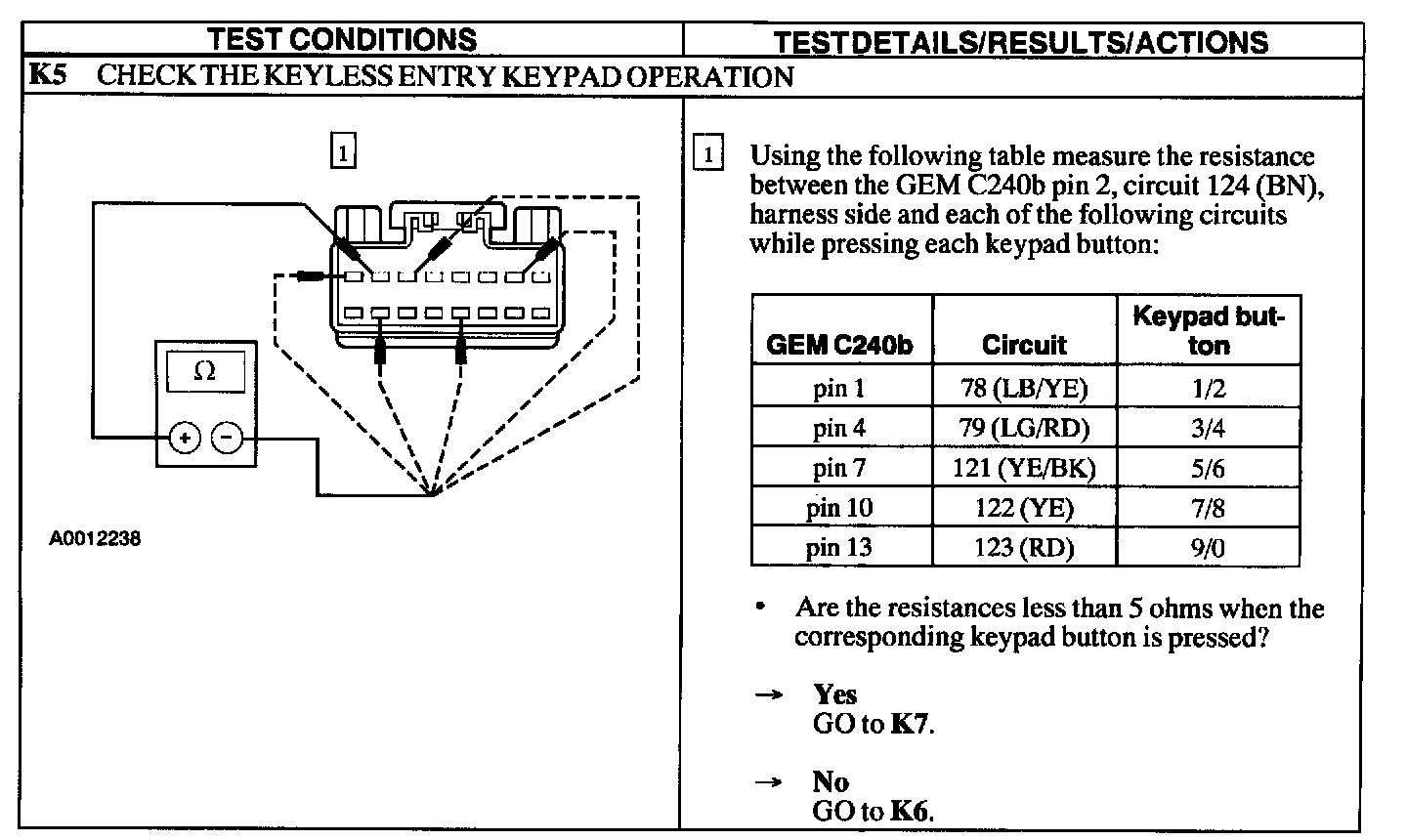

K5:

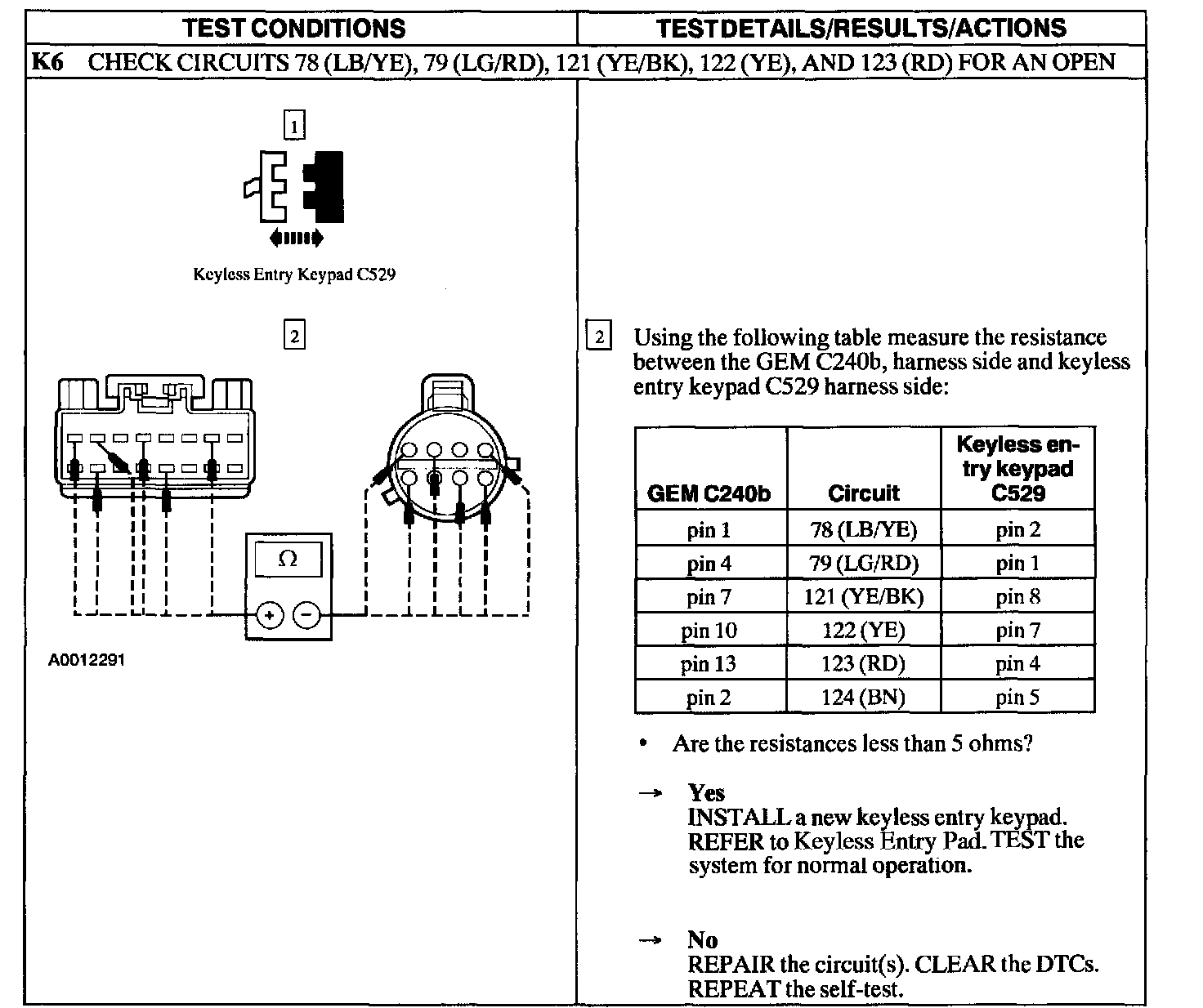

K6:

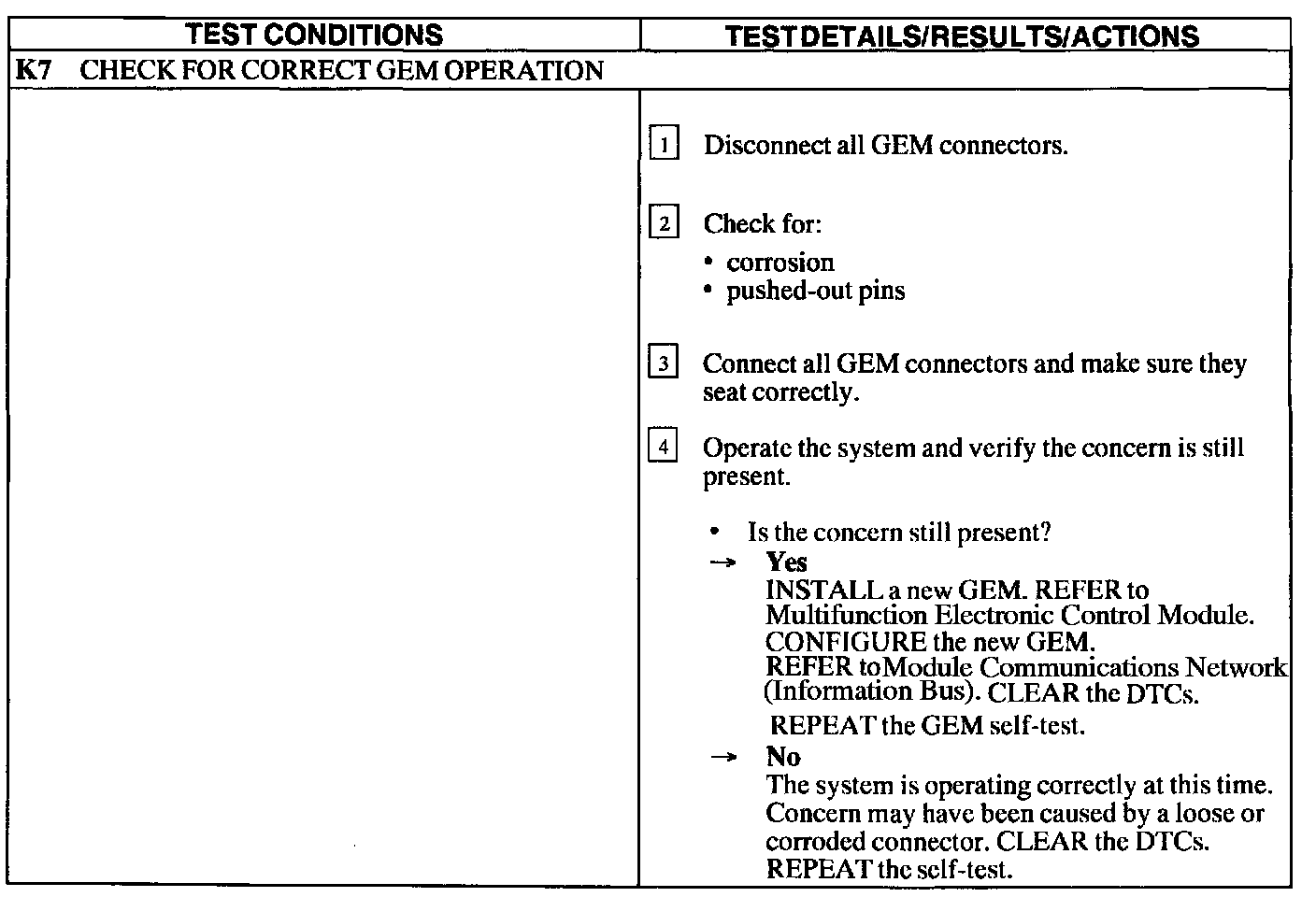

K7:
