Home >> Ford >> 1996 >> Explorer 4WD V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

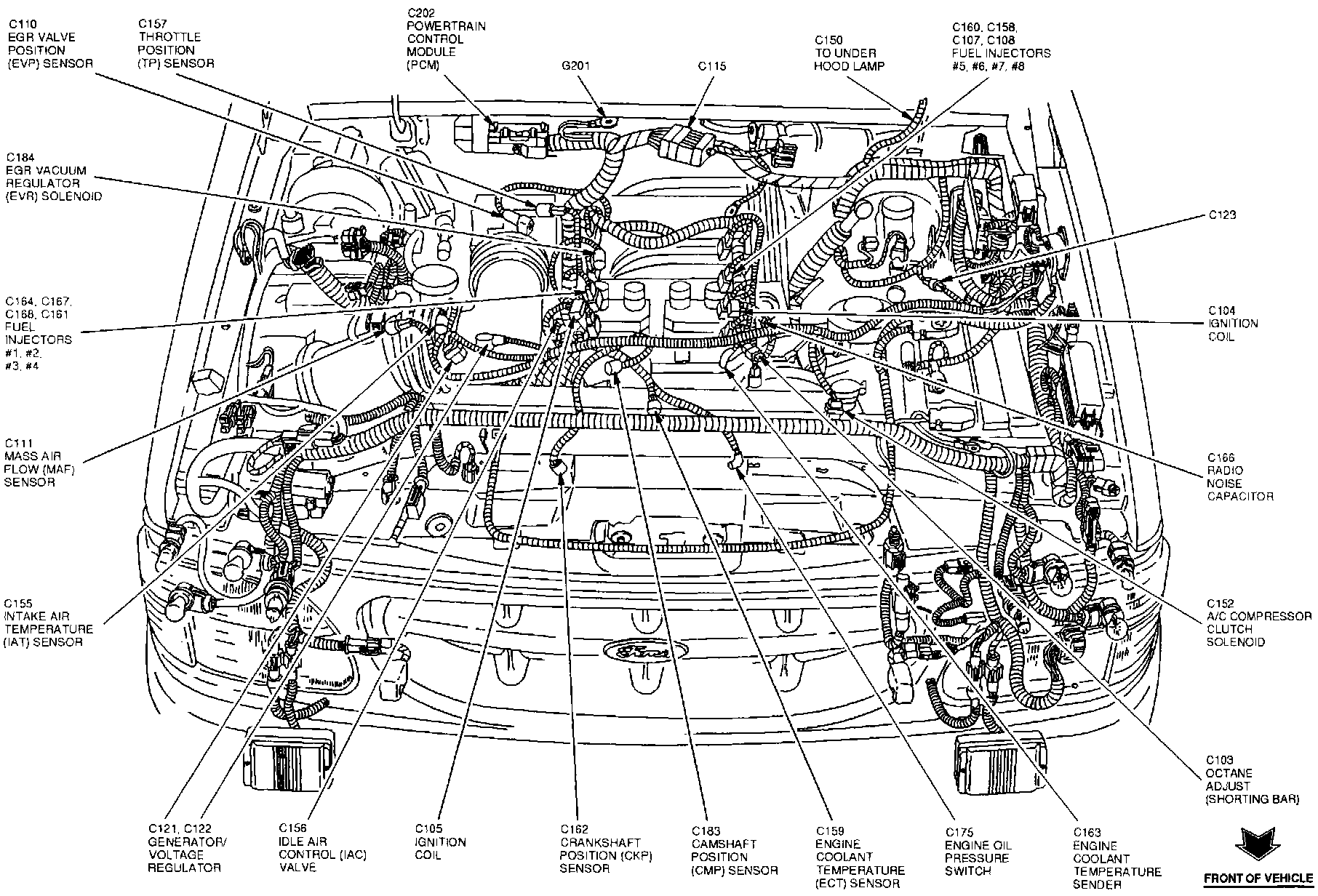

Engine View:





The Powertrain Control Module is mounted through cowl panel.
