GEM Module

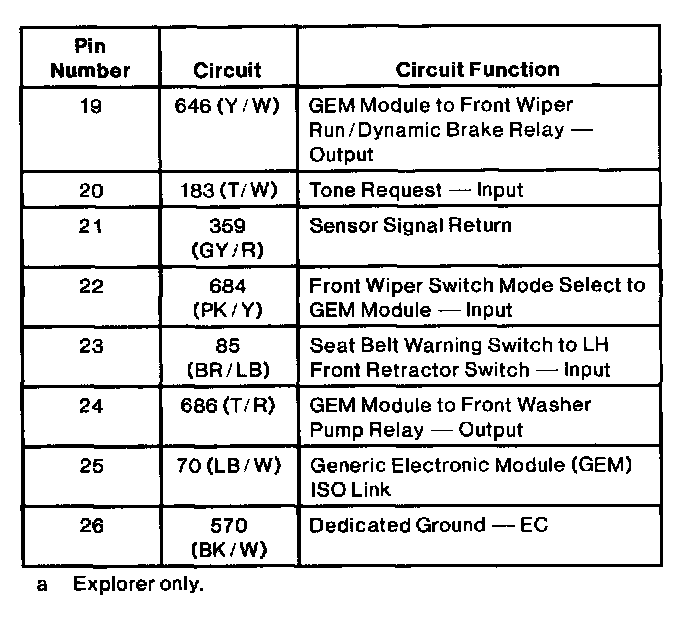

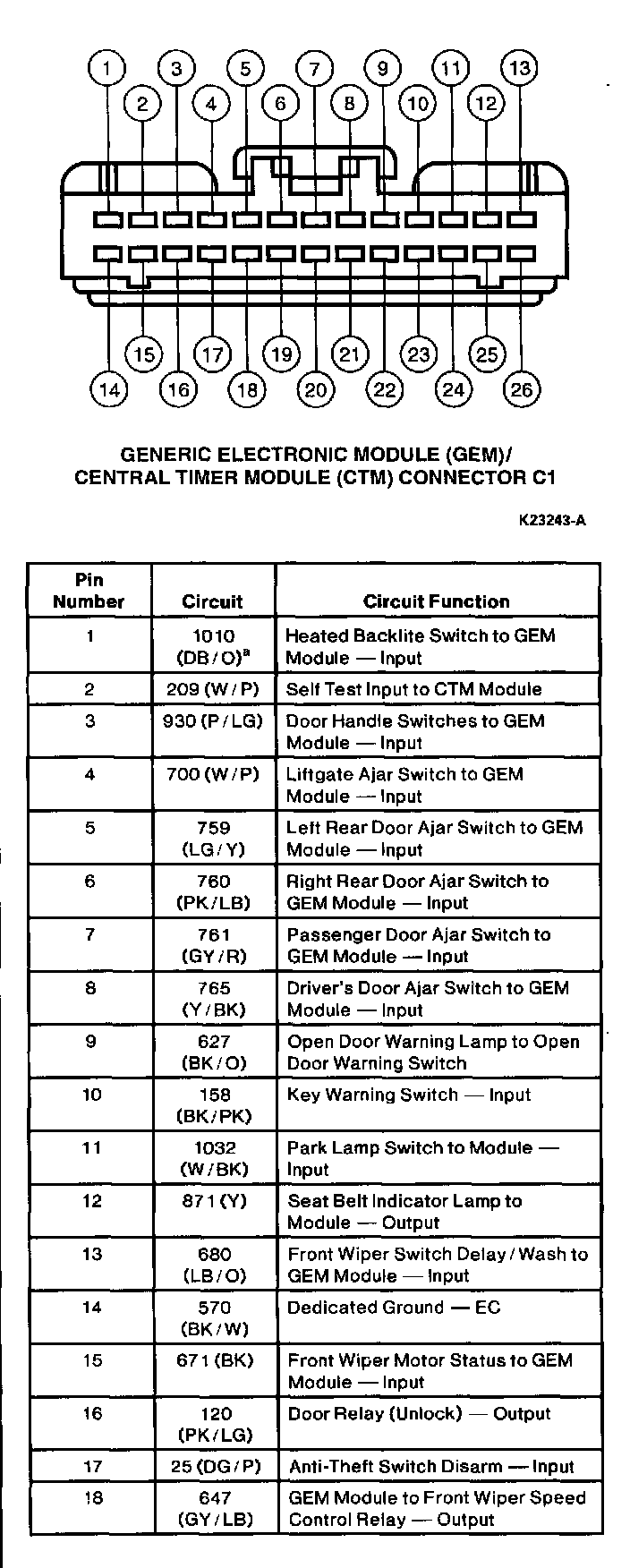

GEM/CTM Connector C1:



GEM/CTM Connector C1:

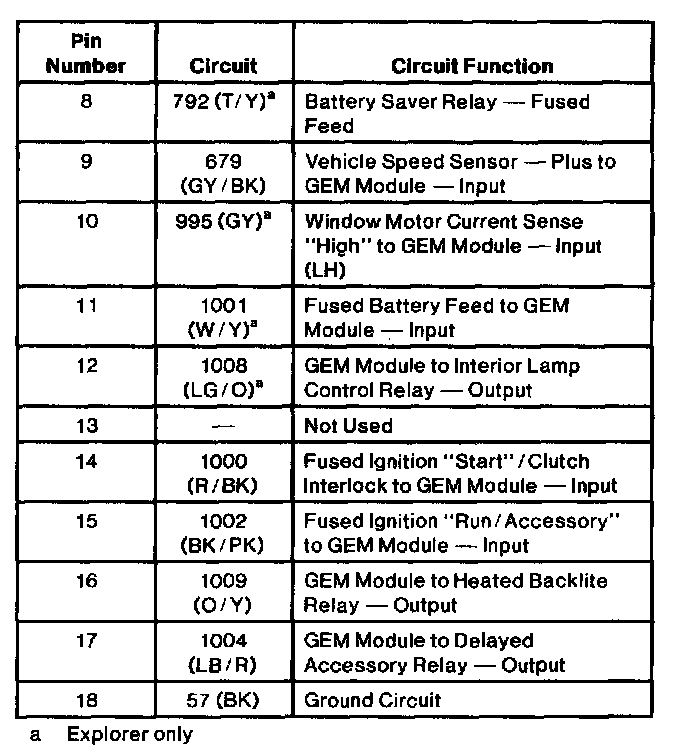

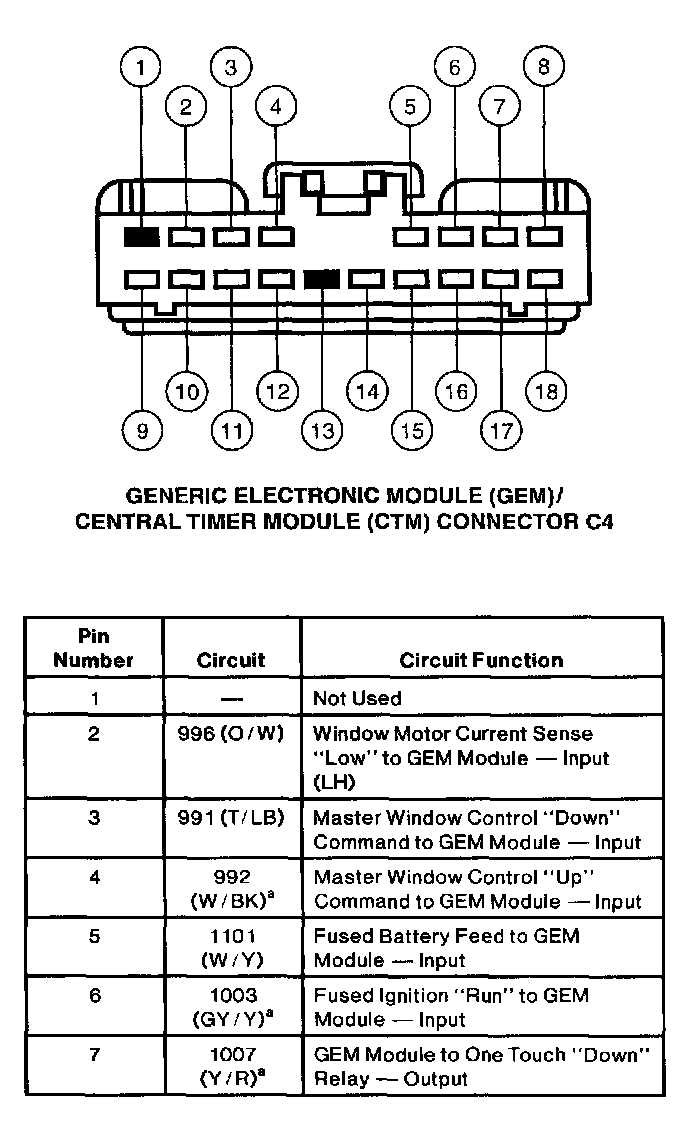

GEM/CTM Connector C4:



GEM/CTM Connector C4:
