Home >> Ford >> 1996 >> Explorer 4WD V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Module HVAC >> Electronic Climate Control Module

Electronic Climate Control Module

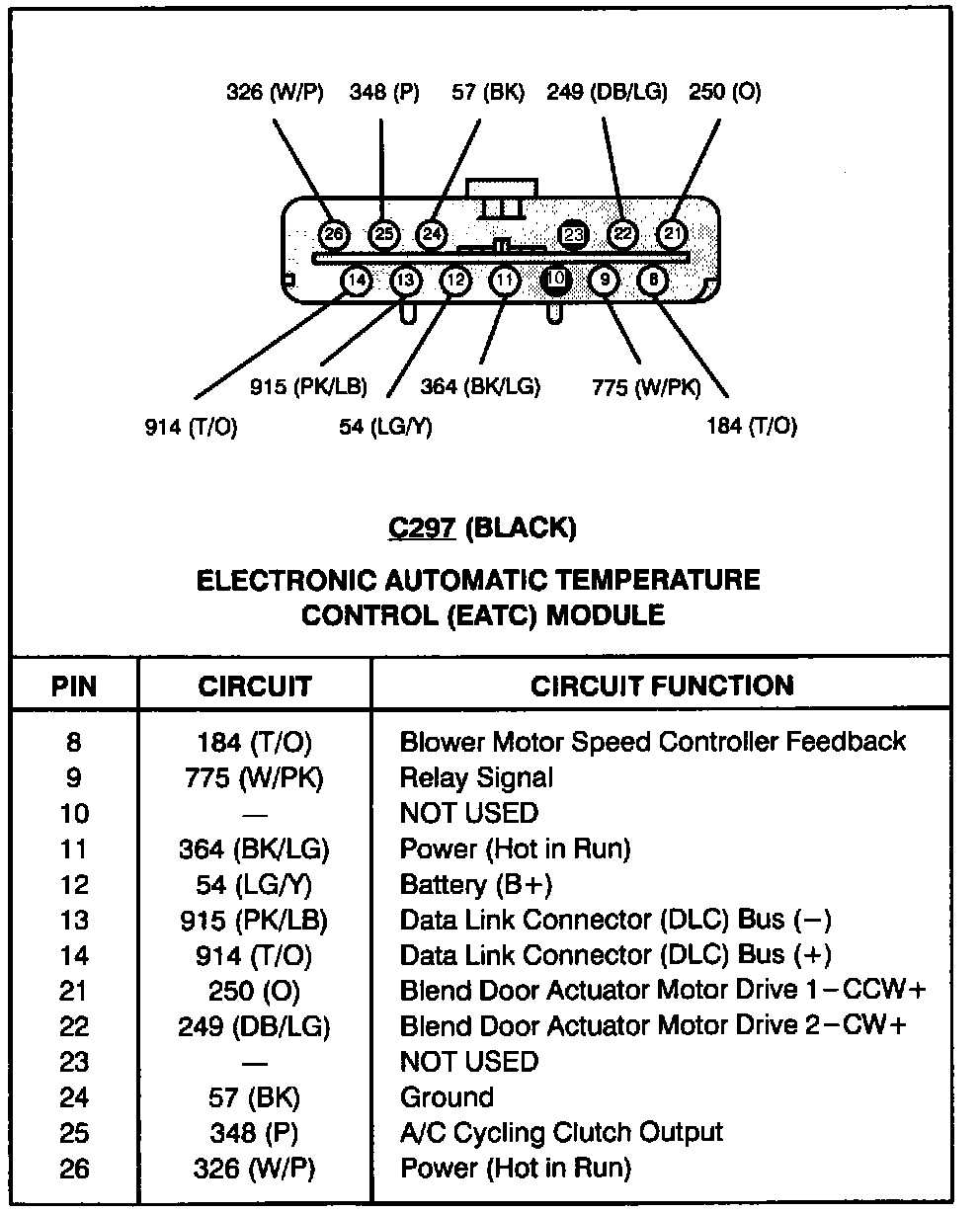

Electronic Automatic Temperature Control Module (C297):



Electronic Automatic Temperature Control Module (C298):
