lemon-mirror
:
Home
>>
Ford
>>
1996
>>
Explorer 4WD V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

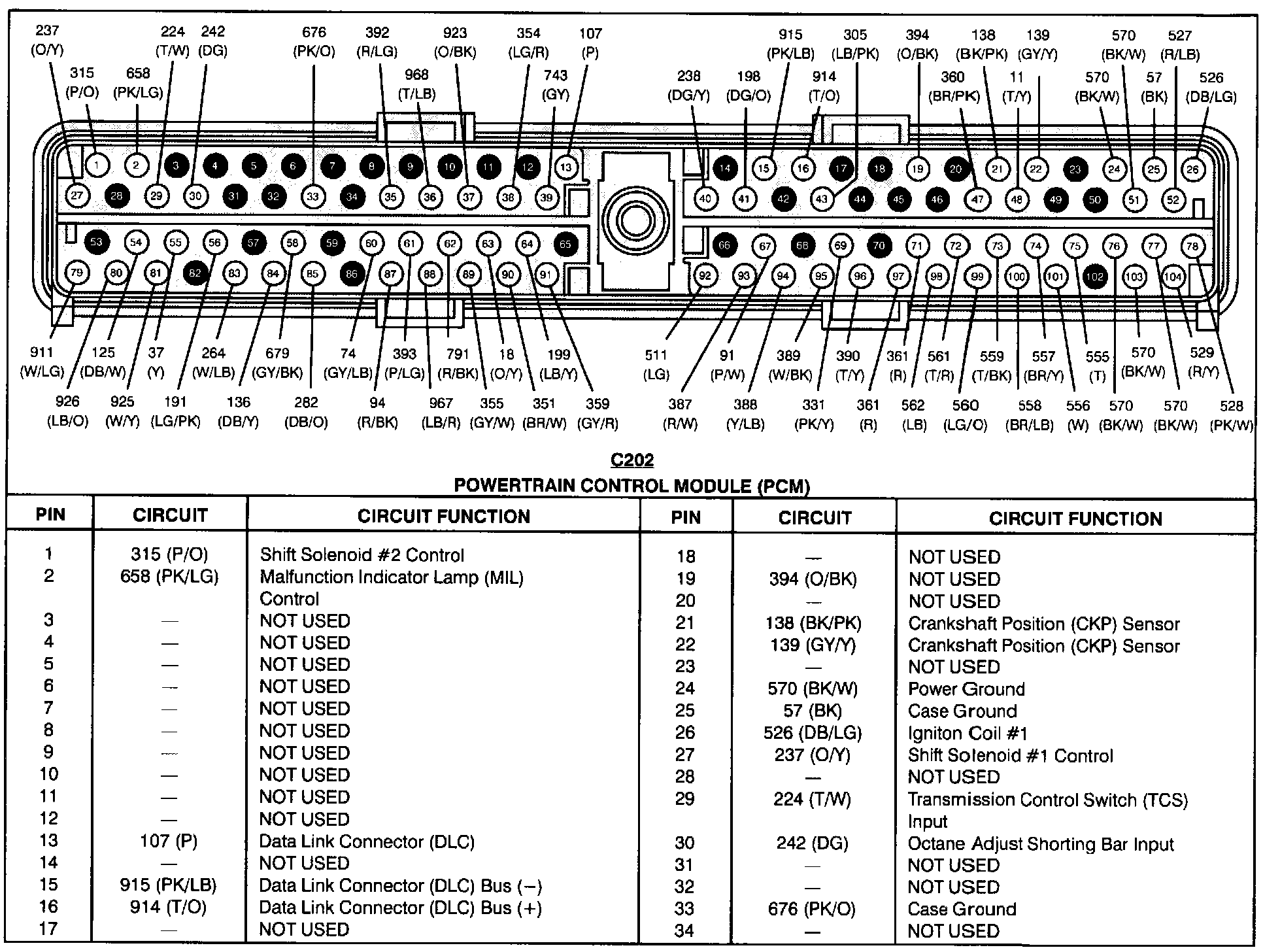

Powertrain Control Module (Part 1 Of 3):

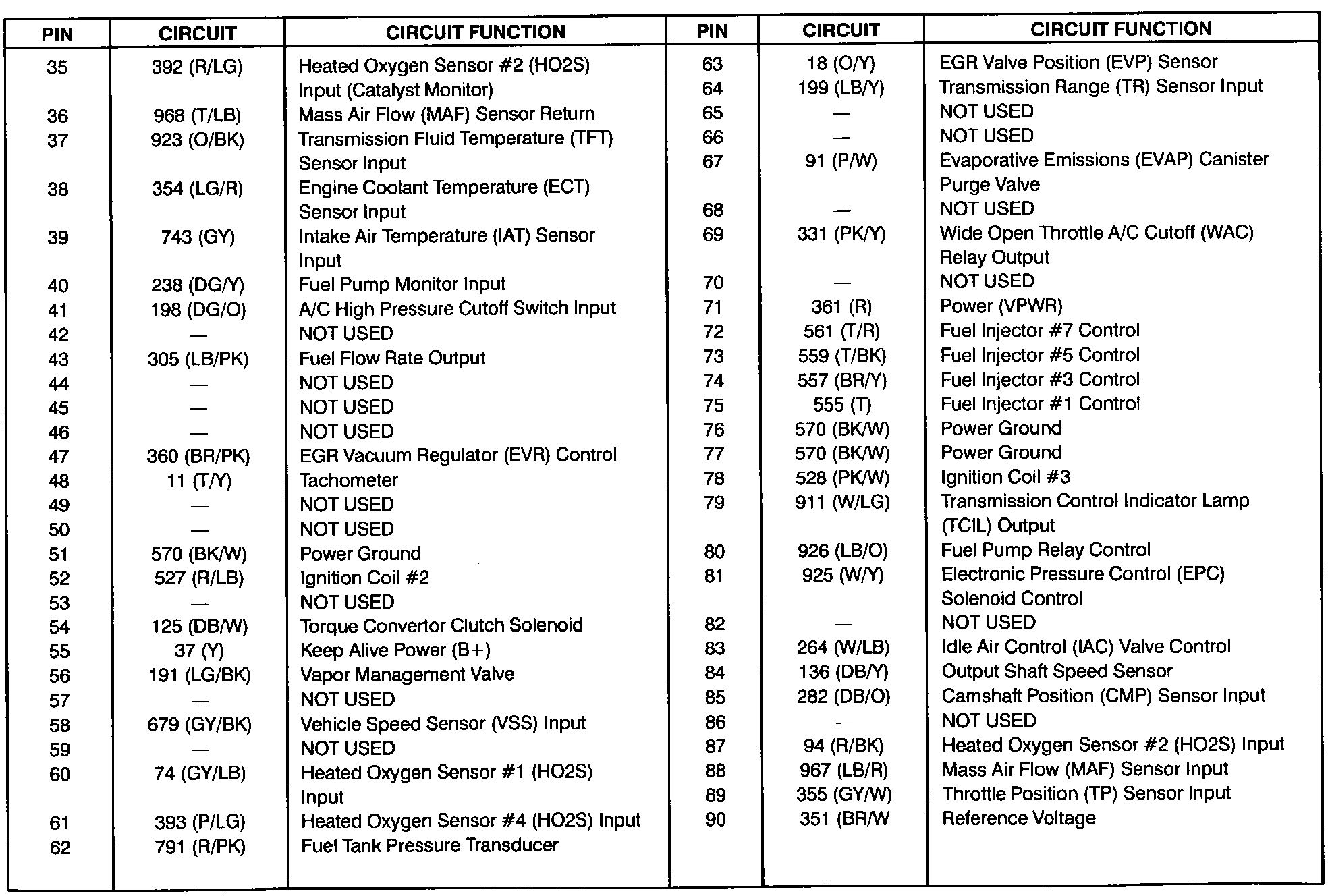

Powertrain Control Module (Part 2 Of 3):

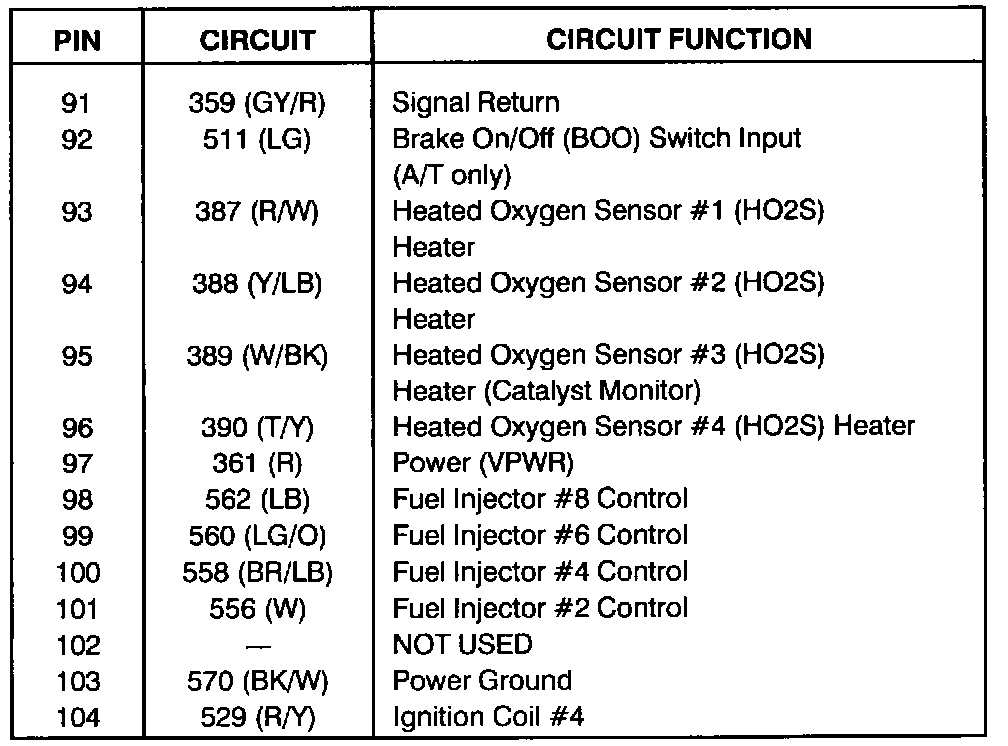

Powertrain Control Module (Part 3 Of 3):
