Home >> Ford >> 1996 >> Explorer 4WD V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

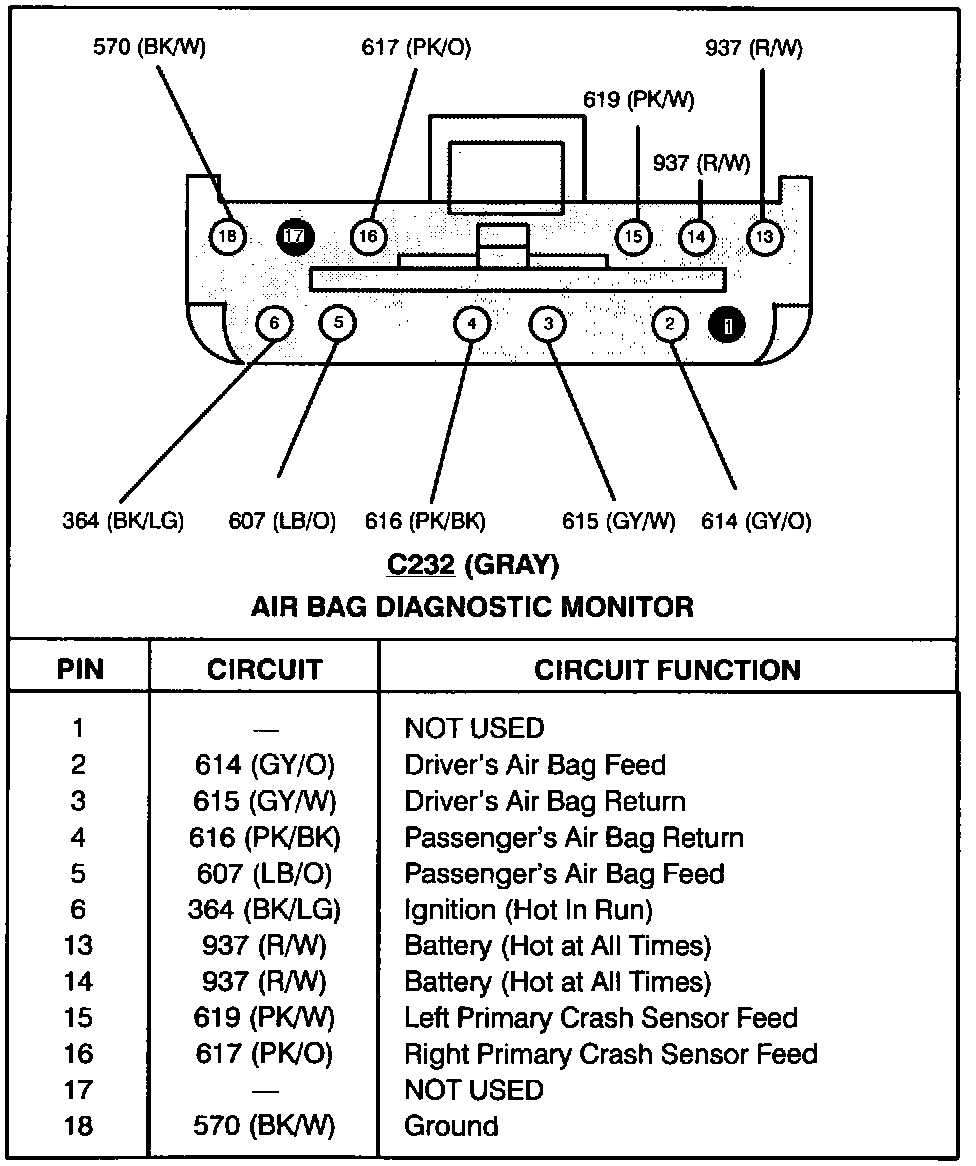

Air Bag Diagnostic Monitor (C232):

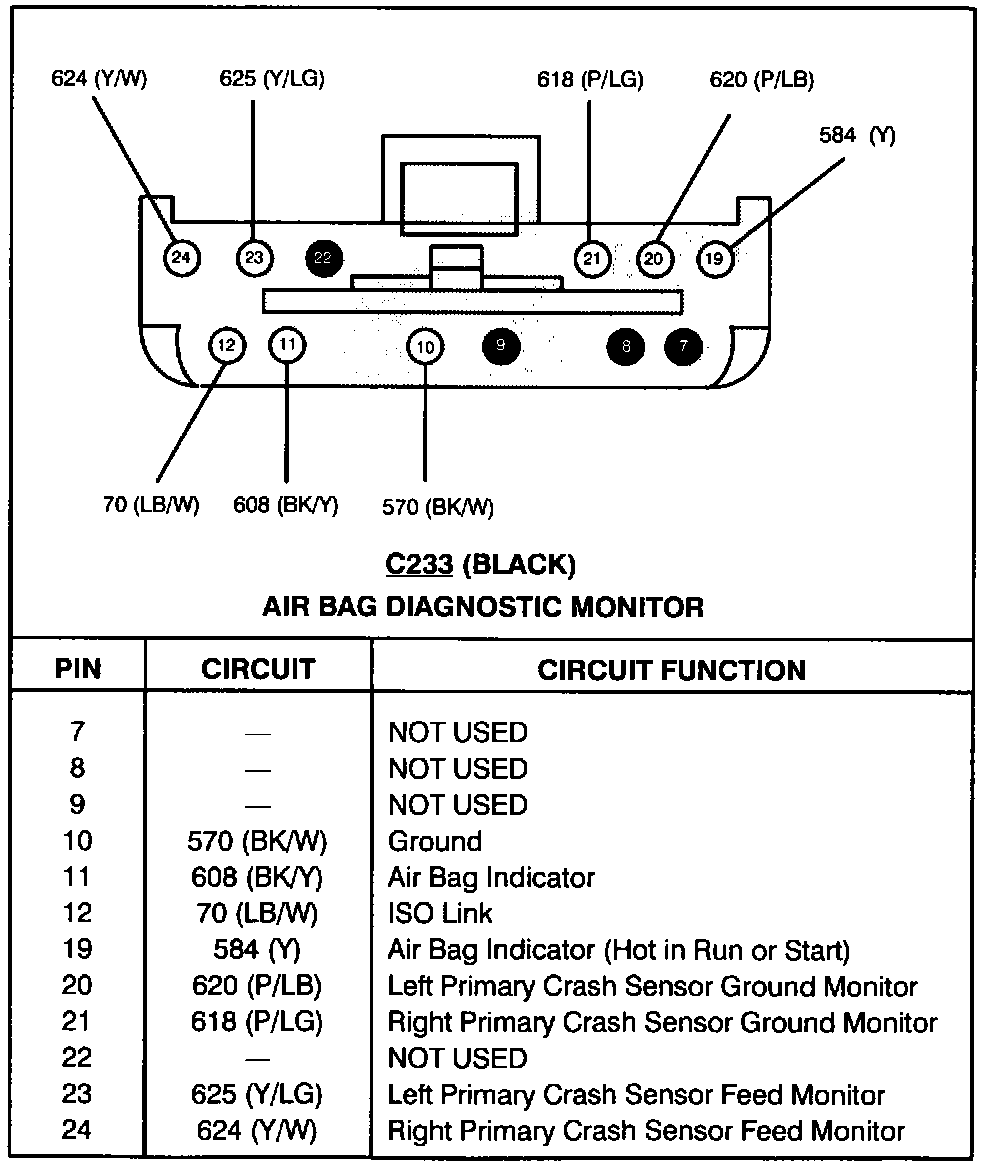

Air Bag Diagnostic Monitor (C233):
