X - Integrated Relay Control Module
>>
X54 - X56
X54 - X56

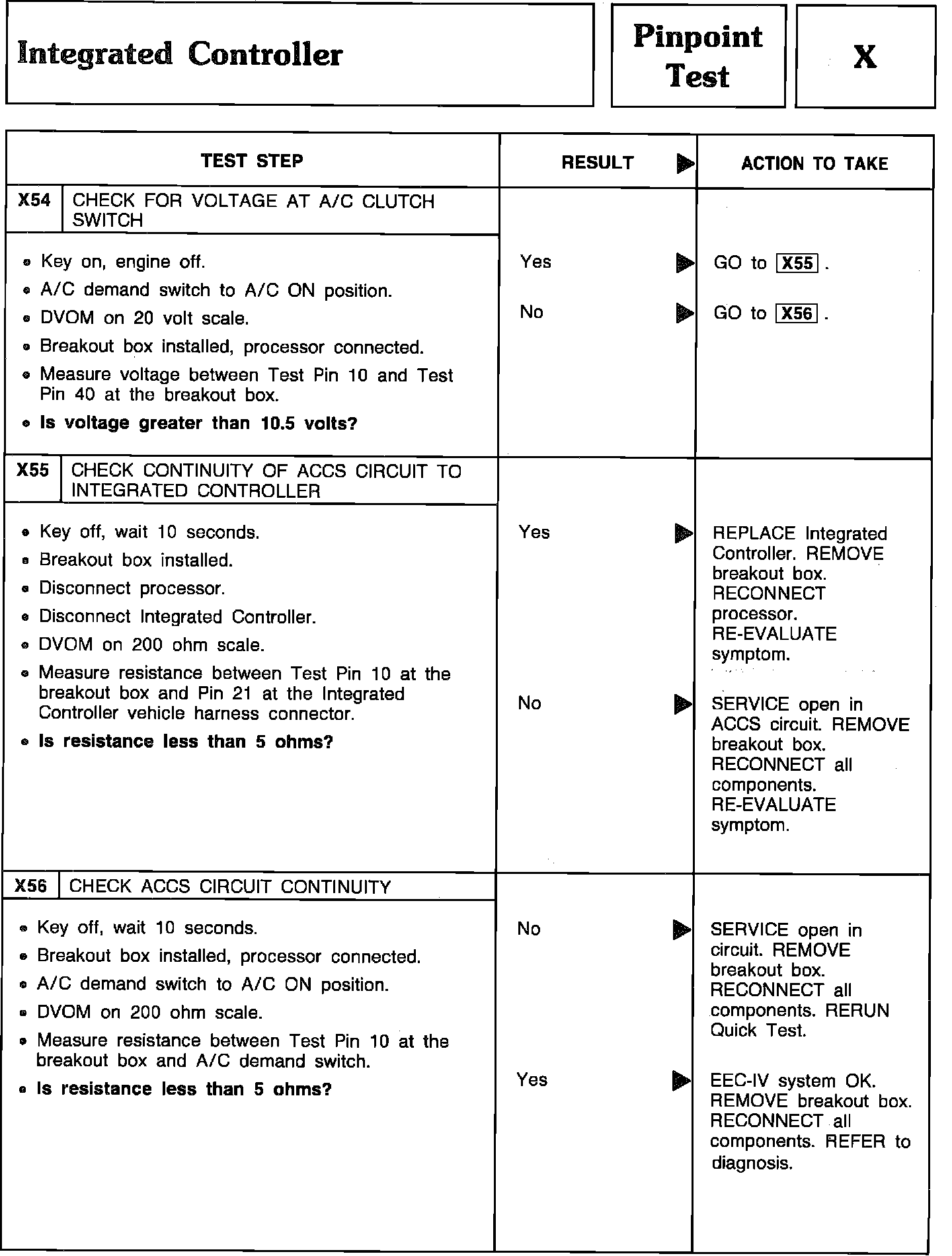

Pinpoint Test X54 Thru X56 - Integrated Controller:
