Home >> Ford >> 1990 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Integrated Relay Control Module >> X22 - X23

X22 - X23

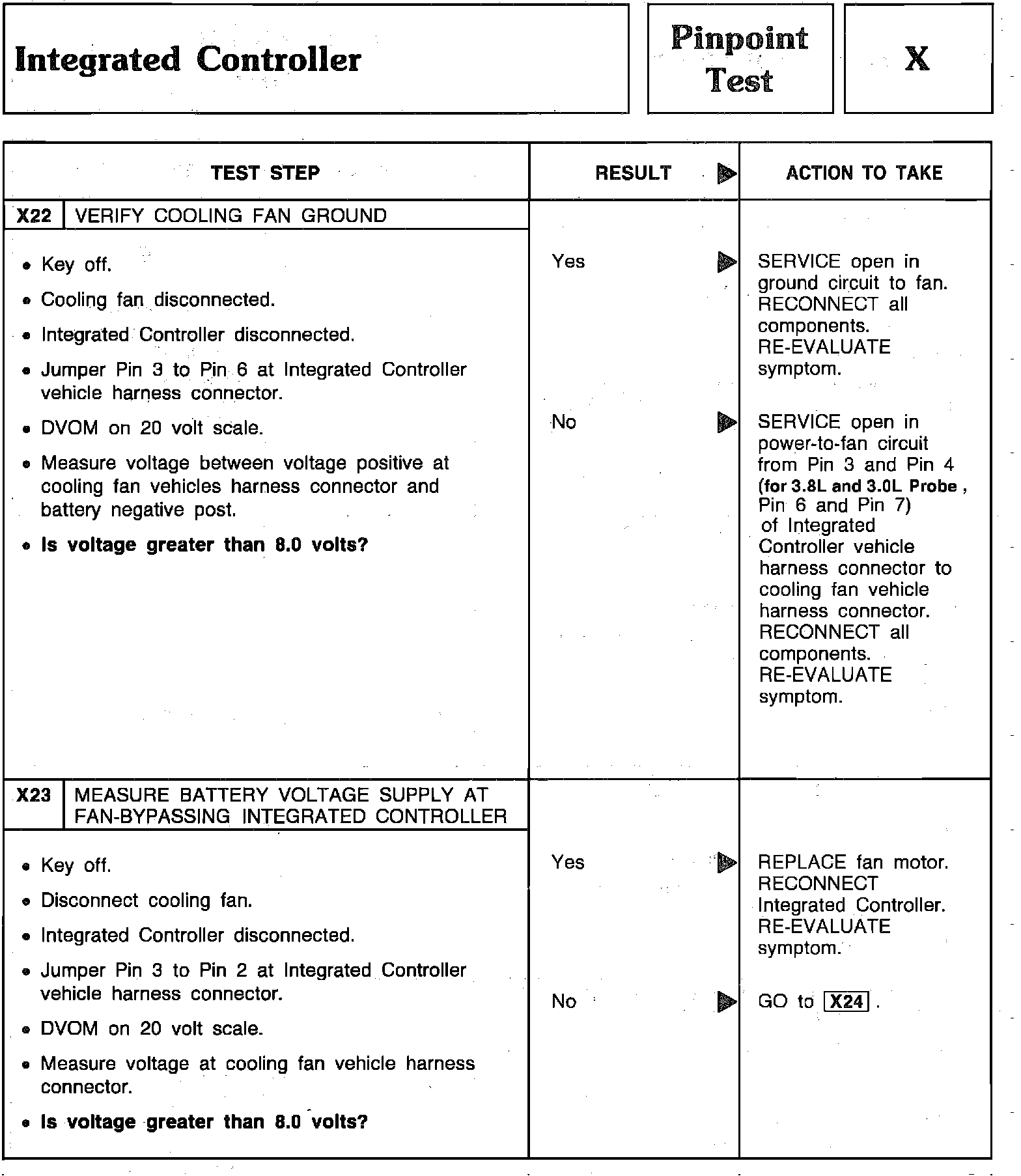

Pinpoint Test X22 & X23 - Integrated Controller:





*** UPDATED BY TSB #906B16 03-23-90
