Ford
>>
1990
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
X - Integrated Relay Control Module
>>
X16 - X17
X16 - X17

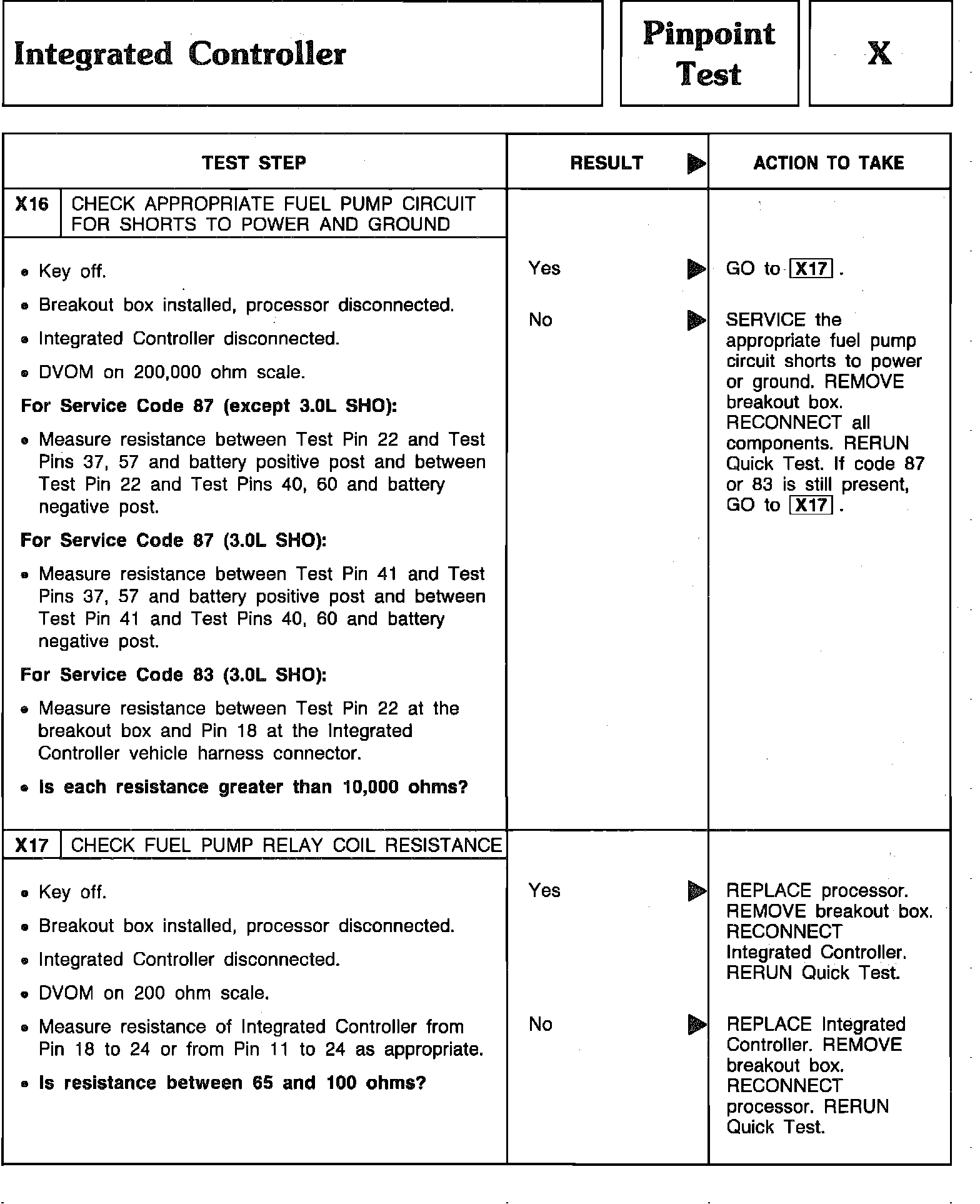

Pinpoint Test X16 & X17 - Integrated Controller:
