Home >> Ford >> 1990 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Locations >> Component Locations >> Engine Views

Engine Views

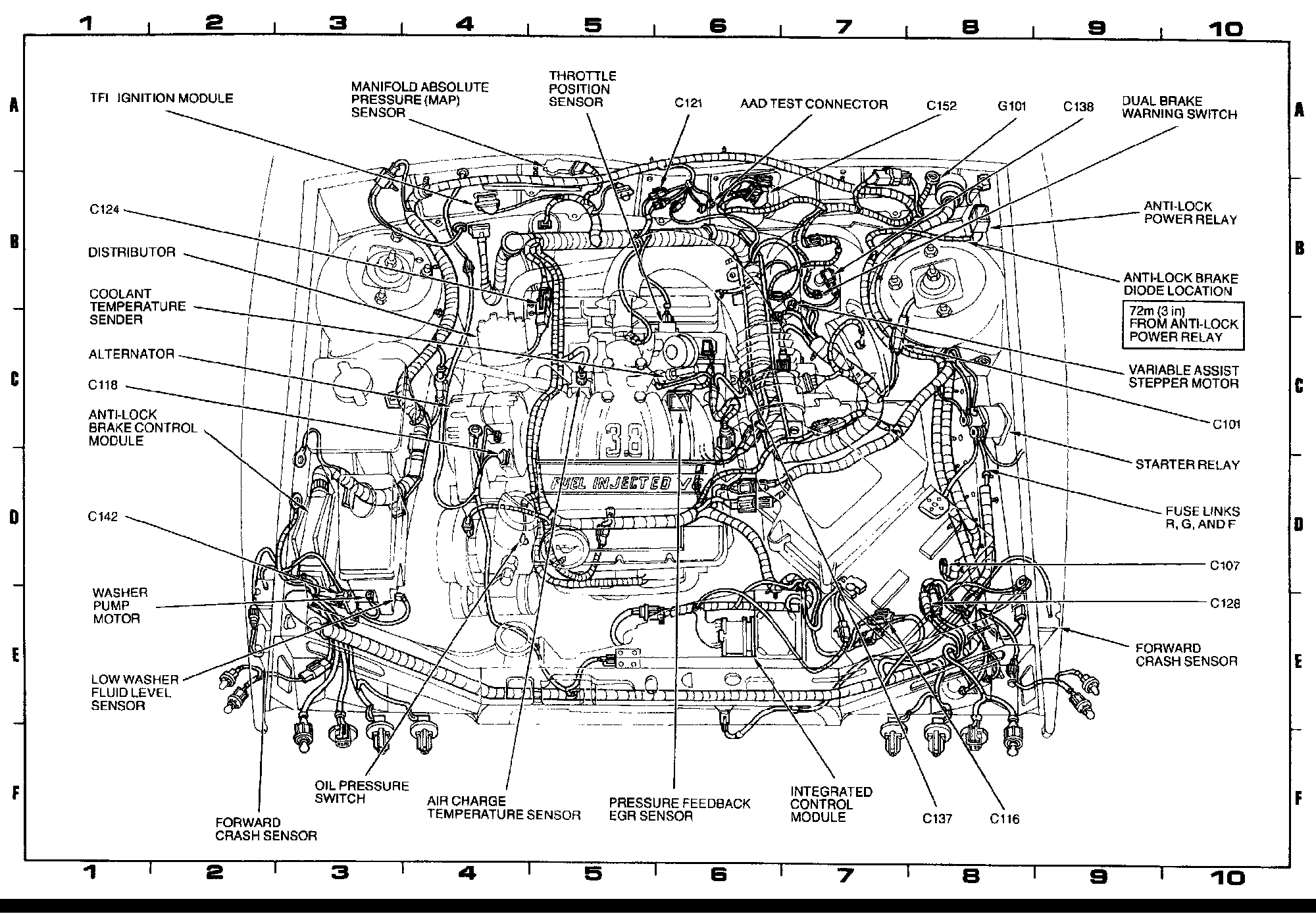

View 151-7 (Engine View):

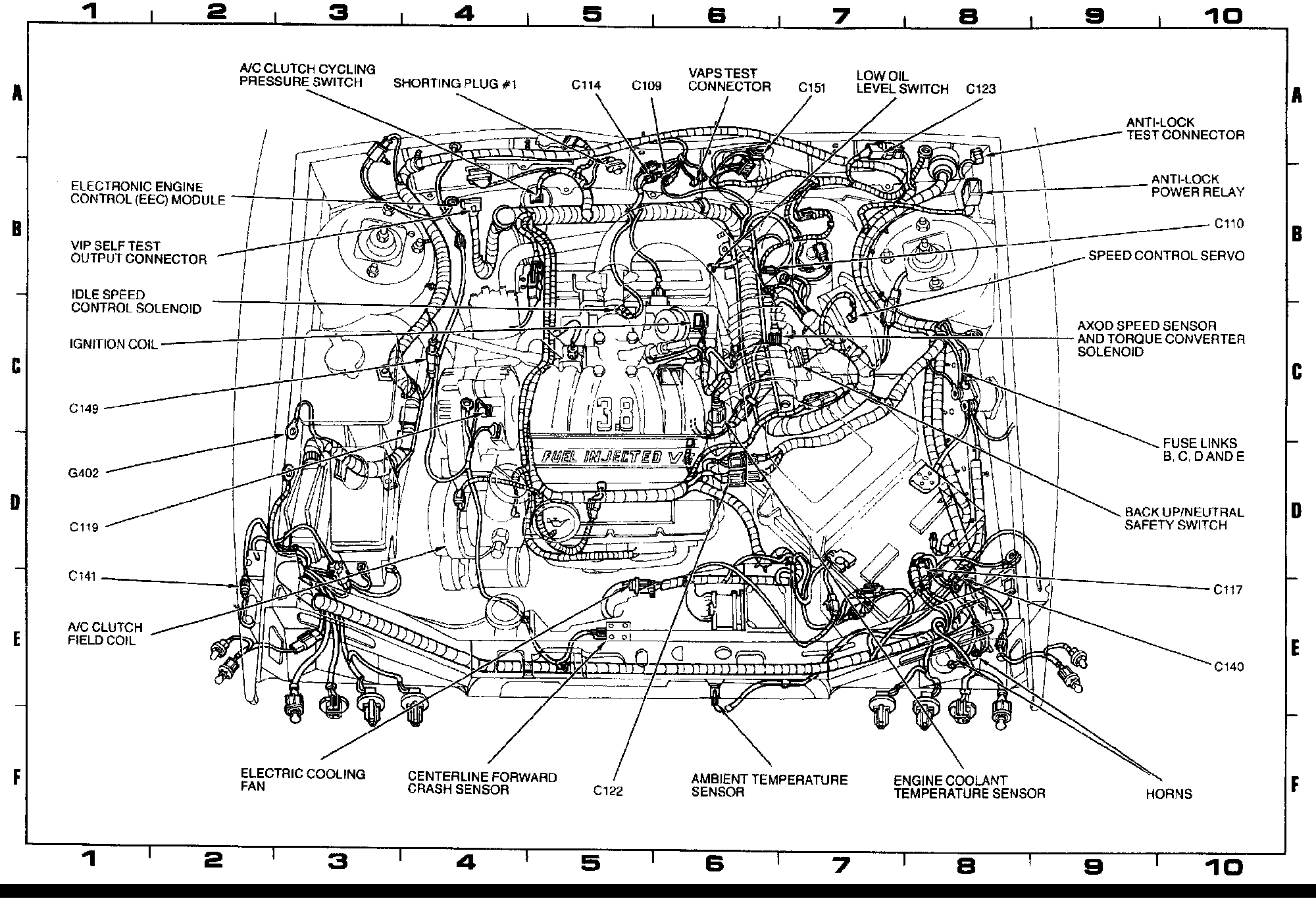

View 151-8 (Engine View):
