Powertrain Control Module C2 (Engine) 38 Way
Powertrain Control Module C2 (Engine) 38 Way

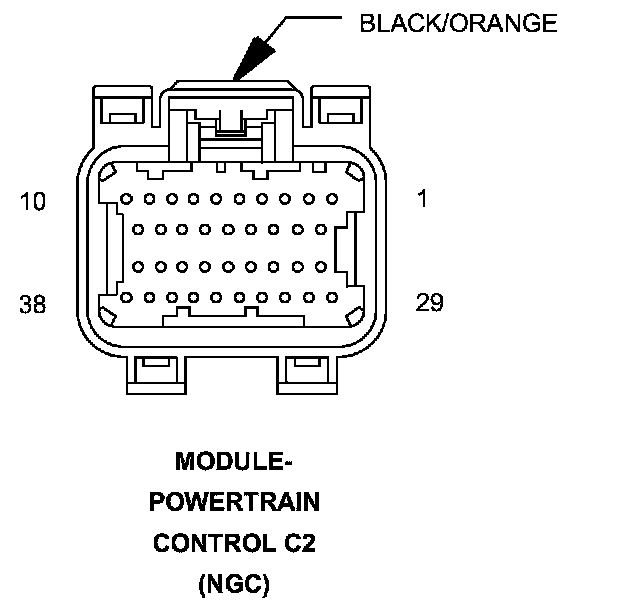

Connector C2 (NGC) - (ENGINE) 38 WAY

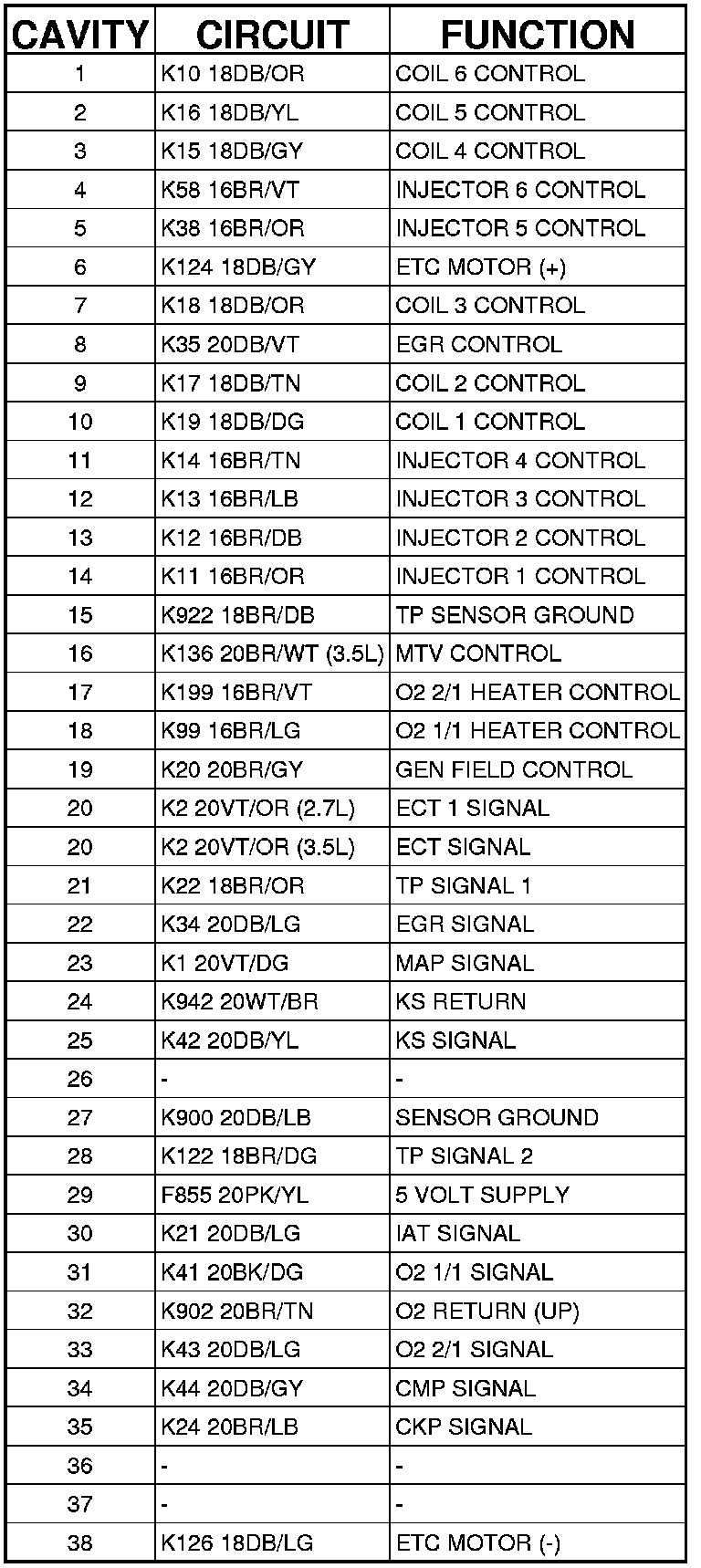

MODULE-POWERTRAIN CONTROL (NGC) - (ENGINE) 38 WAY
