Keyless Entry Module: Diagrams

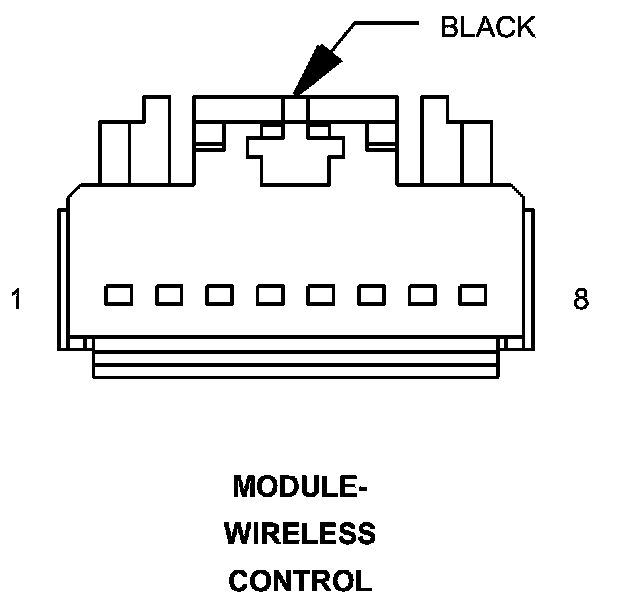

Connector - (INSTRUMENT PANEL) 8 WAY

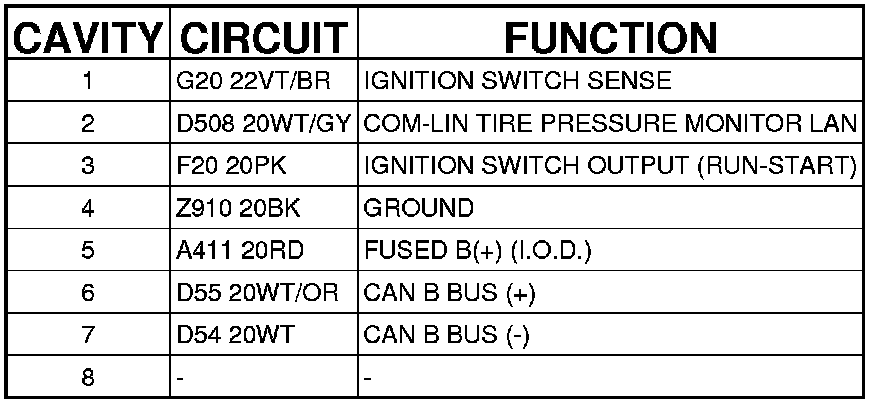

MODULE-WIRELESS CONTROL - (INSTRUMENT PANEL) 8 WAY
