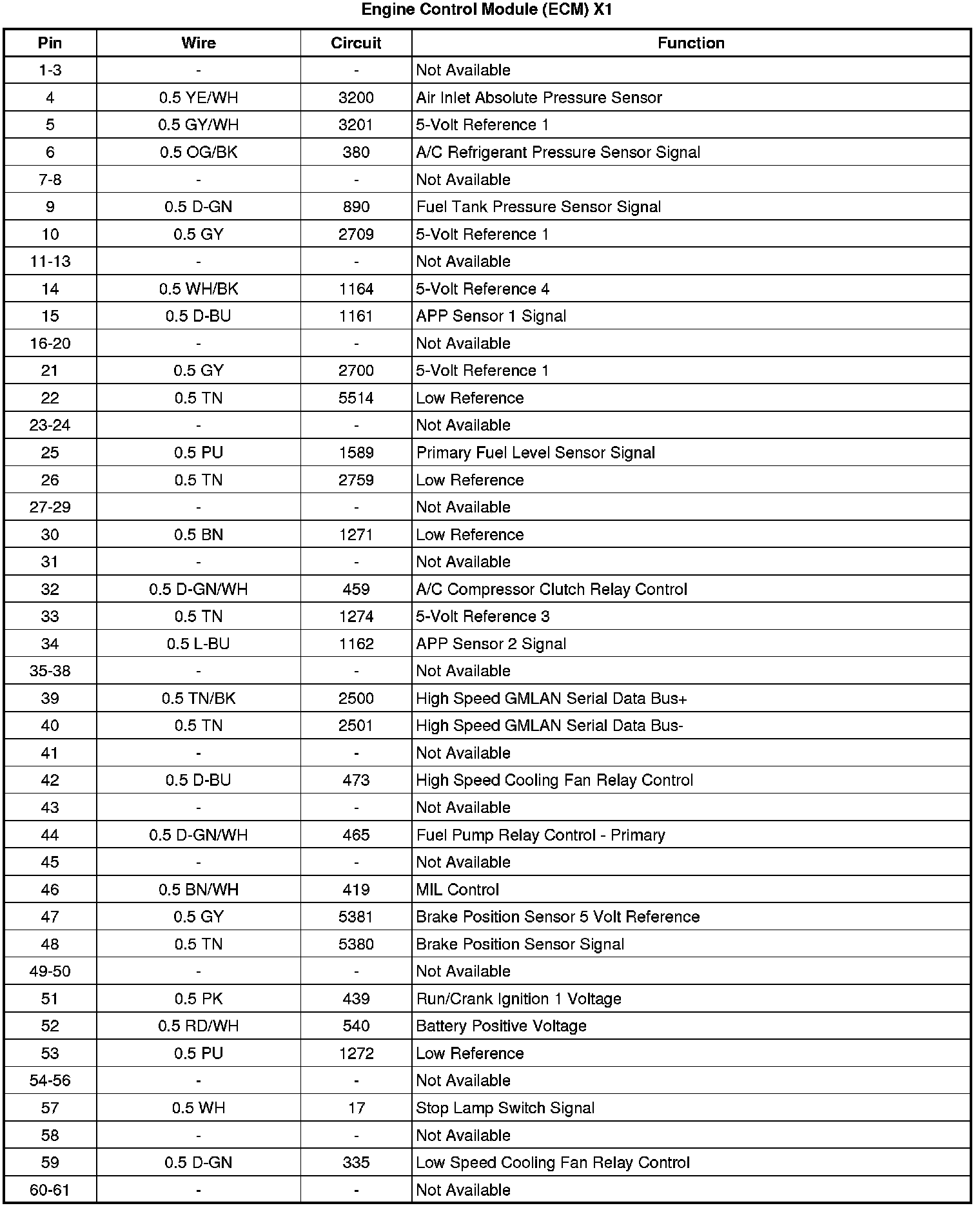

Home >> Chevrolet >> 2013 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Engine Control Module (ECM) X1
