Air Bag Control Module
>>
Inflatable Restraint Roof Rail Module - Driver
Inflatable Restraint Roof Rail Module - Driver

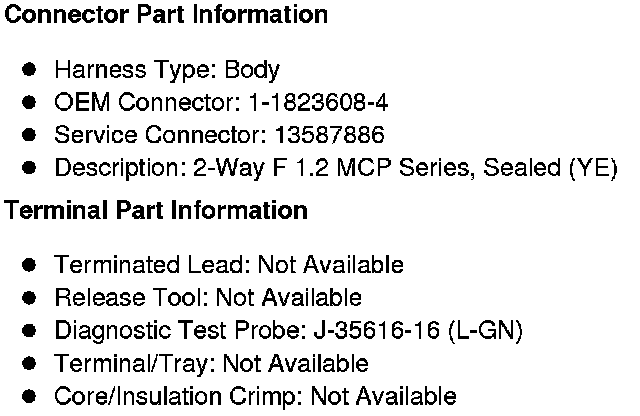

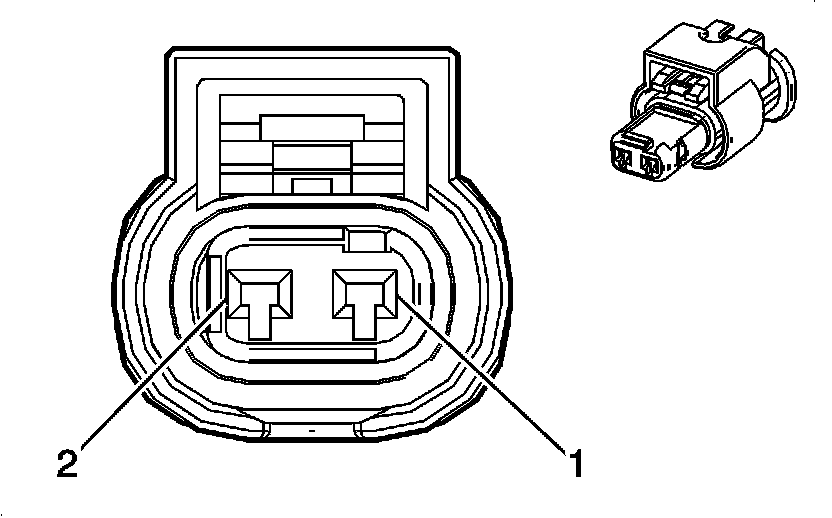

Component Connector End Views

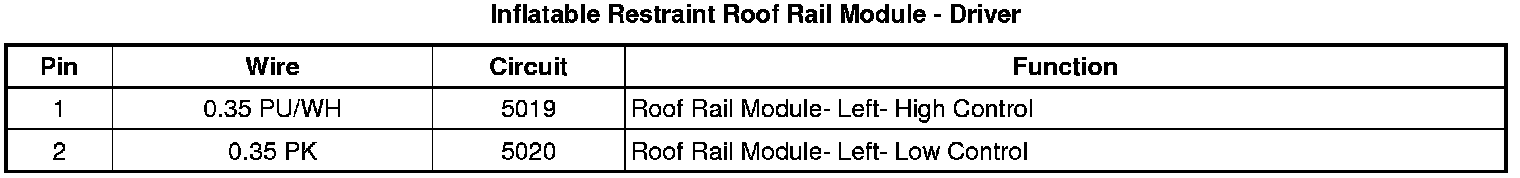

Inflatable Restraint Roof Rail Module - Driver
