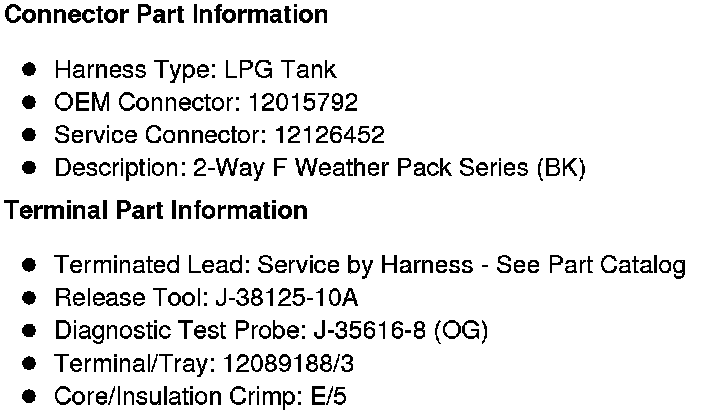

Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch
Component Connector End Views

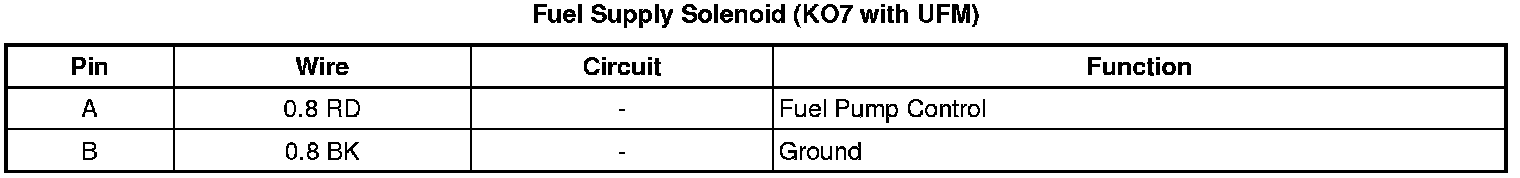

Fuel Supply Solenoid (KO7 with UFM)
