Engine Control Module (ECM) X1
Engine Control Module (ECM) X1

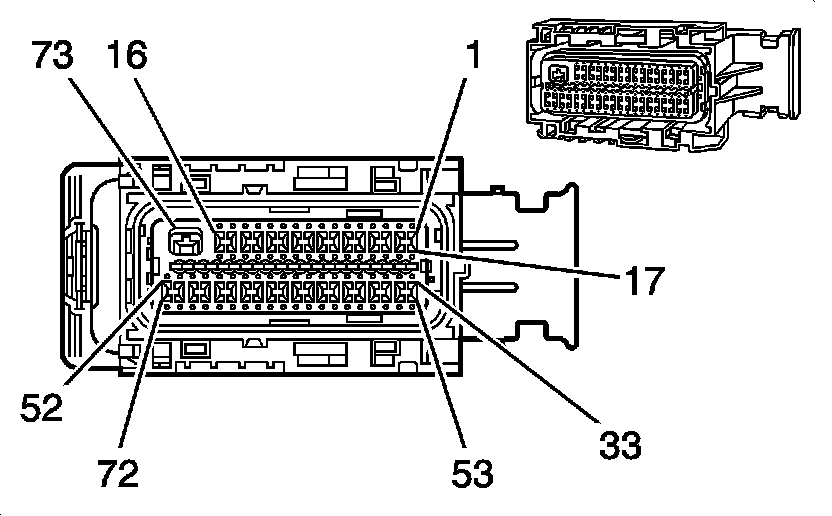

Component Connector End Views

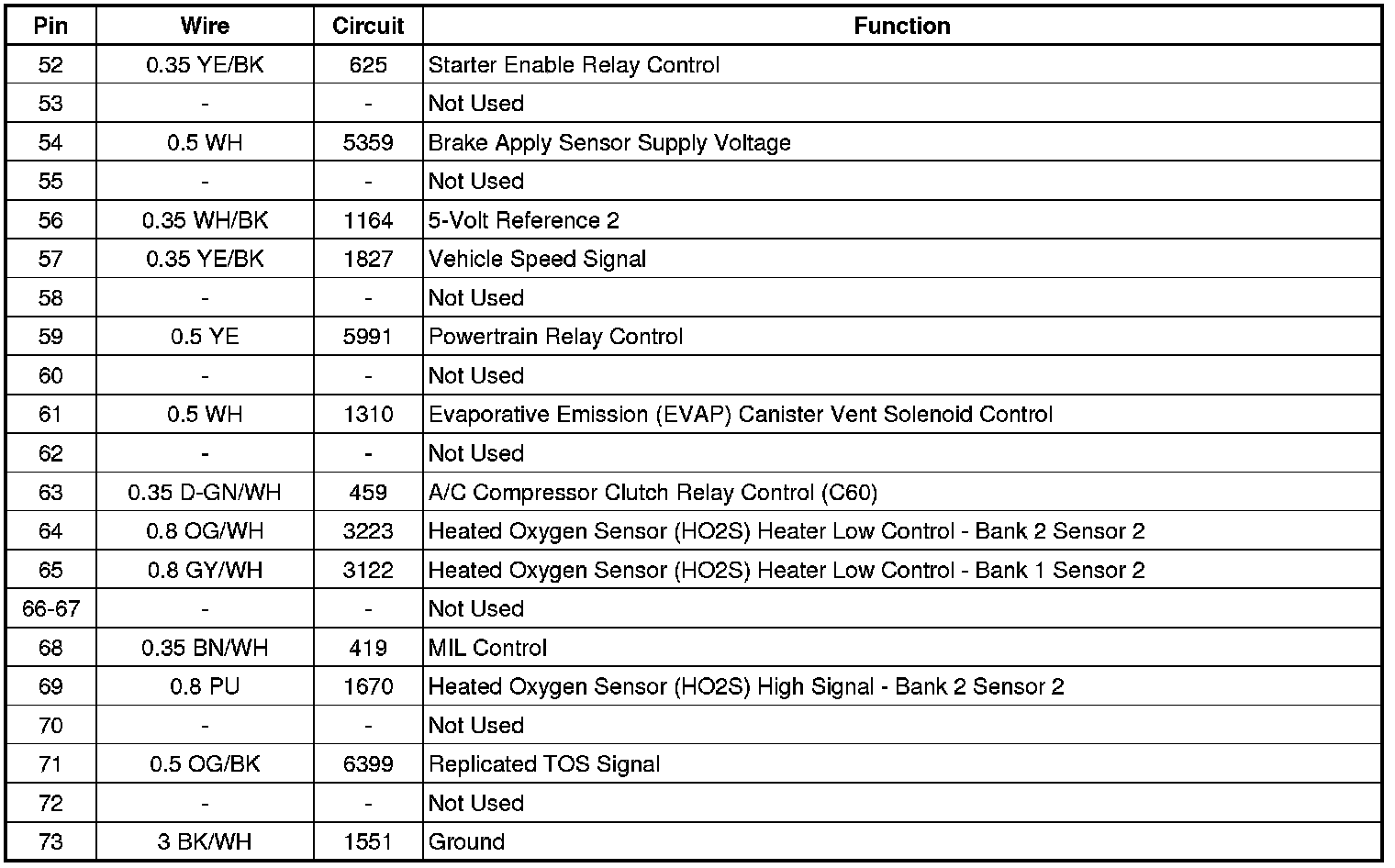

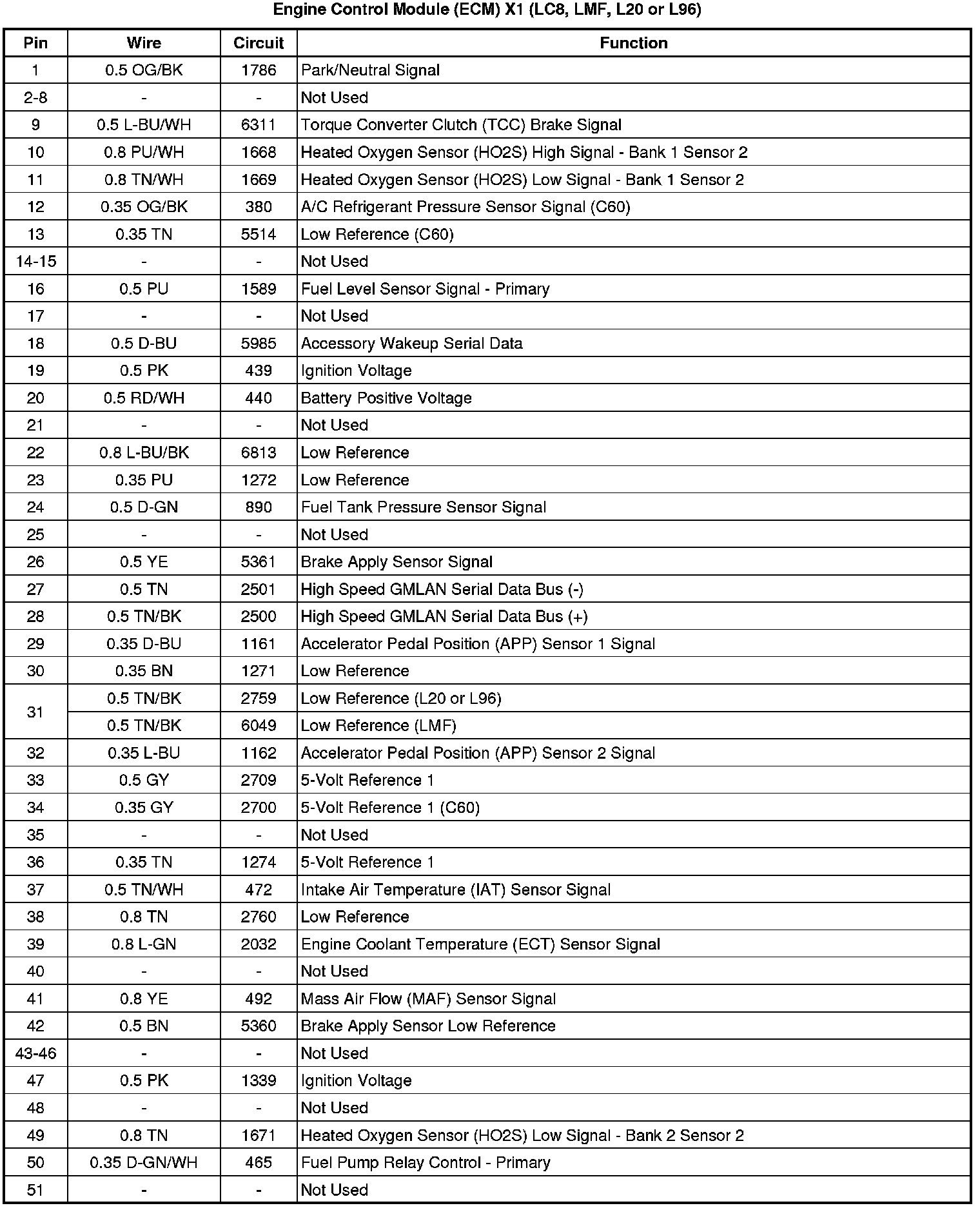

Engine Control Module (ECM) X1 (LC8, LMF, L20 or L96)
