Inflatable Restraint Front End Sensor - Left
Inflatable Restraint Front End Sensor - Left

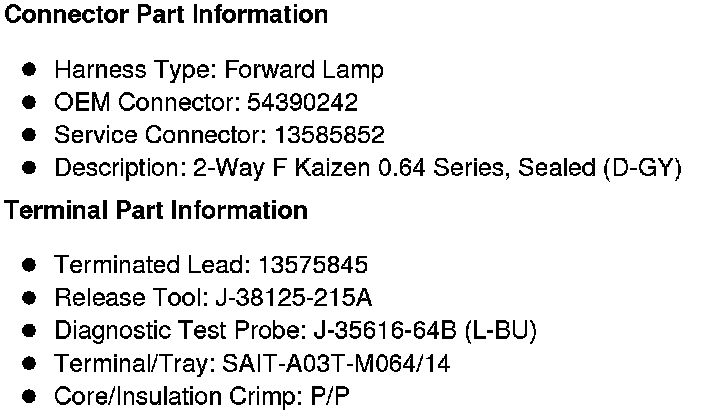

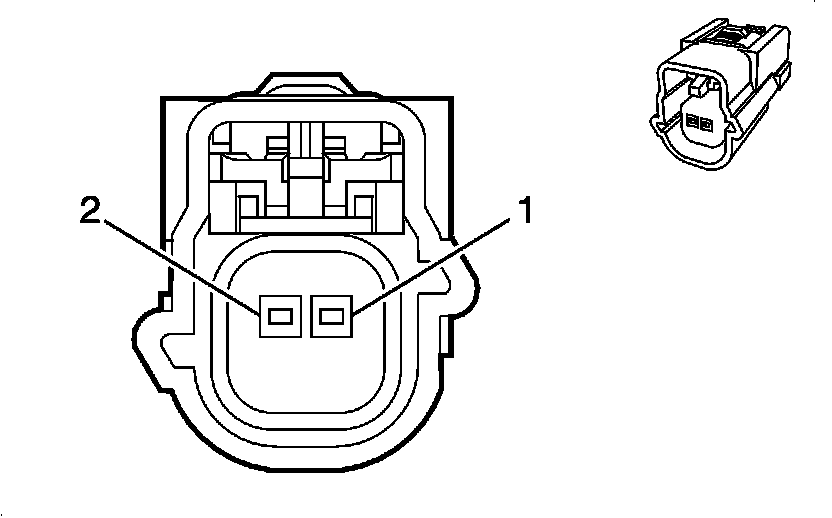

Component Connector End Views

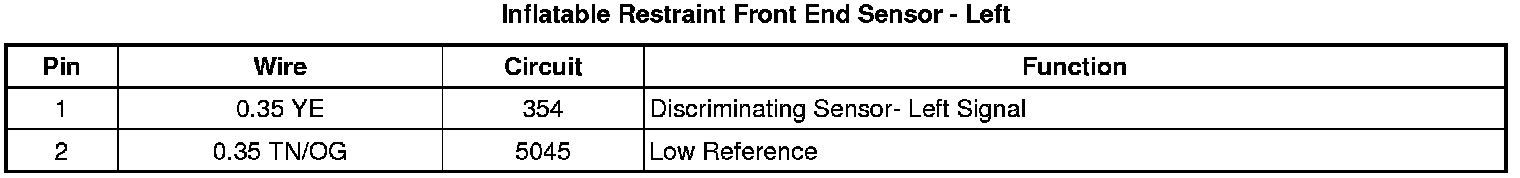

Inflatable Restraint Front End Sensor - Left
