Headlamp
>>
Headlamp Control Module
>>
Headlamp Control Module (TSH or T26)
Headlamp Control Module (TSH or T26)

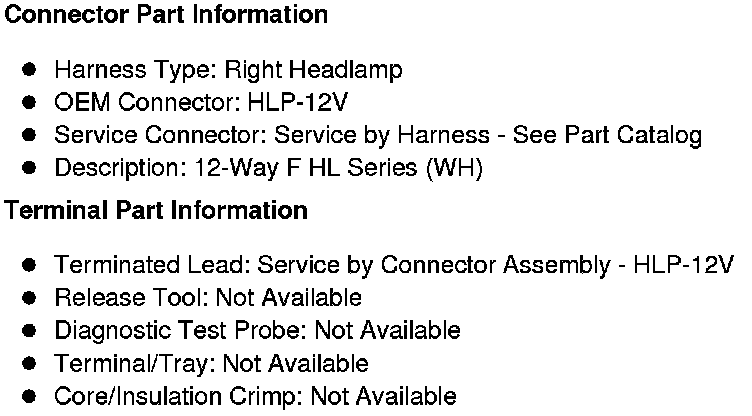

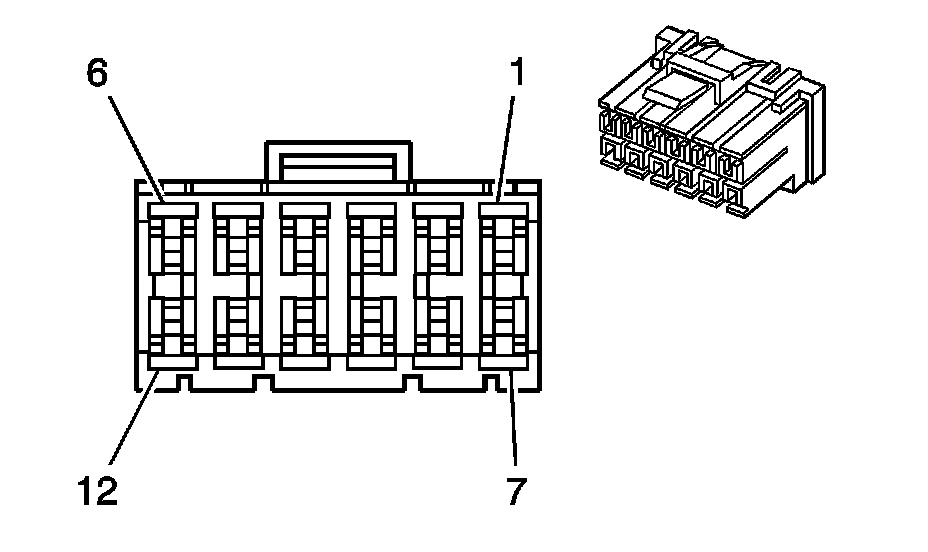

Component Connector End Views

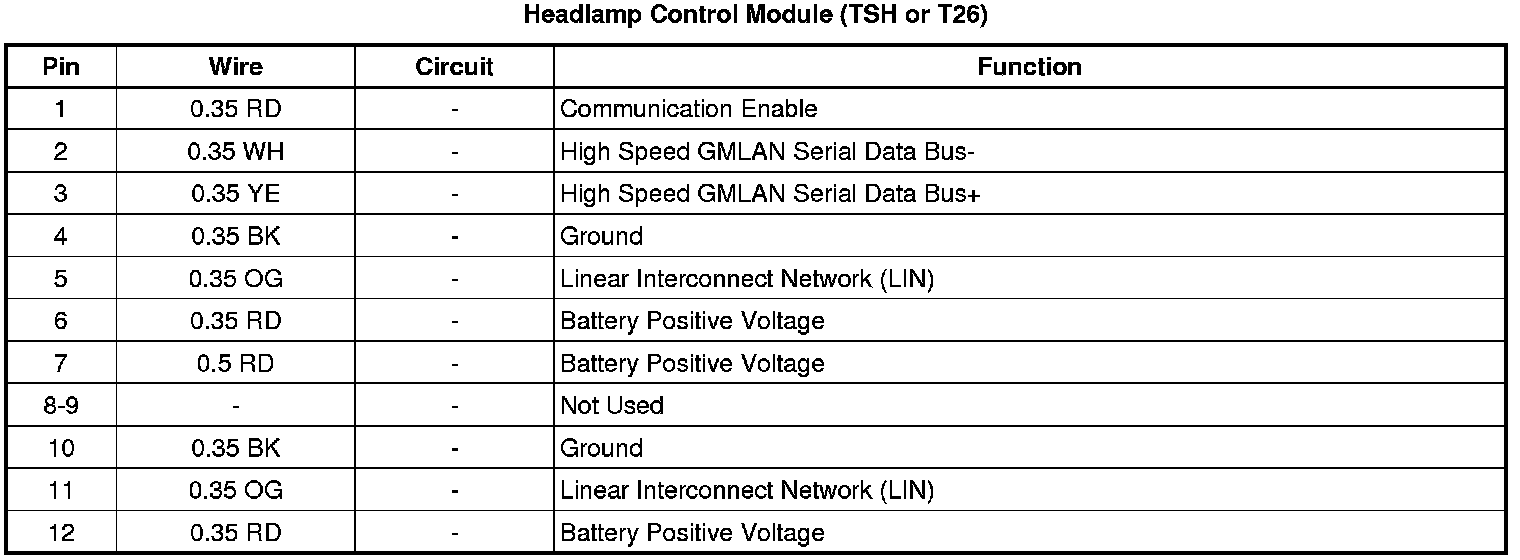

Headlamp Control Module
(TSH or T26)
