Control Assembly, HVAC

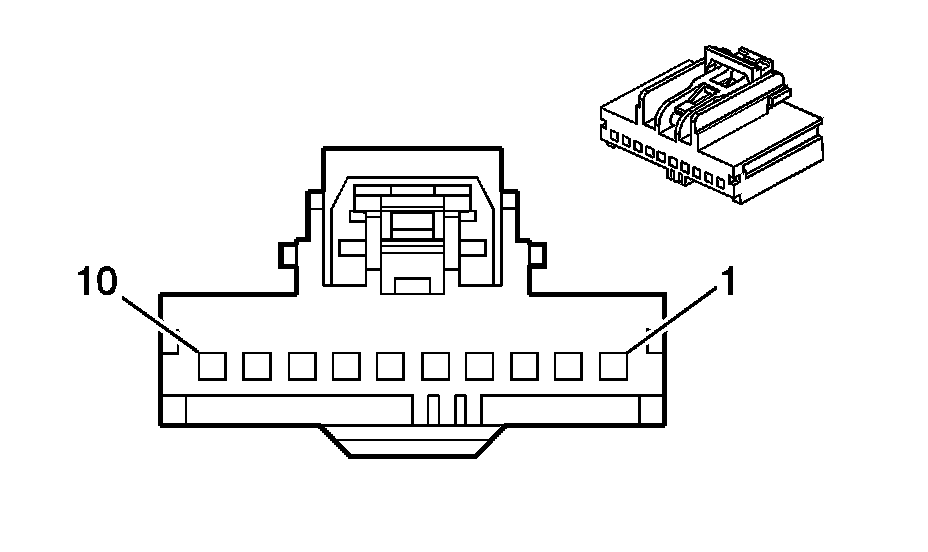

Component Connector End Views

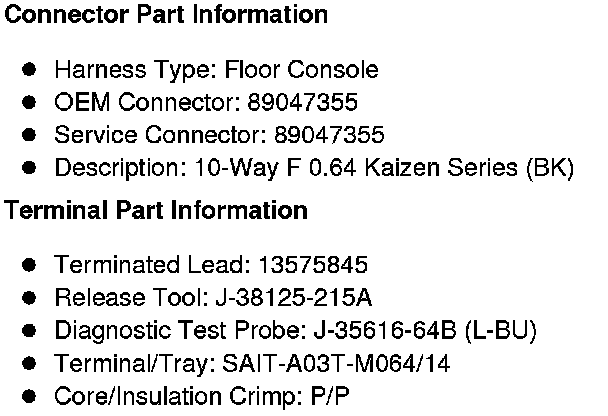

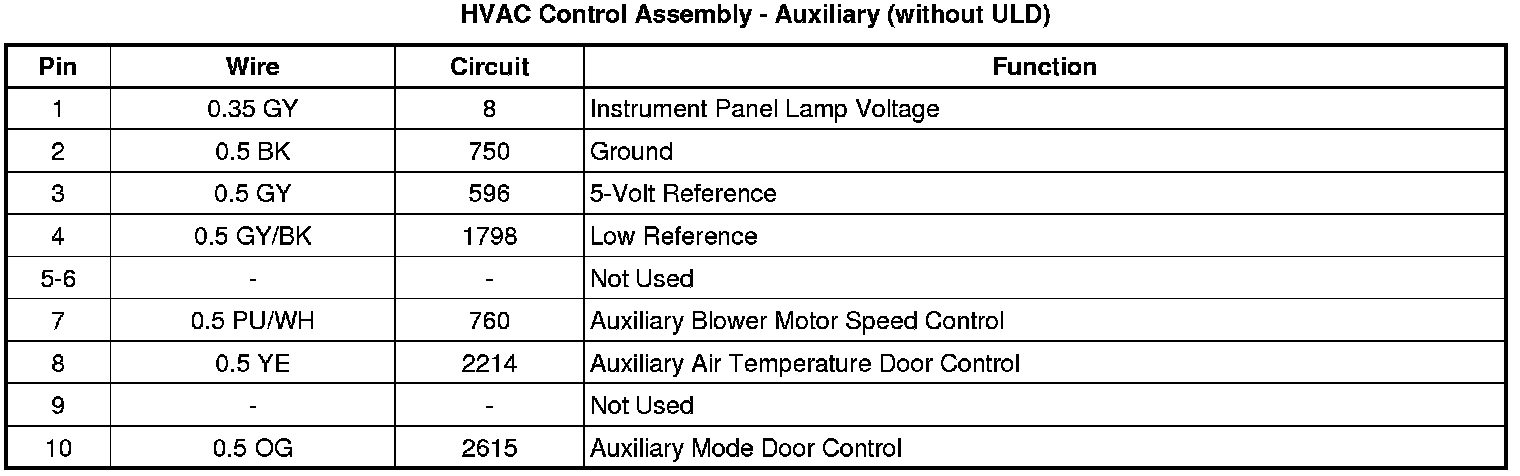

HVAC Control Assembly - Auxiliary (without ULD)
