Brake Light Switch
Brake Light Switch

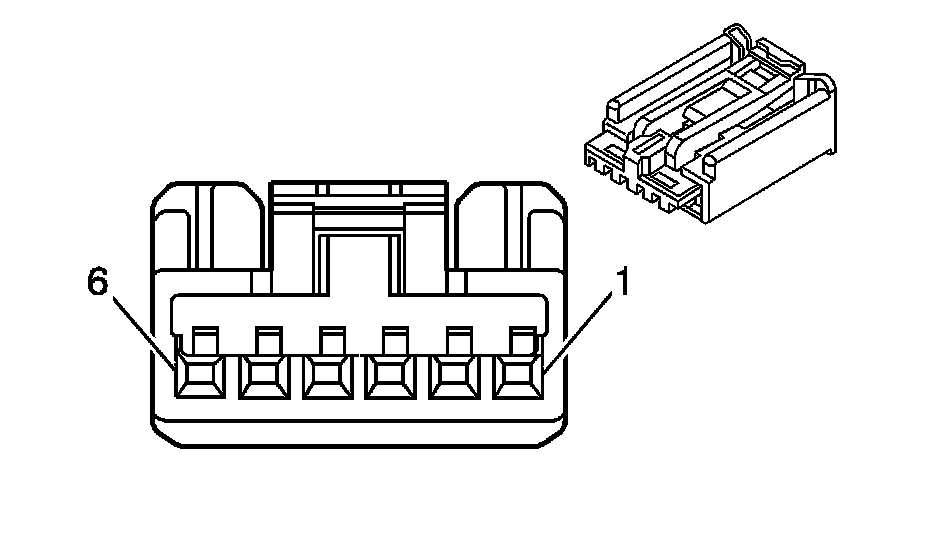

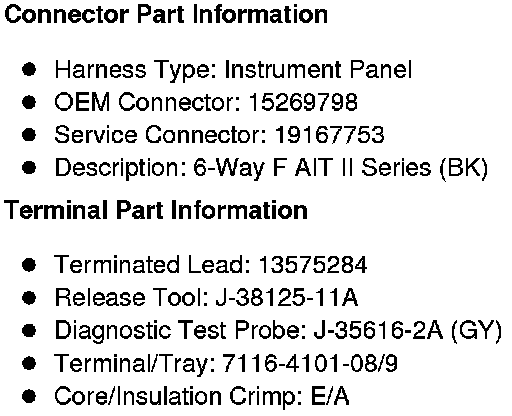

Component Connector End Views

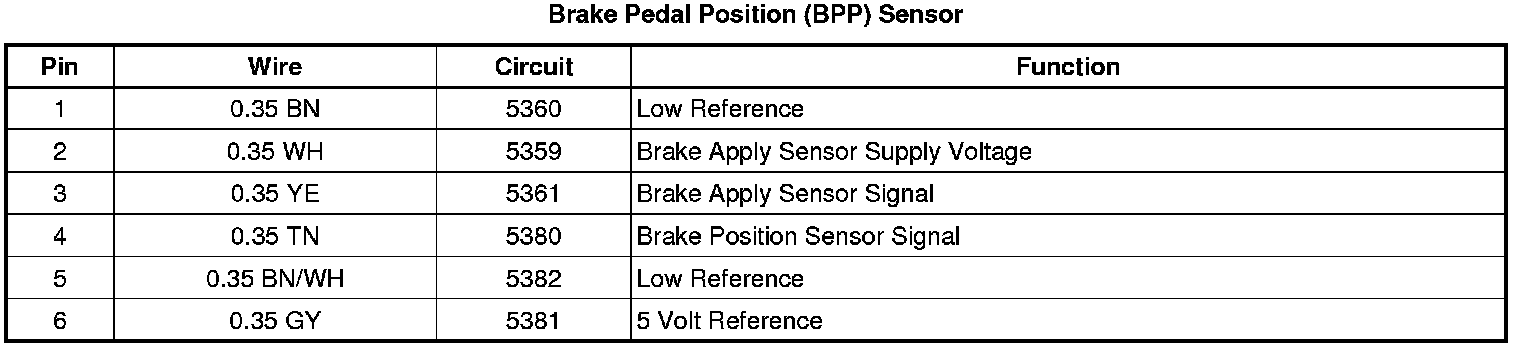

Brake Pedal Position (BPP) Sensor
