HVAC Module

Harness Routing Views

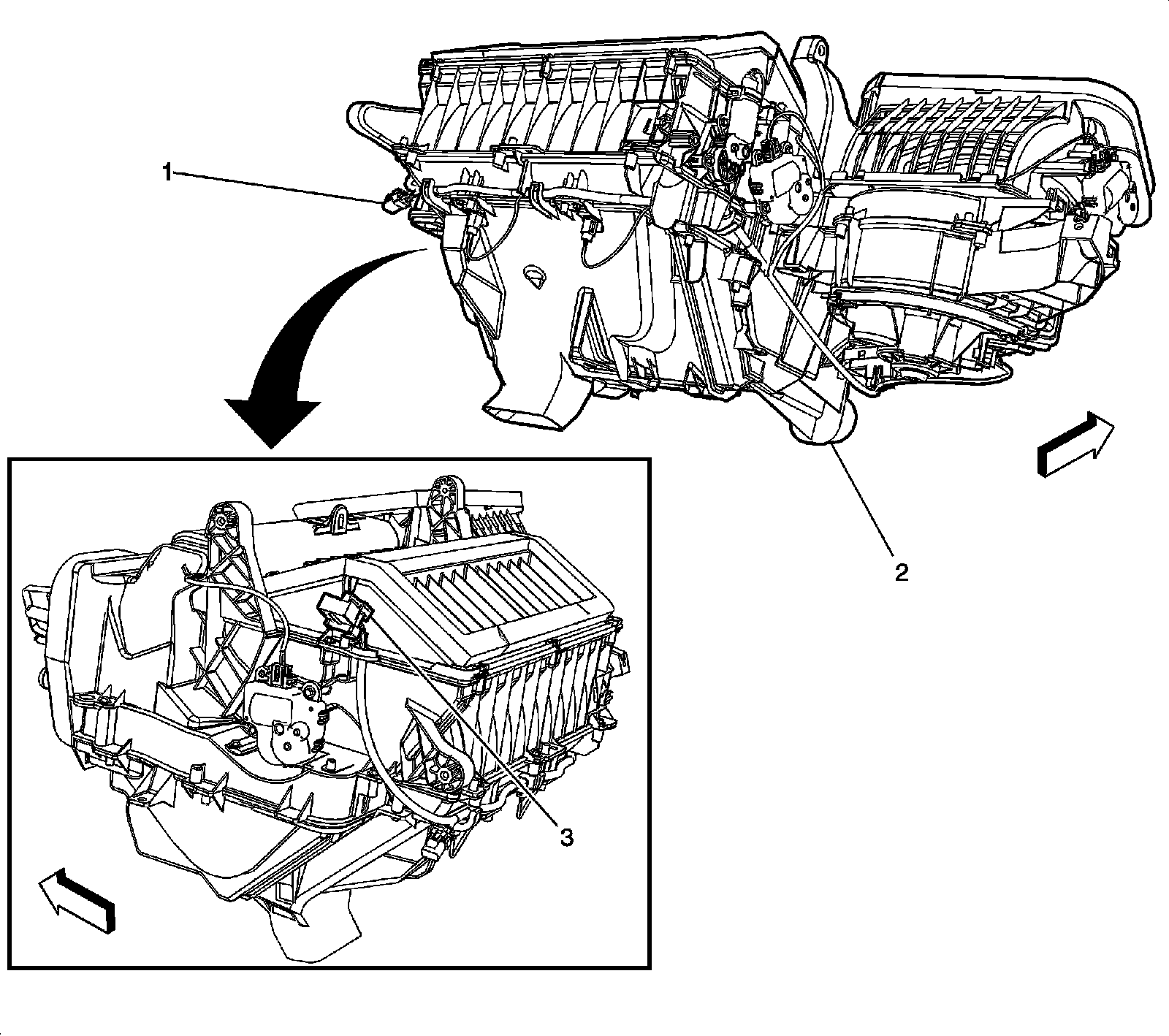

HVAC Module Harness Routing

1 - X210

2 - HVAC Module

3 - HVAC Control Module- X2
