Blower Motor Control Module

Instrument Panel/Center Console Component Views

Interior HVAC Components

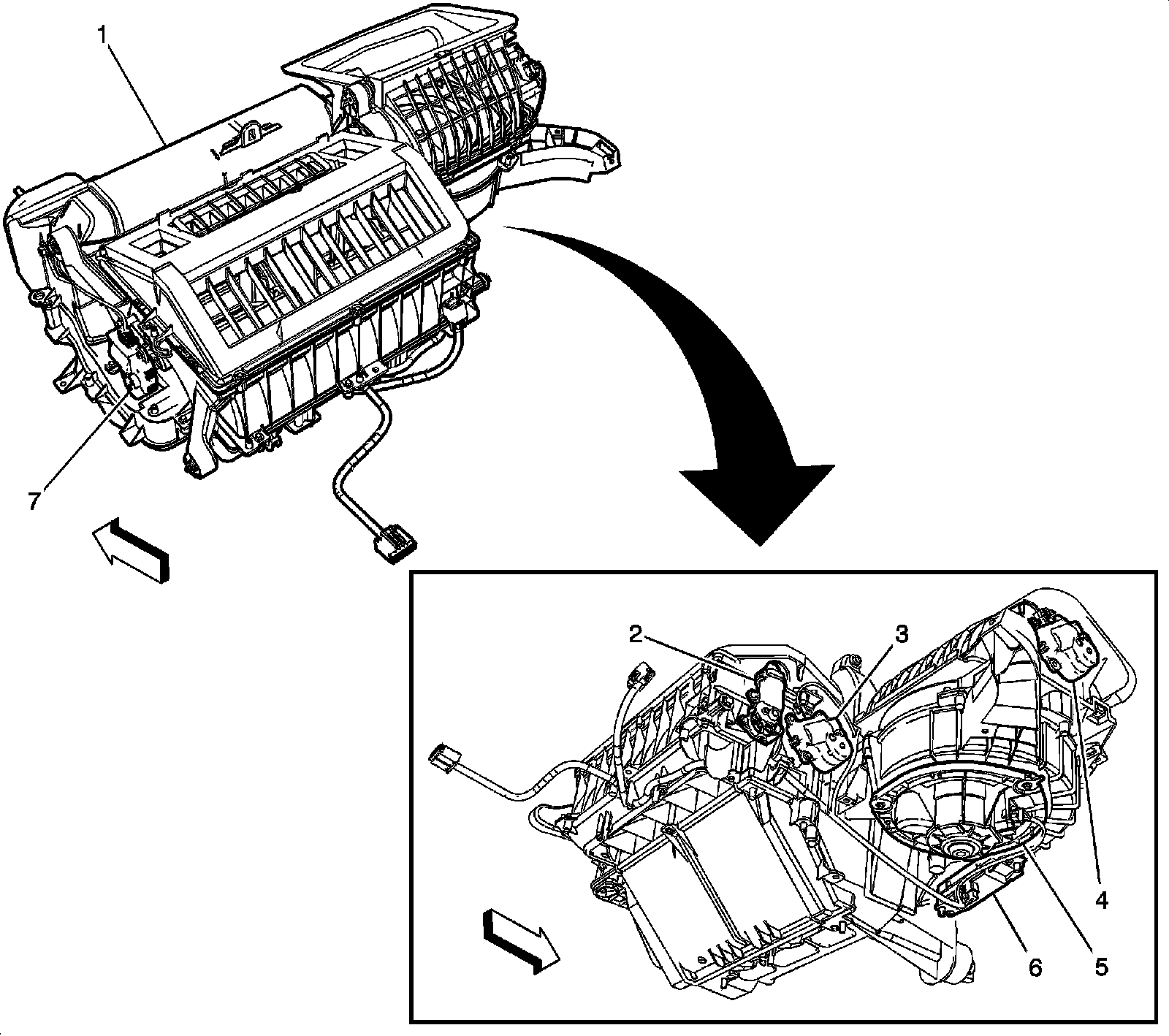

1 - HVAC Module

2 - Mode Actuator

3 - Air Temperature Actuator- Right

4 - Recirculation Actuator

5 - Blower Motor

6 - Blower Motor Control Module

7 - Air Temperature Actuator- Left
