Sunroof / Moonroof Module
Sunroof / Moonroof Module

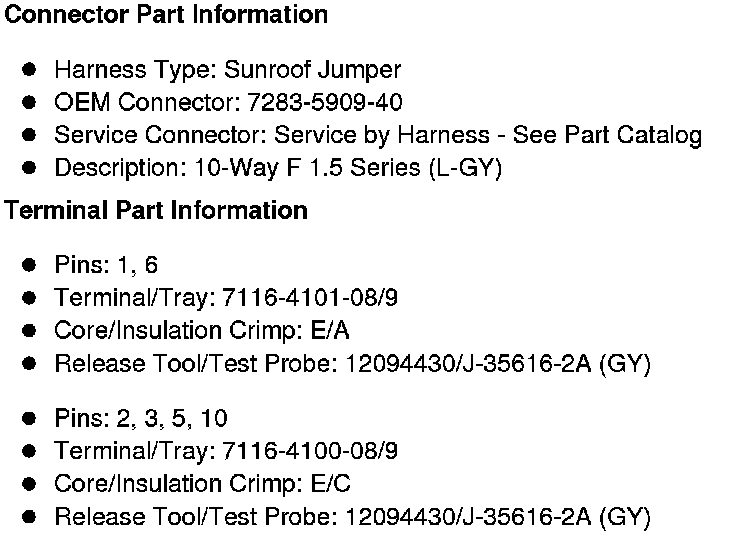

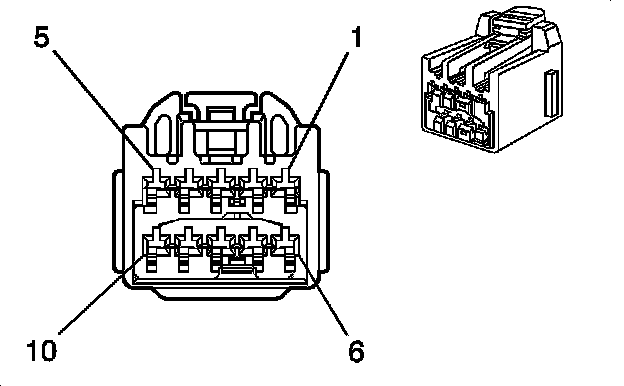

Component Connector End Views

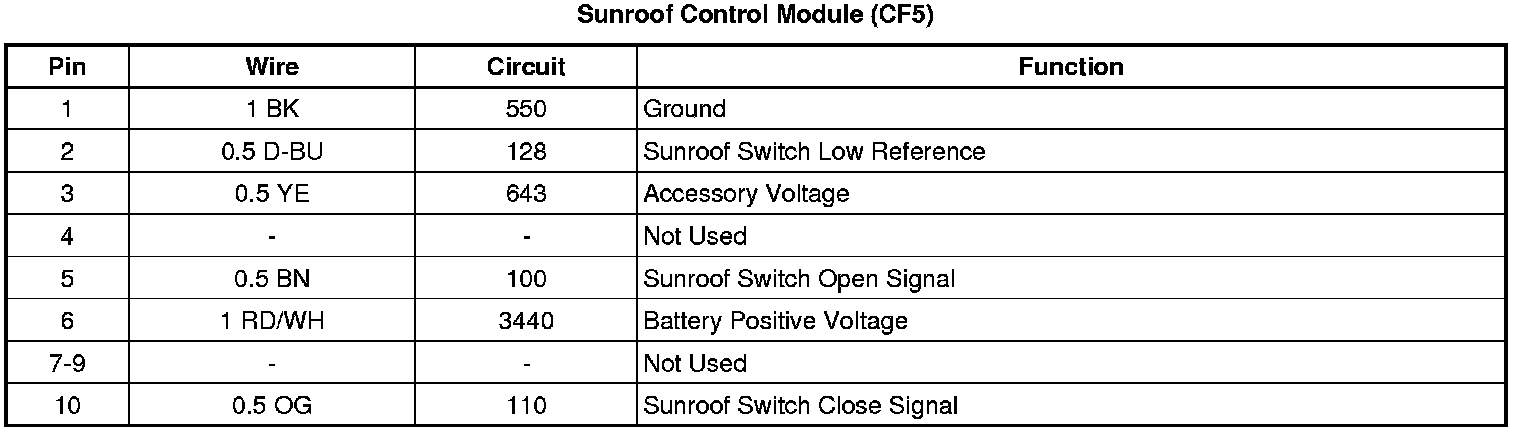

Sunroof Control Module (CF5)
