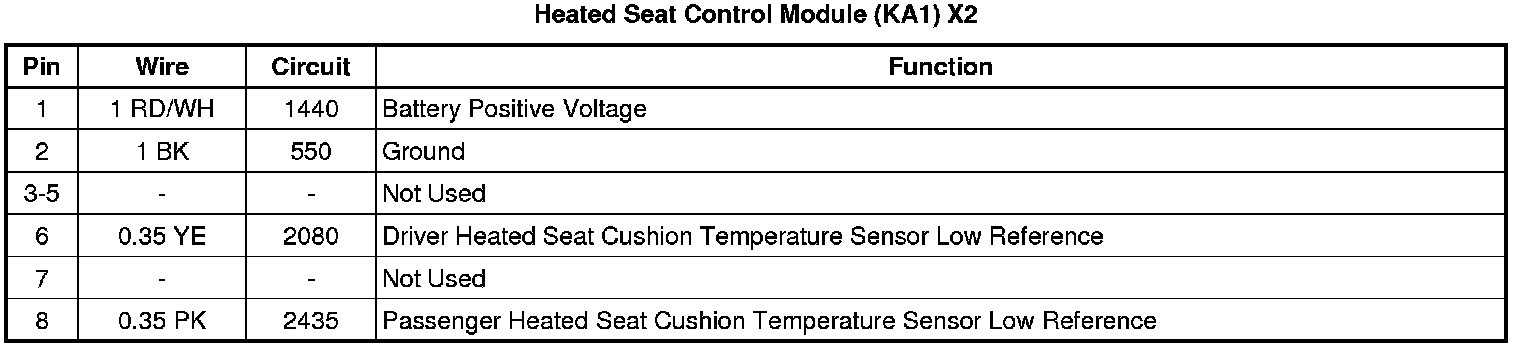

Heated Seat Control Module (KA1) X2
Heated Seat Control Module (KA1) X2

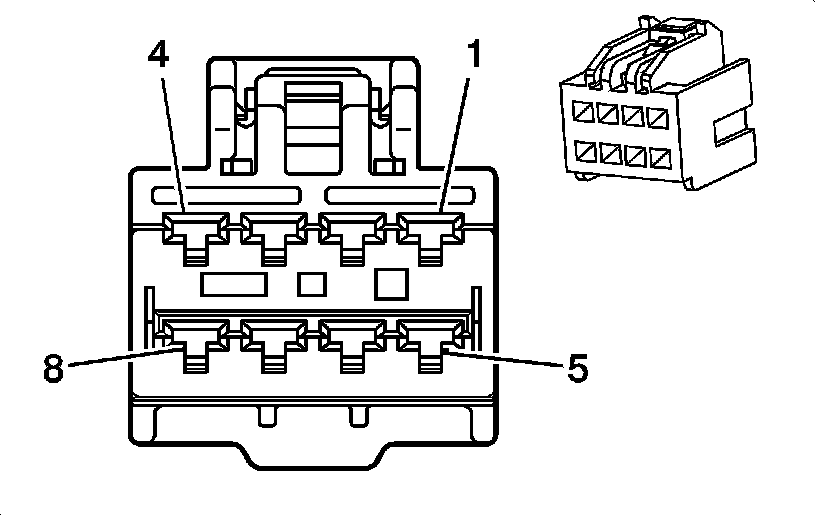

Component Connector End Views

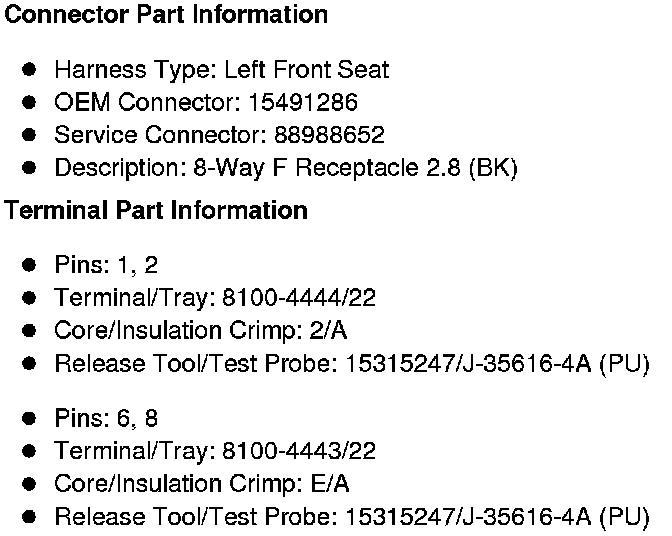

Heated Seat Control Module (KA1) X2
