Seat Temperature Control Module
>>
Heated Seat Control Module (KA1) X1

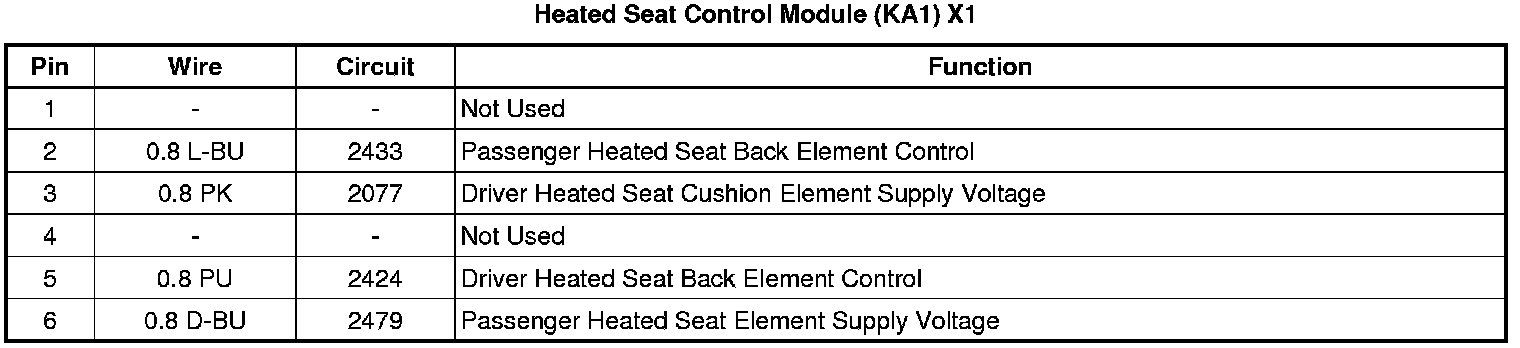

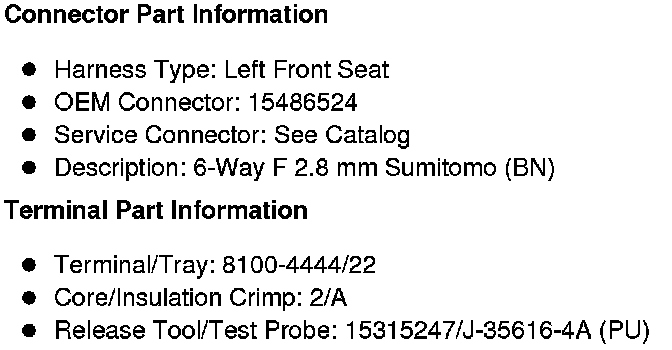

Heated Seat Control Module (KA1) X1

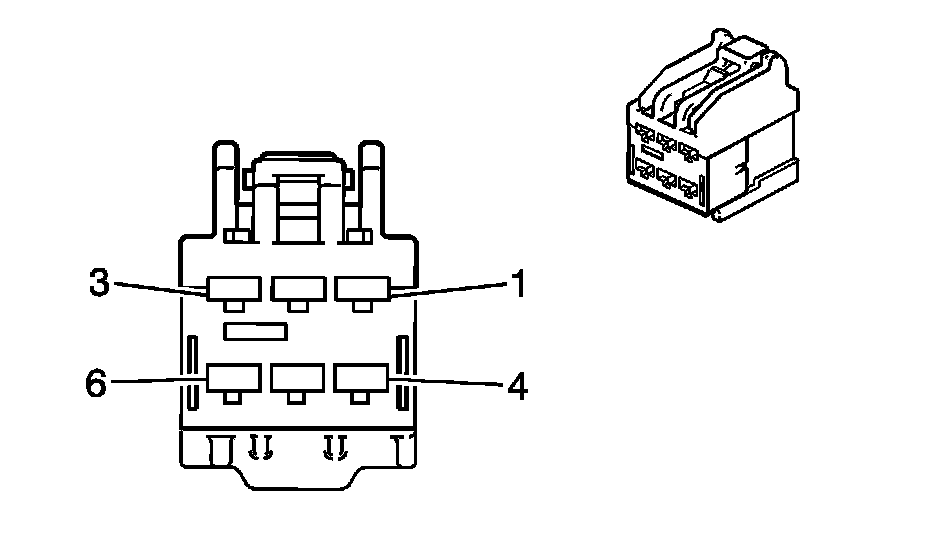

Component Connector End Views
Heated Seat Control Module (KA1) X1
