Chevrolet
>>
2012
>>
Impala V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch - Driver X2
Window Switch - Driver X2

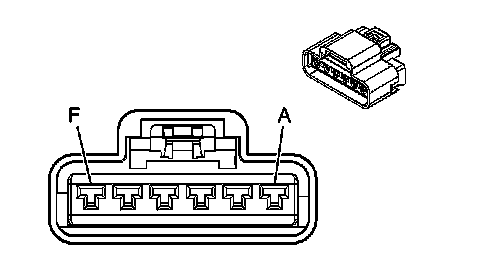

Component Connector End Views

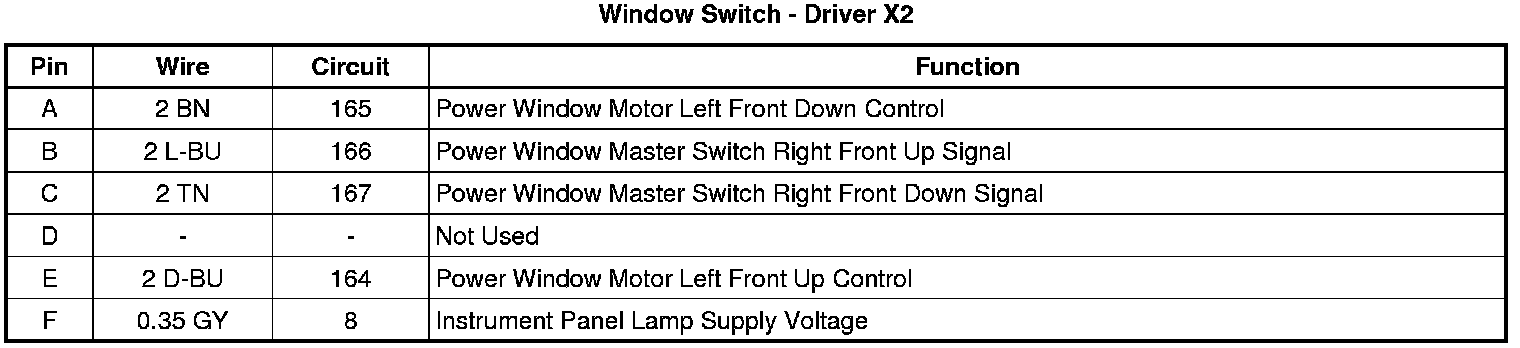

Window Switch - Driver X2
