Inflatable Restraint Front End Sensor- Left

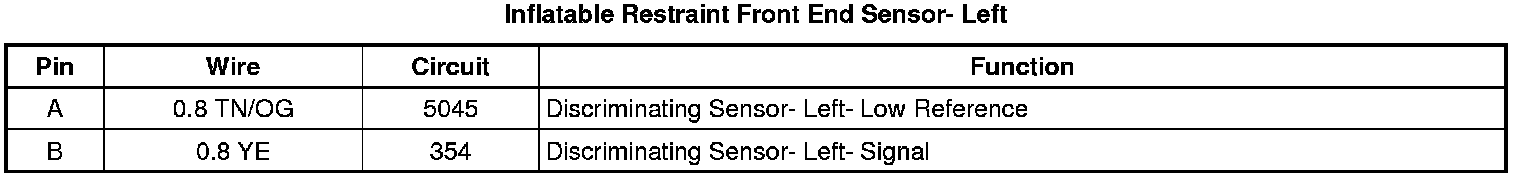

Inflatable Restraint Front End Sensor- Left

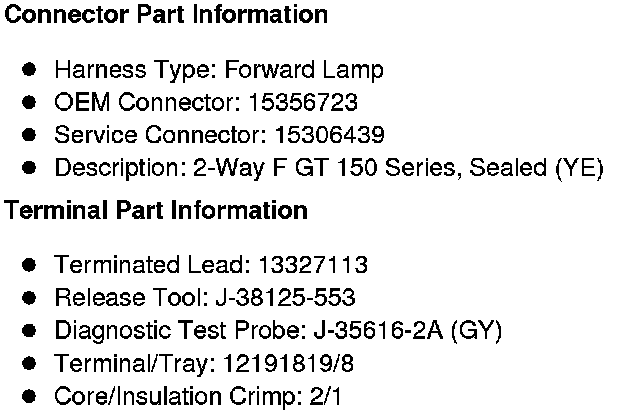

Component Connector End Views

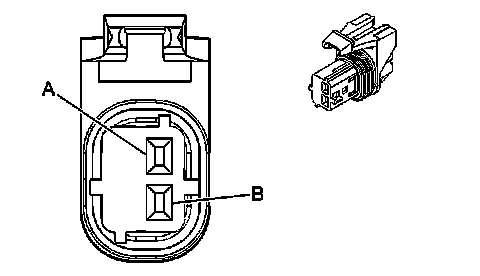

Inflatable Restraint Front End Sensor- Left
