Engine Control Module (ECM) X2 (LFX)
Engine Control Module (ECM) X2 (LFX)

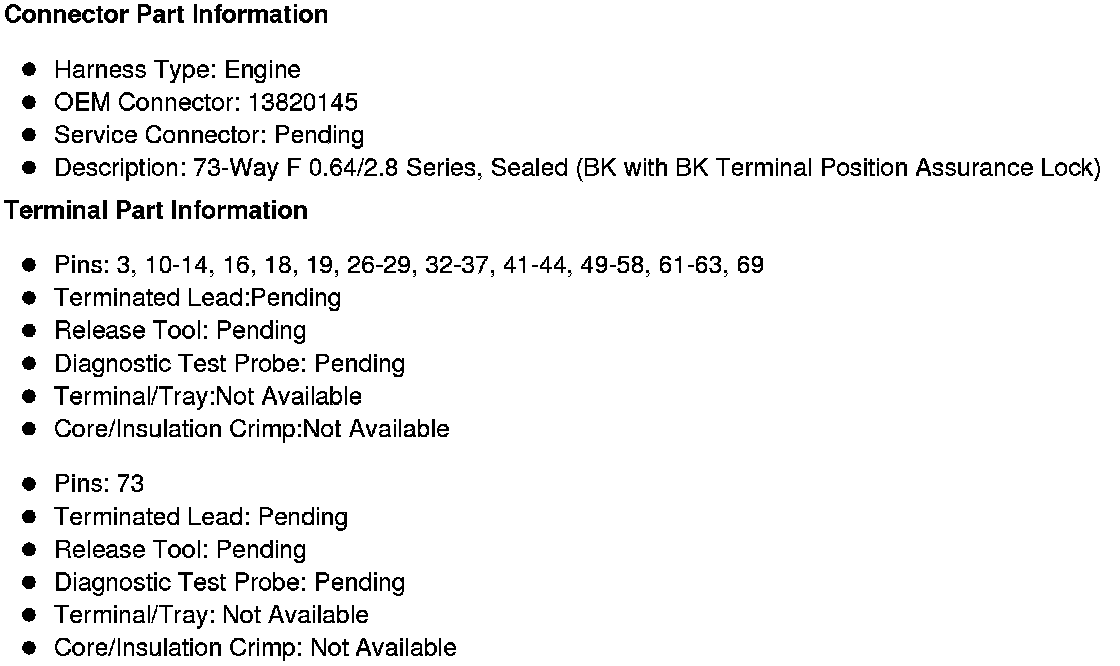

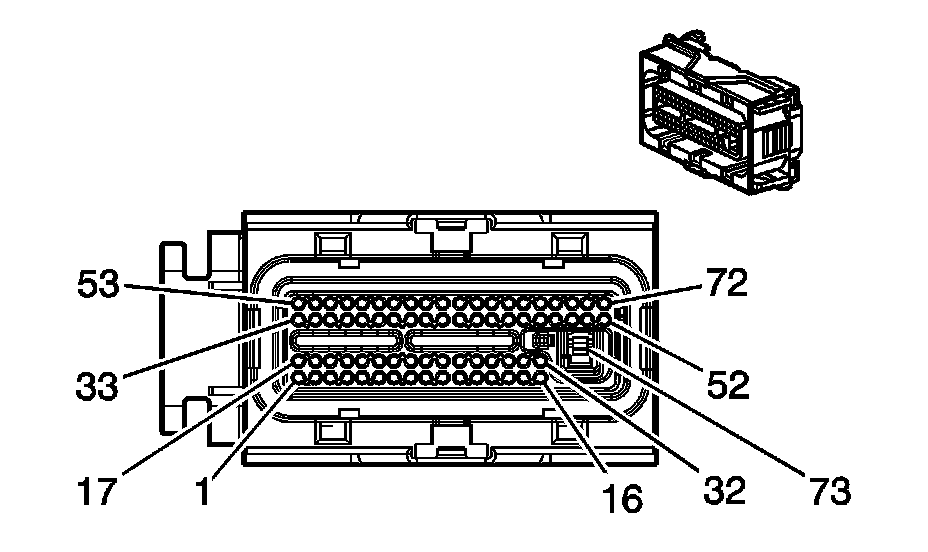

Component Connector End Views

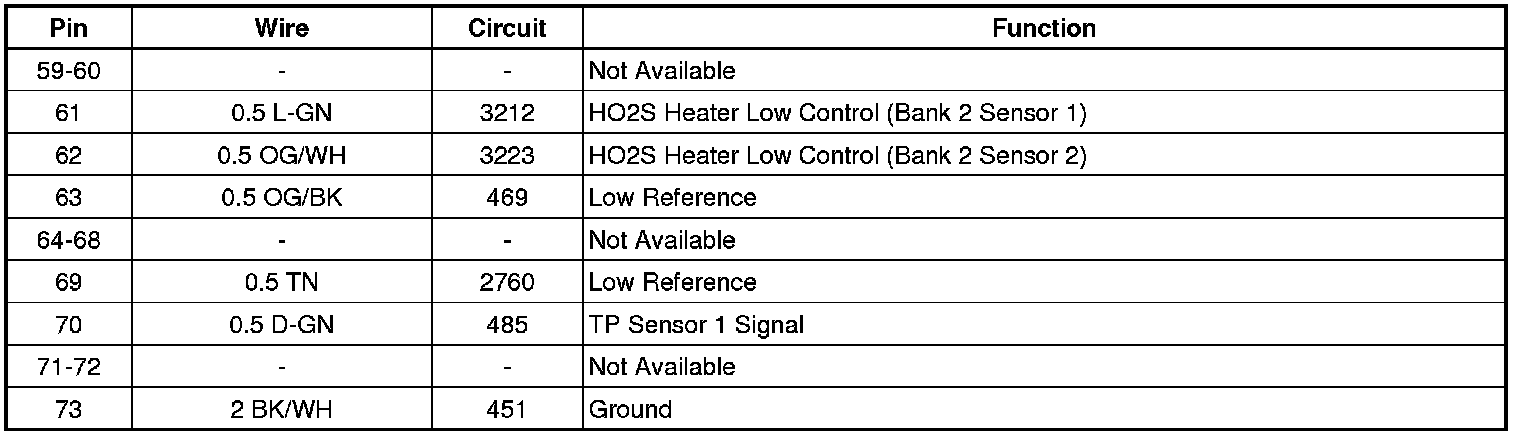

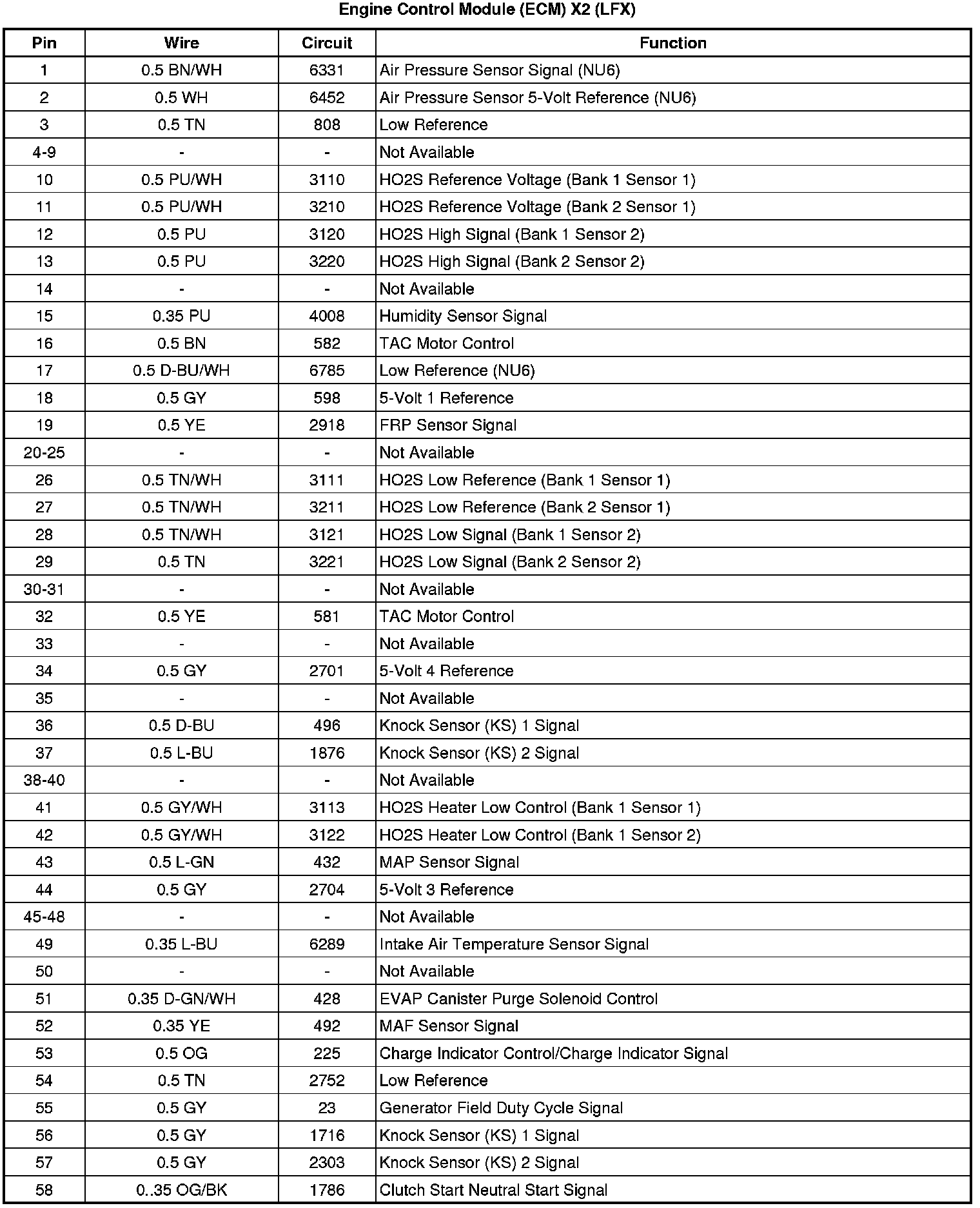

Engine Control Module (ECM) X2 (LFX)
