Electronic Brake Control Module
Electronic Brake Control Module

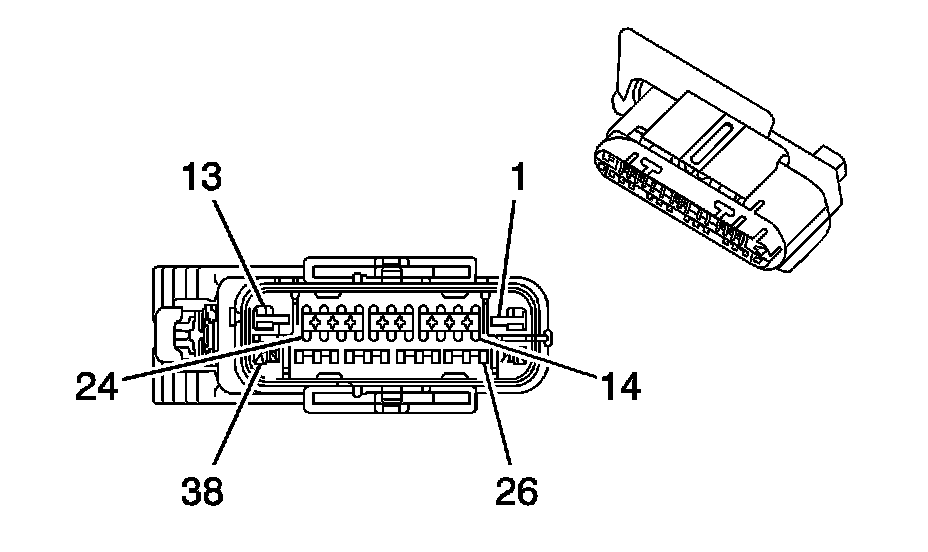

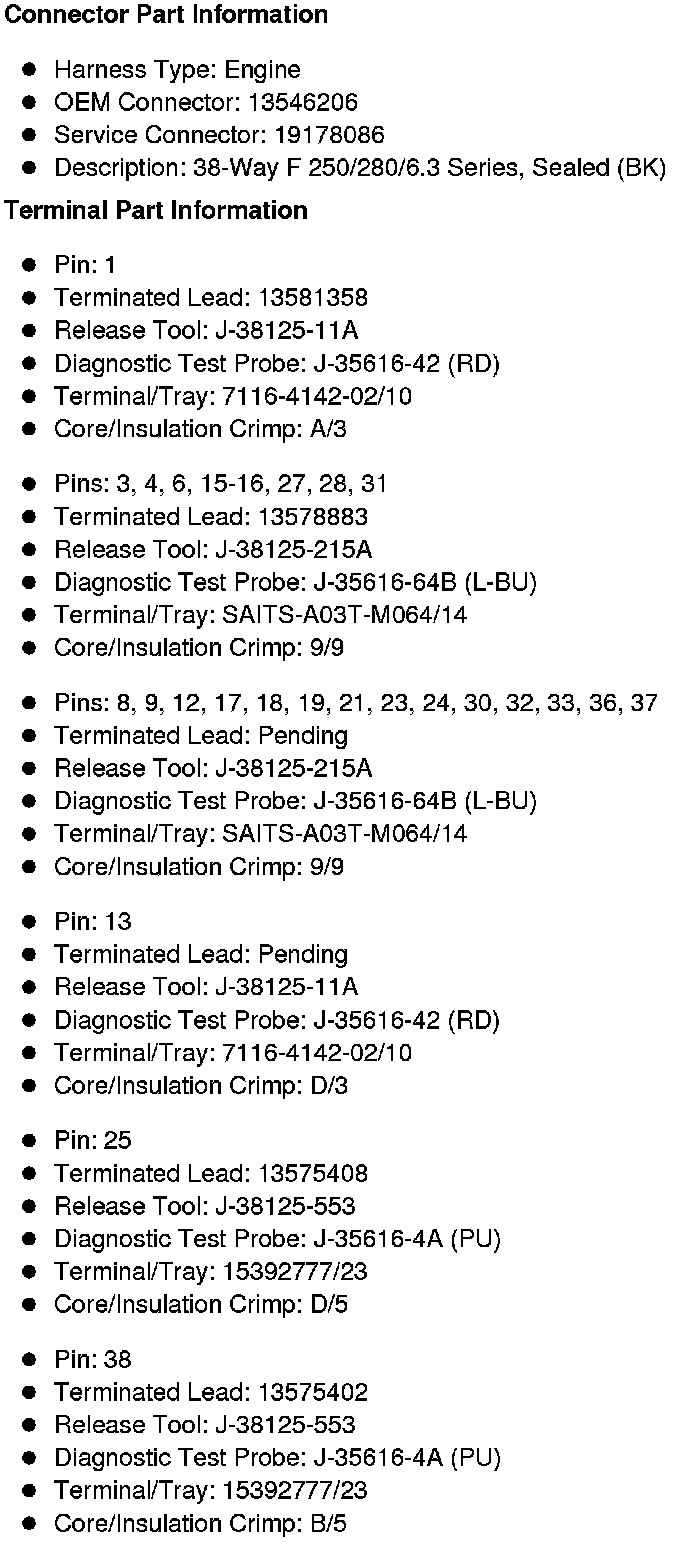

Component Connector End Views
Electronic Brake Control Module
(EBCM)
