Compressor Control Valve Assembly
Compressor Control Valve Assembly

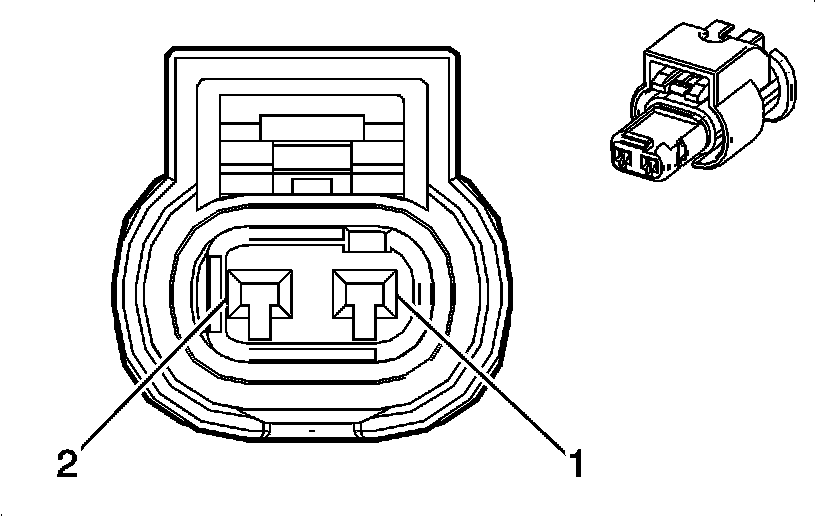

Component Connector End Views

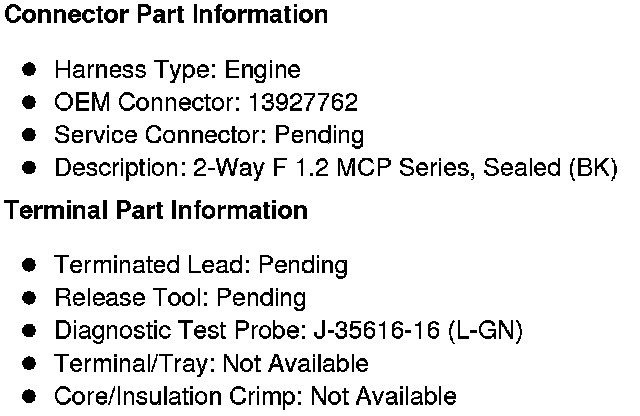

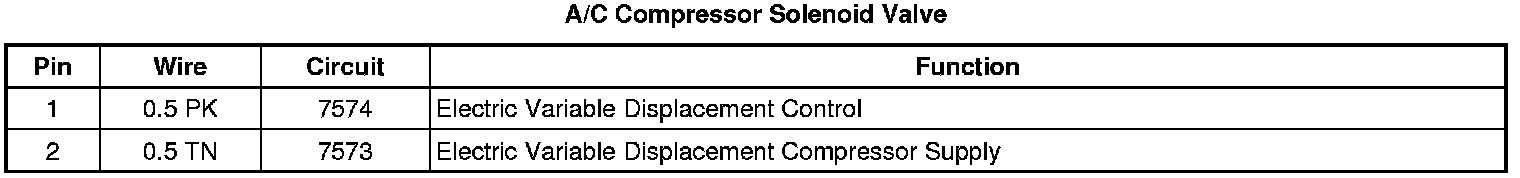

A/C Compressor Solenoid Valve
