Central Control Module
>>
Vehicle Communication Interface Module (VCIM) (UE1) X2
Vehicle Communication Interface Module (VCIM) (UE1) X2

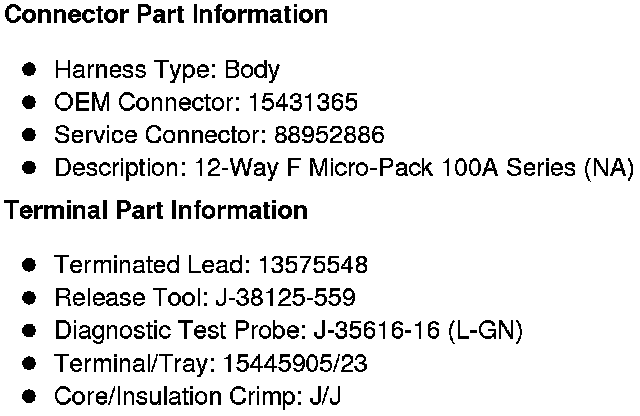

Component Connector End Views

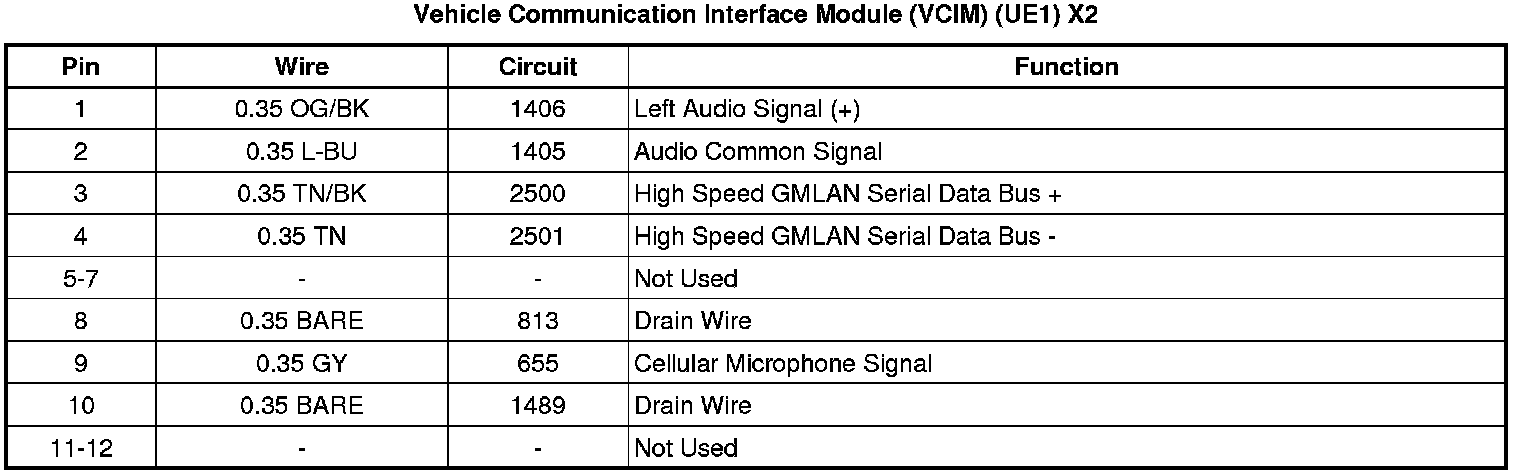

Vehicle Communication Interface Module (VCIM) (UE1) X2
