Body Control Module (BCM) X2
Body Control Module (BCM) X2

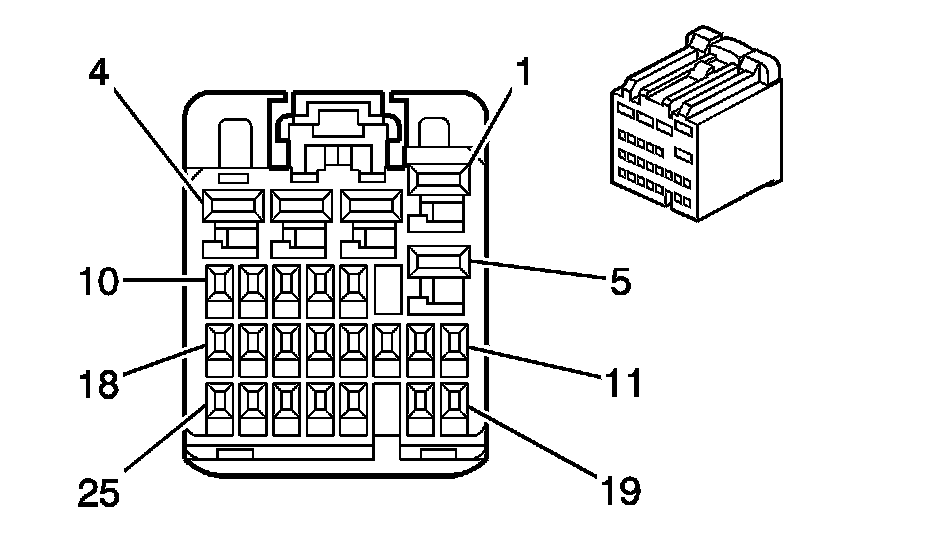

Component Connector End Views

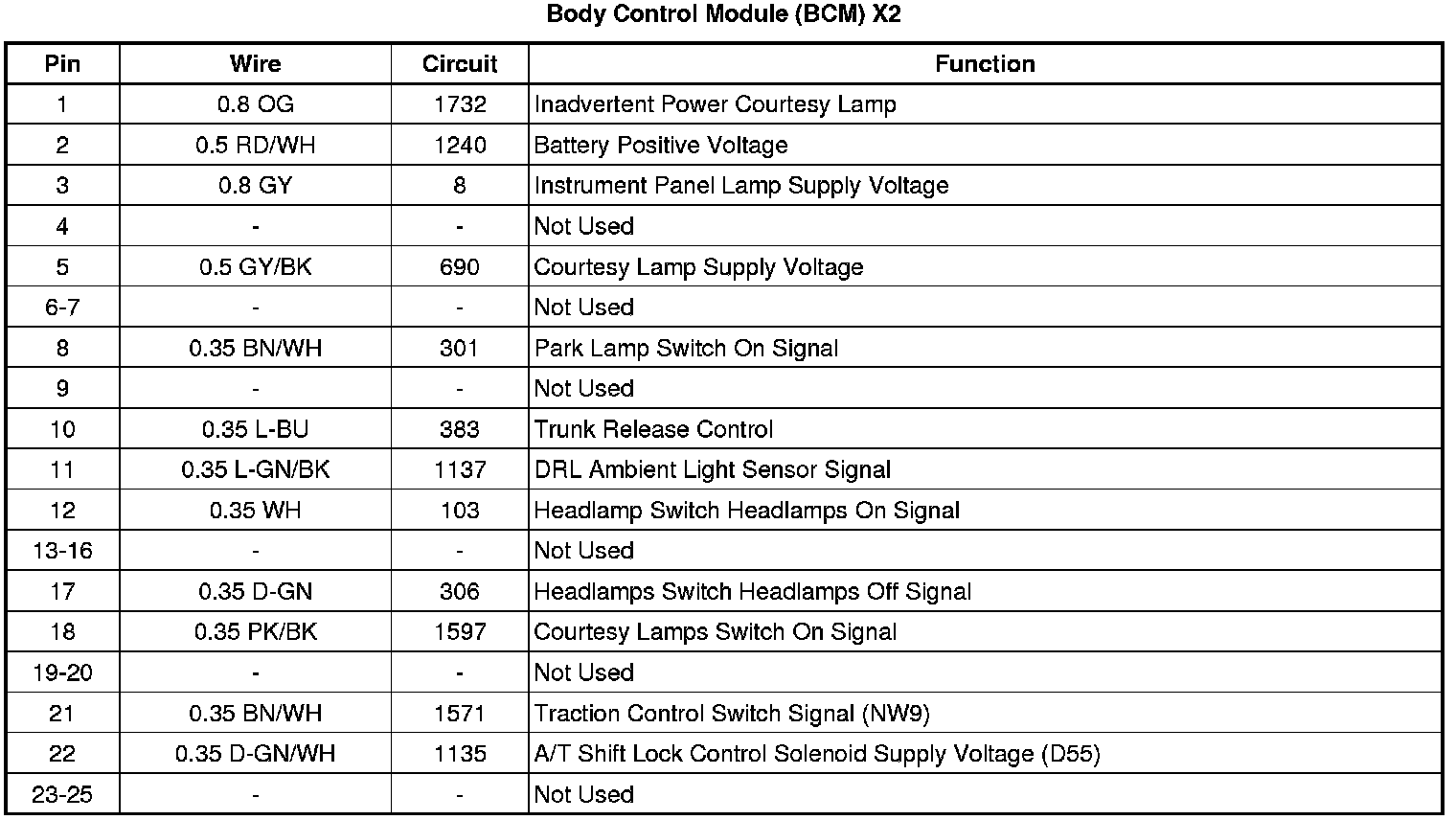

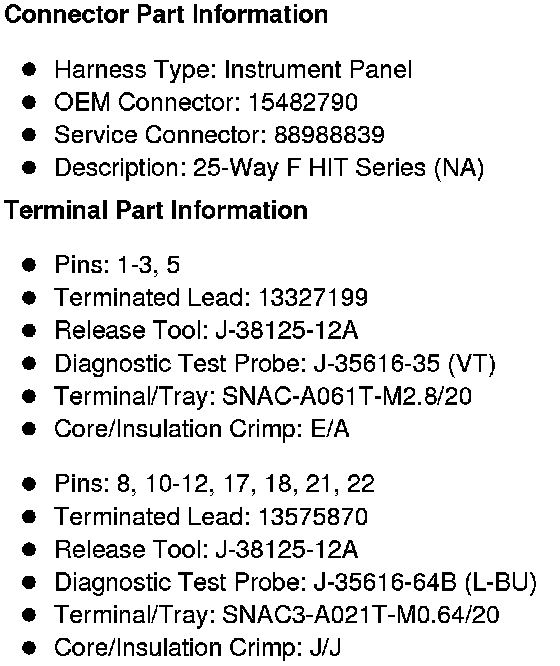

Body Control Module (BCM) X2
