Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

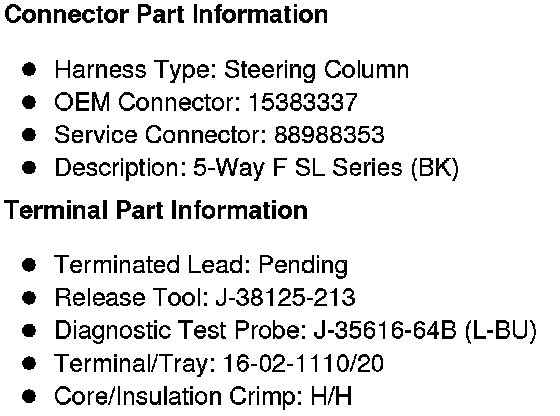

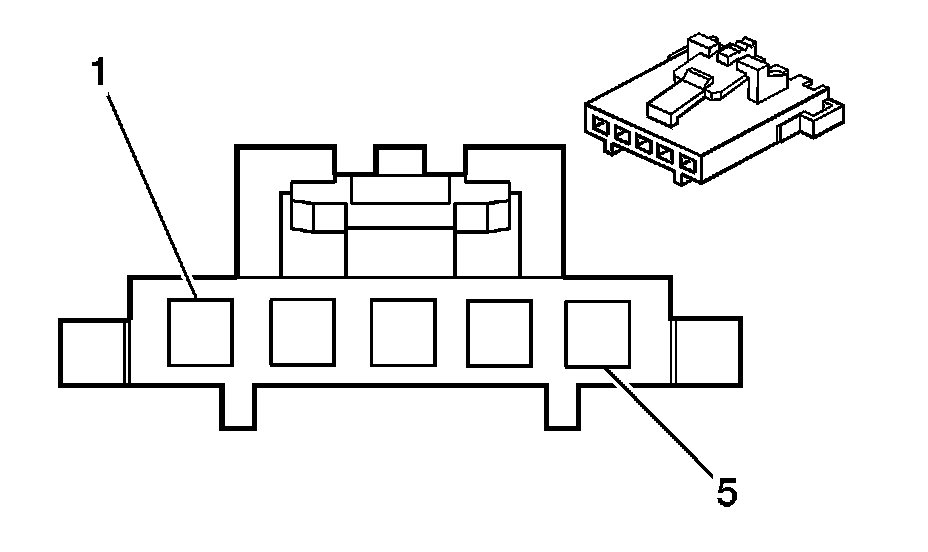

Component Connector End Views

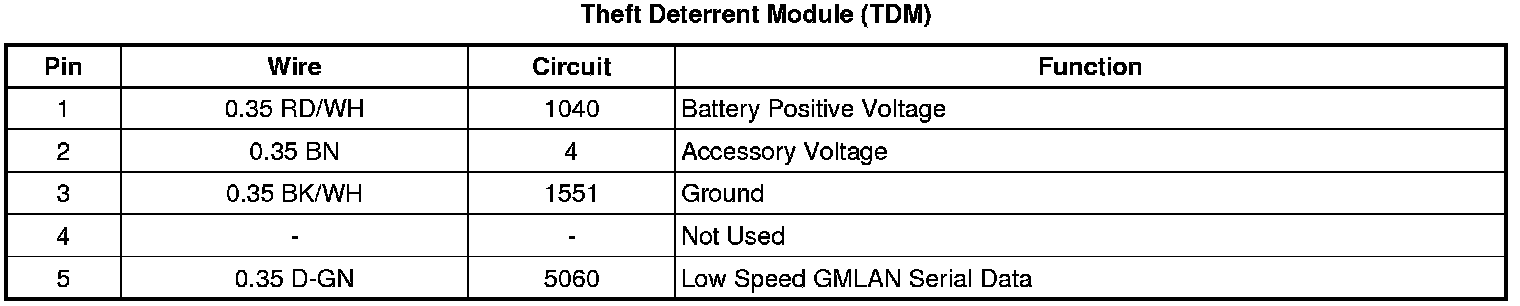

Theft Deterrent Module (TDM)
