Inflatable Restraint Side Impact Module- Left
Inflatable Restraint Side Impact Module- Left

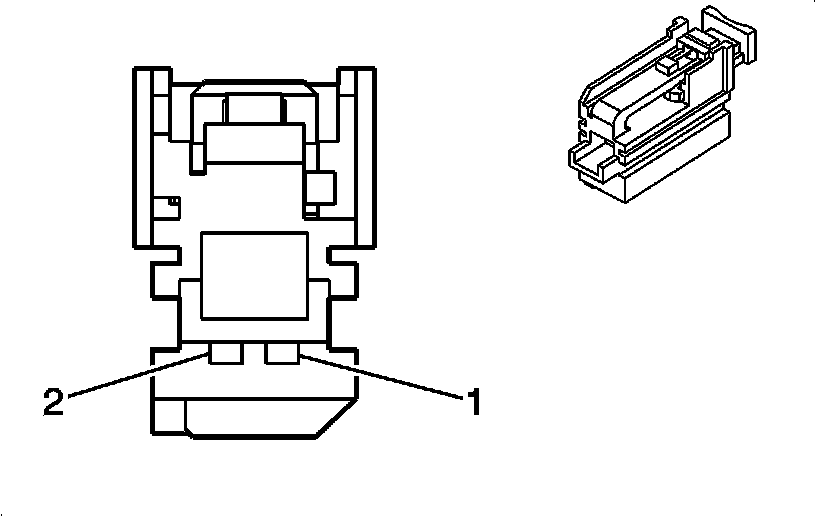

Component Connector End Views

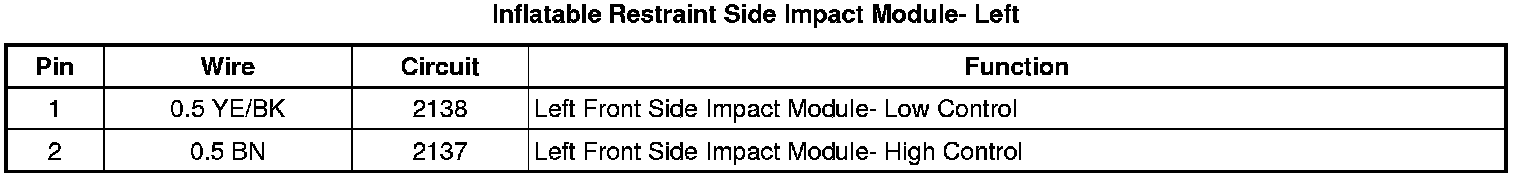

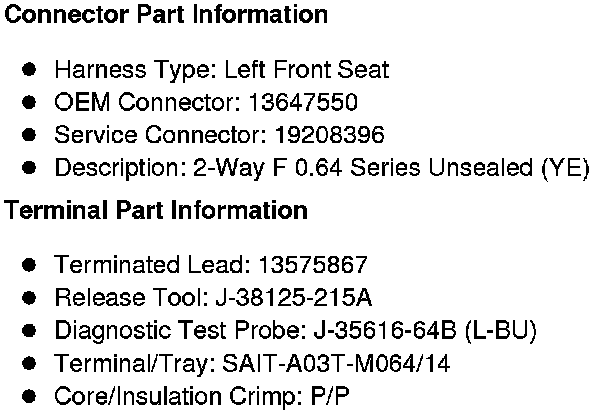

Inflatable Restraint Side Impact Module- Left
