Keyless Entry Receiver: Diagrams

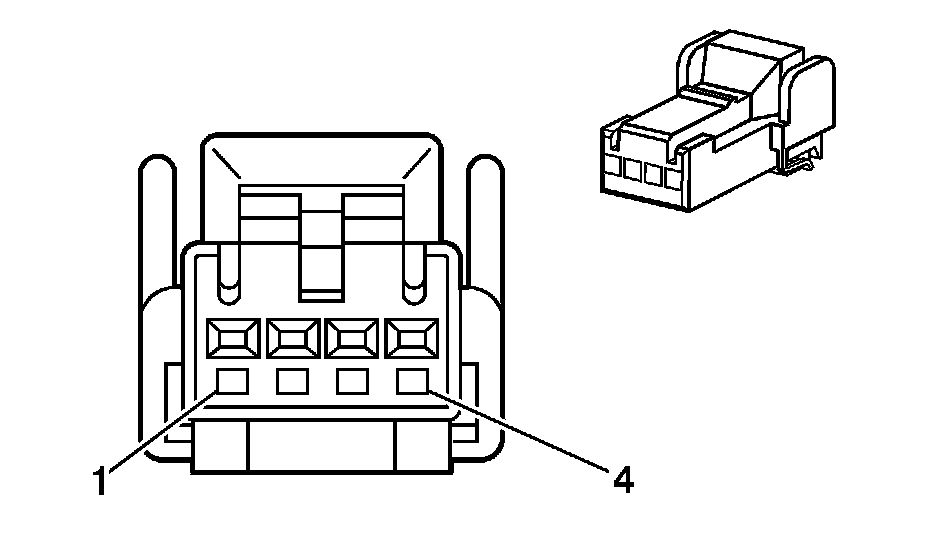

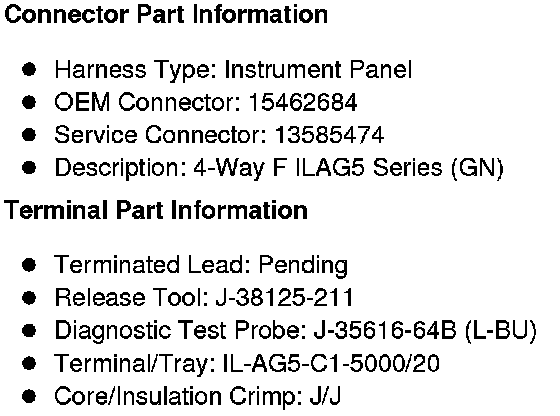

Component Connector End Views

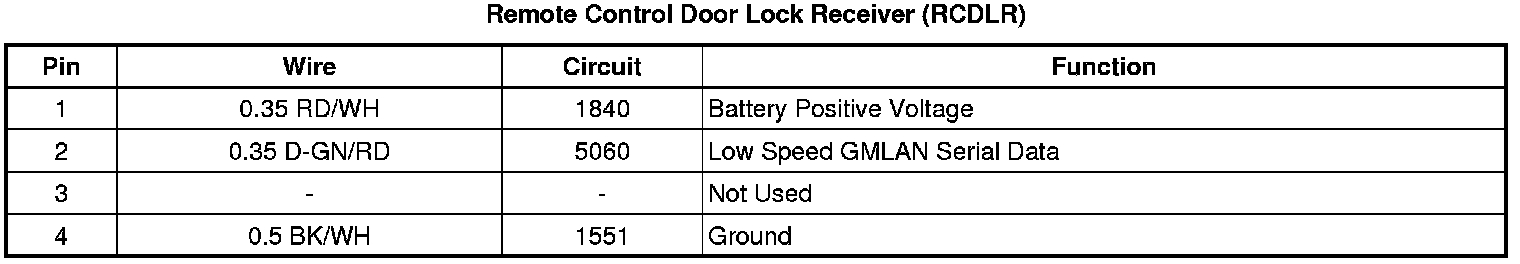

Remote Control Door Lock Receiver (RCDLR)
